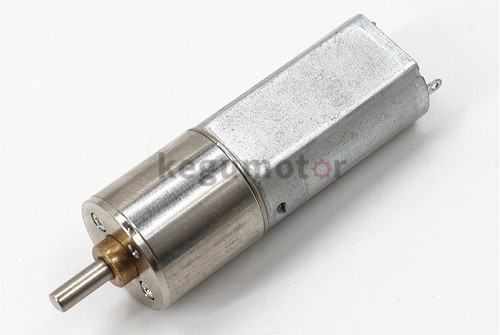

Product Type: DC Brushed Motor
Product model: KG-16A050
Rated voltage: 3-24 (V)
Rated speed: 5-2500 (RPM)
Rated torque: 0.005-0.4 (NM)
Rated current: 0.1-0.5 (A)
Rated power: 0.1-4 (W)
Efficiency: 80 (%)
Dimensions: φ16 (mm)
Application:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike LockGear ratio and length L of gearbox
Number of stages |
3 |
4 |
5 |
6 |
7 |
|
Gear ratio |
11 |
24 |
58 |
120 |
360 |
|
16.7 |
28.8 |
72 |
200 |
500 |
||
|
33.3 |
83.3 |
250 |
600 |
||
|
37.5 |
86.4 |
300 |
750 |
||
|
43.2 |
100 |
450 |
900 |
||
|
50 |
150 |
|
1350 |
||

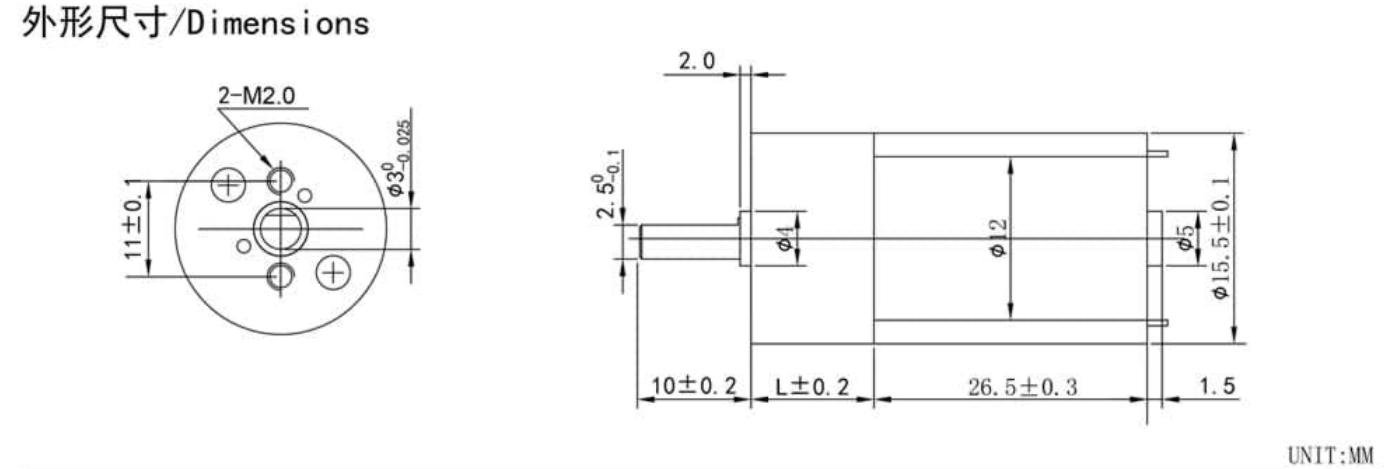

Length of gearbox L(mm) |
11.3 |
12.8 |
14.3 |
16.5 |
18 |
SPECIFICATIONS:
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
KG-16A050-11 |
12 |
1050 |
0.07 |
850 |
0.17 |
0.007 |
3.1 |
0.034 |
0.6 |
KG-16A050-33.3 |
12 |
350 |
0.05 |
290 |
0.17 |
0.014 |
0.45 |
0.098 |
0.7 |
KG-16A050-50 |
12 |
230 |
0.05 |
180 |
0.17 |
0.023 |
0.45 |
0.147 |
0.7 |
KG-16A050-72 |
3 |
208 |
0.24 |
170 |
0.52 |
0.018 |
0.35 |
0.09 |
1.6 |
KG-16A050-100 |
12 |
110 |
0.05 |
85 |
0.12 |
0.047 |
0.42 |
0.245 |
0.4 |
KG-16A050-150 |
24 |
100 |
0.06 |
80 |
0.15 |
0.013 |
1.25 |
0.4 |
0.5 |
KG-16A050-200 |
6 |
60 |
0.08 |
46 |
0.29 |
0.088 |
0.42 |
0.4 |
0.9 |
KG-16A050-250 |
12 |
32 |
0.05 |
25 |
0.12 |
0.147 |
0.38 |
0.4 |
0.4 |
KG-16A050-450 |
6 |
20 |
0.06 |
16 |
0.2 |
0.176 |
0.3 |
0.4 |
0.8 |
KG-16A050-600 |
6 |
13.5 |
0.07 |
11 |
0.17 |
0.24 |
0.28 |
0.4 |
0.6 |
KG-16A050-750 |
6 |
12 |
0.06 |
10 |
0.2 |
0.24 |
0.28 |
0.4 |
0.8 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
