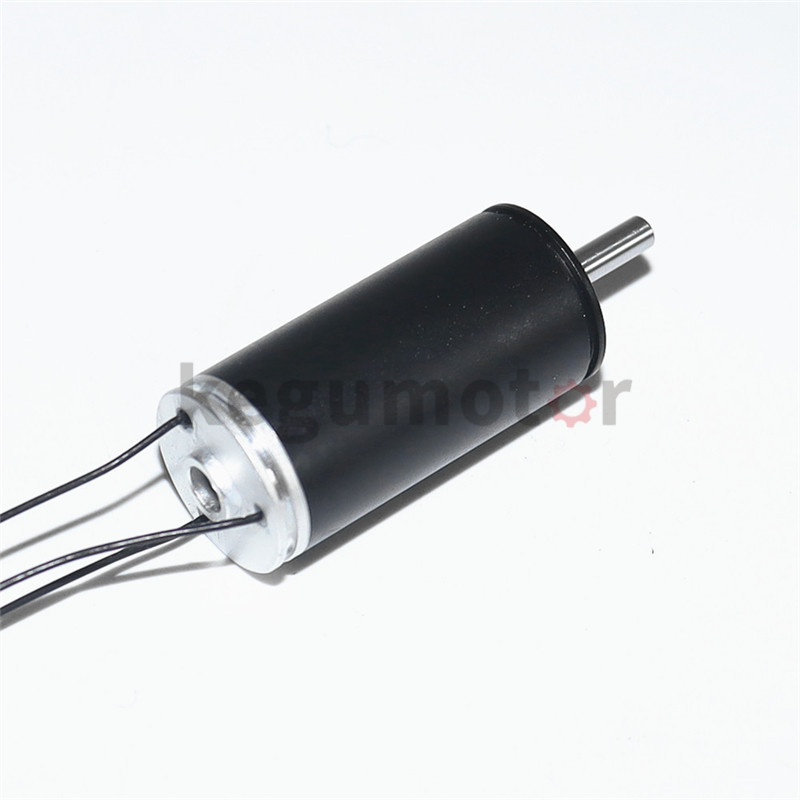

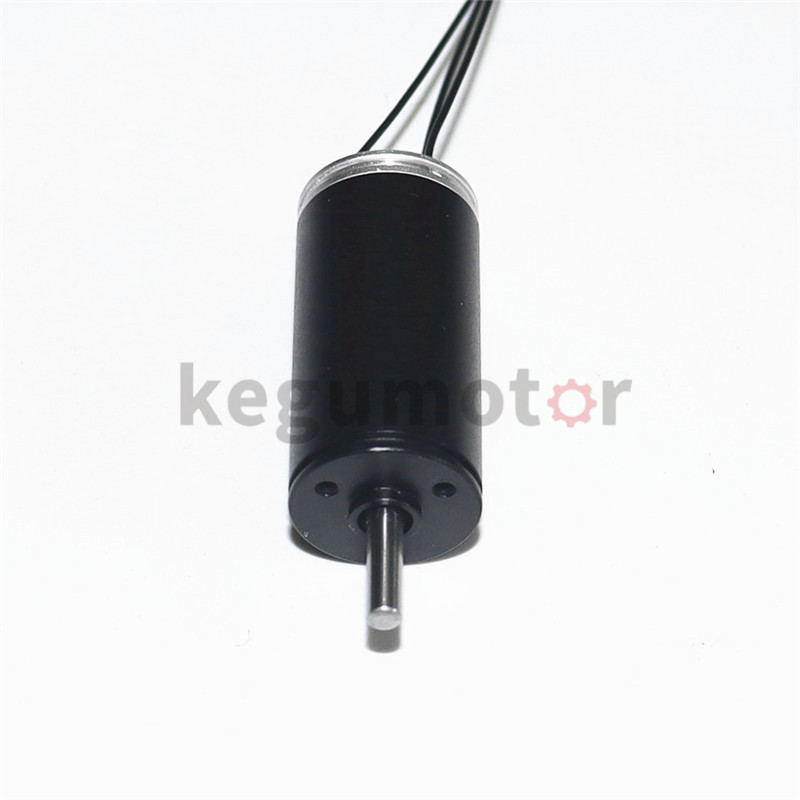

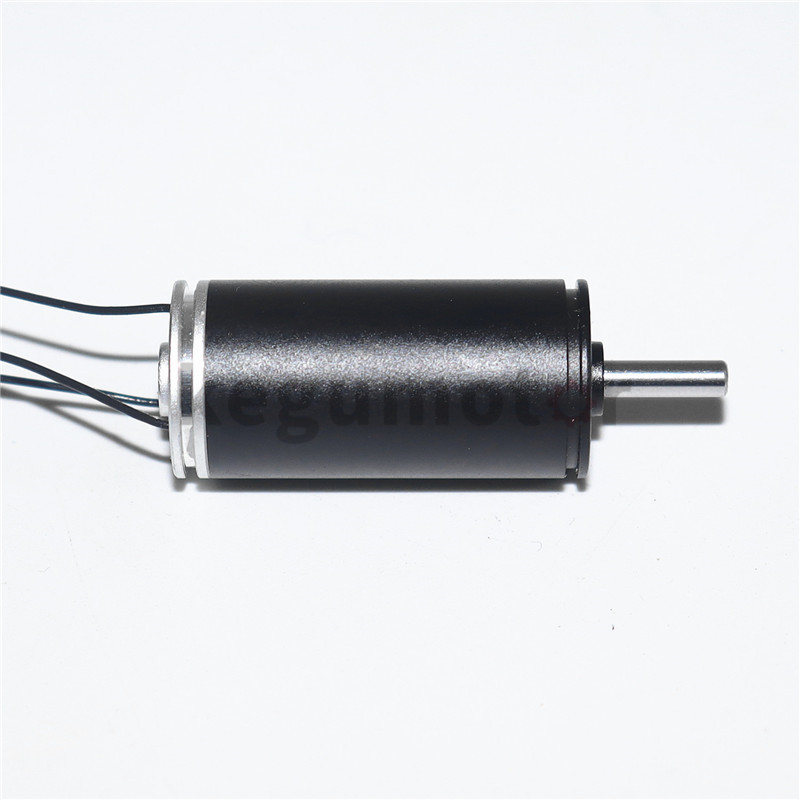

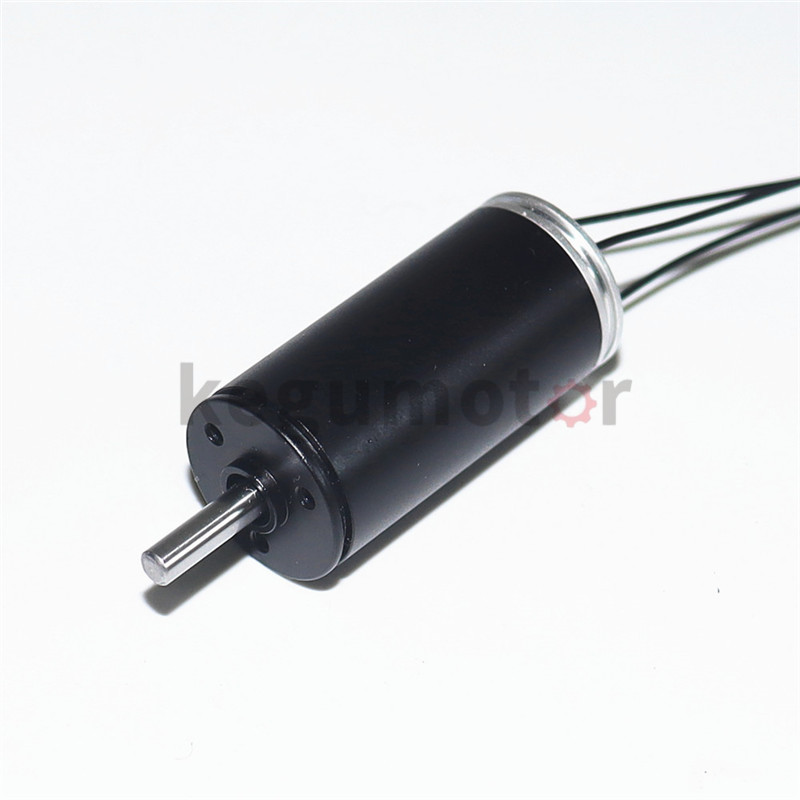

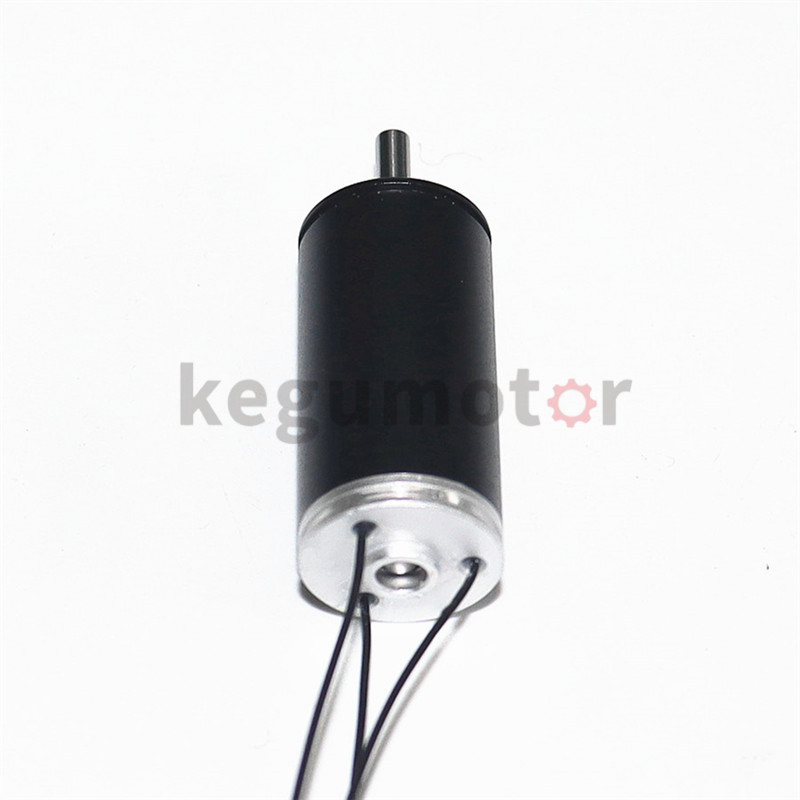

16mm Permanent Magnet Brushless DC Motor – 33mm Type Model-BLDC-1633

12V DC 16mm Diameter 33mm Length Brushless Coreless DC Motor Model 1633

Title: 1633RB 16MM RC Servo Motor 16mm Brushless Coreless Electric Motor Slotless for Robot Radio Control 7.4V 12V

1.Certification: ISO9001, ROHS,etc.
2.Size: Dia 16 * L 33 mm
3.Rated Voltage: 6.0-24 V
4.No load speed : 7890-34570 rpm
5.No load current: 120-220 mA
6.Stall torque: 10.3-22.2 mNm

7. Application: Robots, RC servo motors, Small Injection Pump, etc.

Induction of the High Torque 1633RB Brushless Coreless DC Motor

This type of 1633RB series Brushless Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

Feature and Application of High Torque 1633 Series Brushless Coreless DC Motor

This 1633RB 16MM Series brushless coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

Small vibration offering the best tattoo experience for customer.

Reliable and stable with long lifetime.

100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

The perfect substitute for European motors which can save lots of time and cost for our customer.

80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.

Take the market with technology and products
Deeply cultivating the industry, through years of hard work and accumulation, we have all kinds of coreless dc motor, which can be quickly mass-produced, and we have obtained a number of motor appearance patents and dozens of utility model patents. Become the domestic manufacturer with the largest shipment of large coreless motors above 4mm, the most complete model, the fastest delivery speed, and the most cost-effective manufacturer.
