Ø 28mm Micro BLDC Brushless DC Motor

  • BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor
  • BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor
  • BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor
  • BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor
  • BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor
BL2847 BL2847I B2847M 28mm inner rotor brushless dc motorBL2847 BL2847I B2847M 28mm inner rotor brushless dc motorBL2847 BL2847I B2847M 28mm inner rotor brushless dc motorBL2847 BL2847I B2847M 28mm inner rotor brushless dc motorBL2847 BL2847I B2847M 28mm inner rotor brushless dc motor

BL2847 BL2847I B2847M 28mm inner rotor brushless dc motor

  • Model: BL2847i BL2847 B2847M
  • OD: 28mm Body Length: 47mm
  • Voltage: 6~26V
  • Product description:BL2847i BL2847 B2847M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback s
  • Product description: BL2847 Brushless Motor|Kegu motor, BL2847I, B2847M,BL2847 Motor, BL2847 inner rotor,,Inbuilt controller with hall-effect sensor,Controller with hall sensor,28mm dc brushless motor, 28mm BLDC motor,BL
  • INQUIRY

BL2847I BL2847 B2847M OD Diameter 28mm Small inner rotor Brushless DC BLDC motor

bl2847i b2847m 28MM brushless motor

Specifications:
Size: Ø28.0* 47.0mm
Built-in driver (built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

OD 28mm inner rotor small bldc brushless dc motor has a family of BL2838, BL2847,BL2867 models

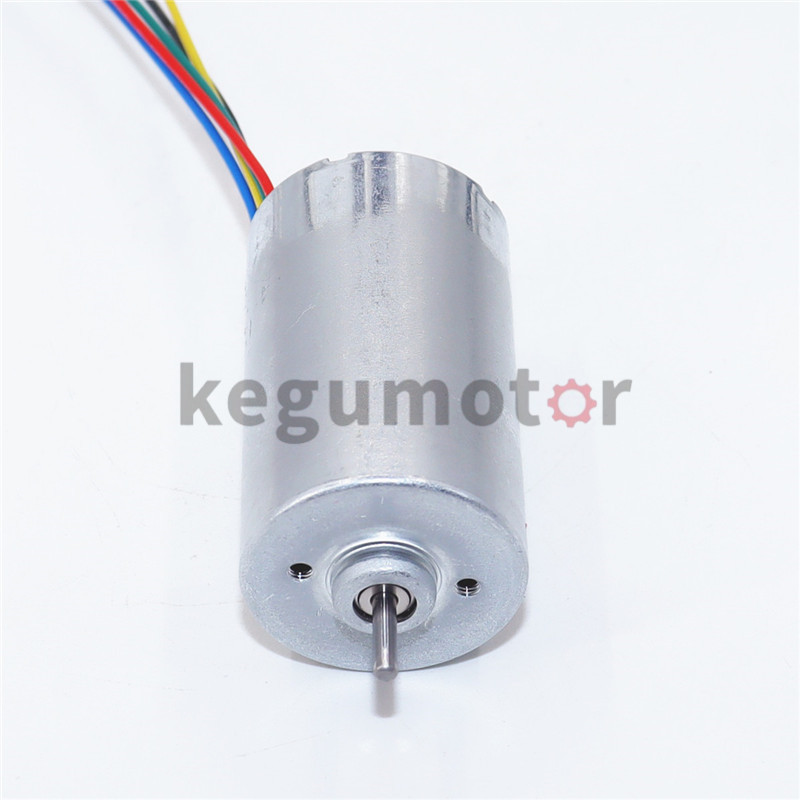

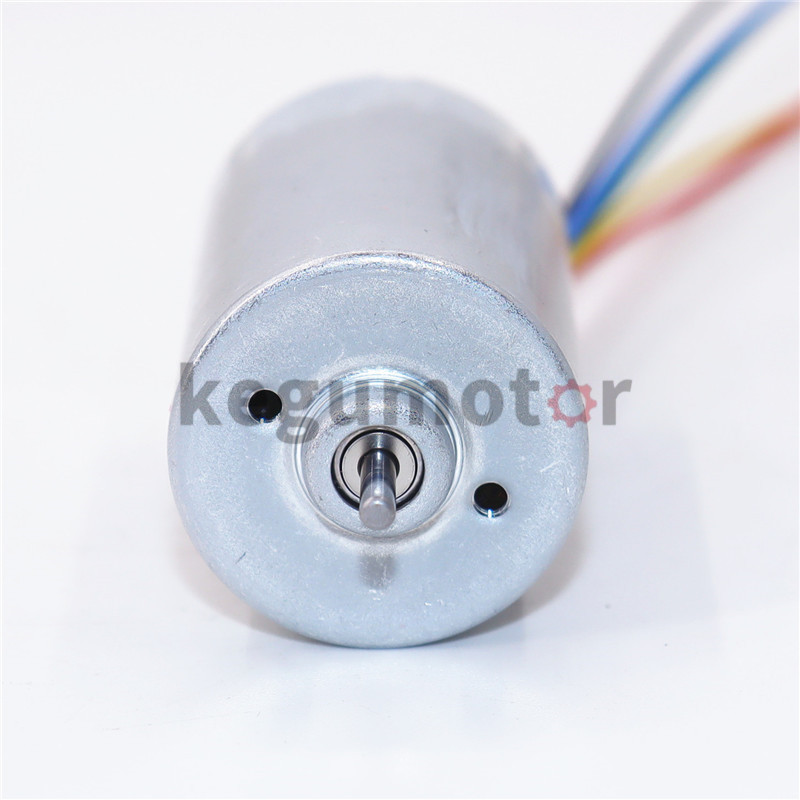

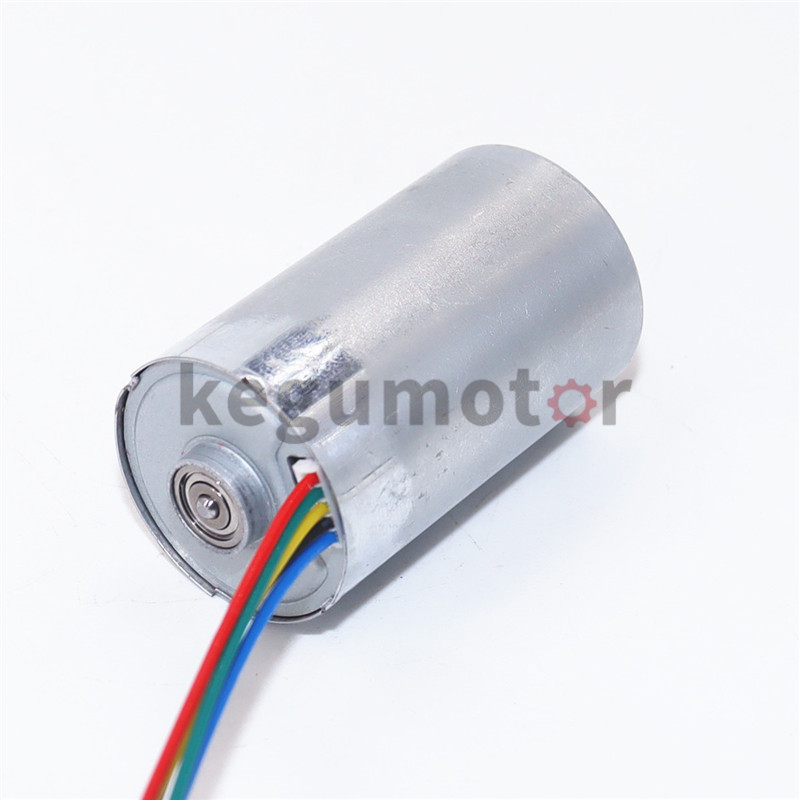

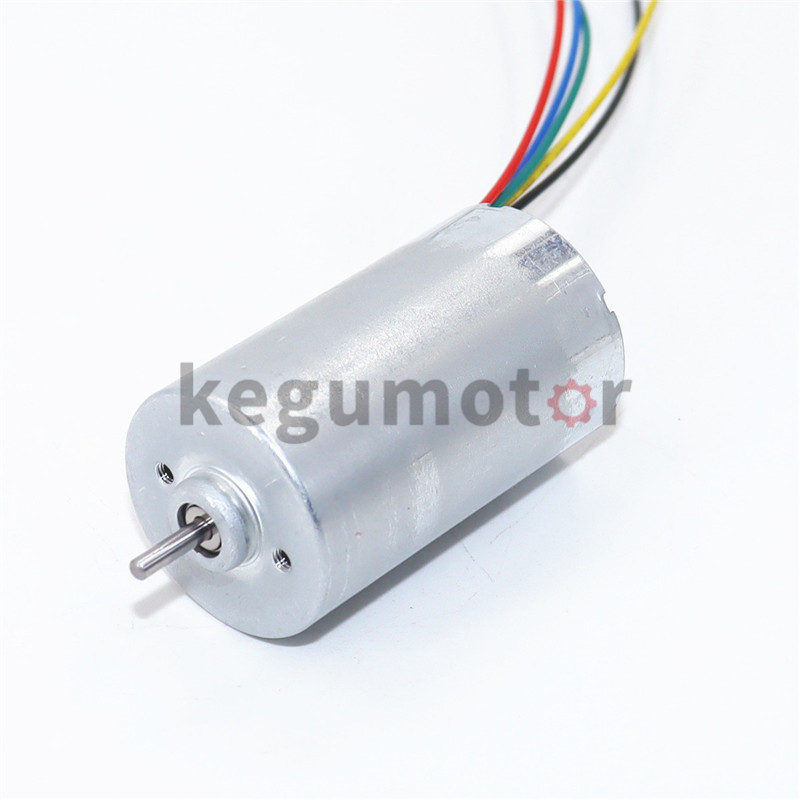

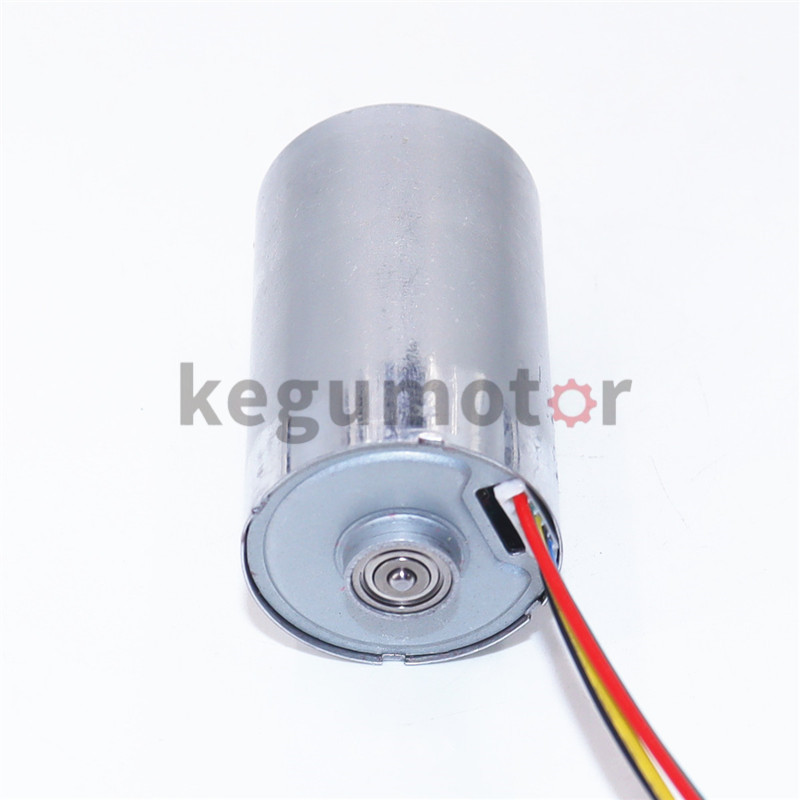

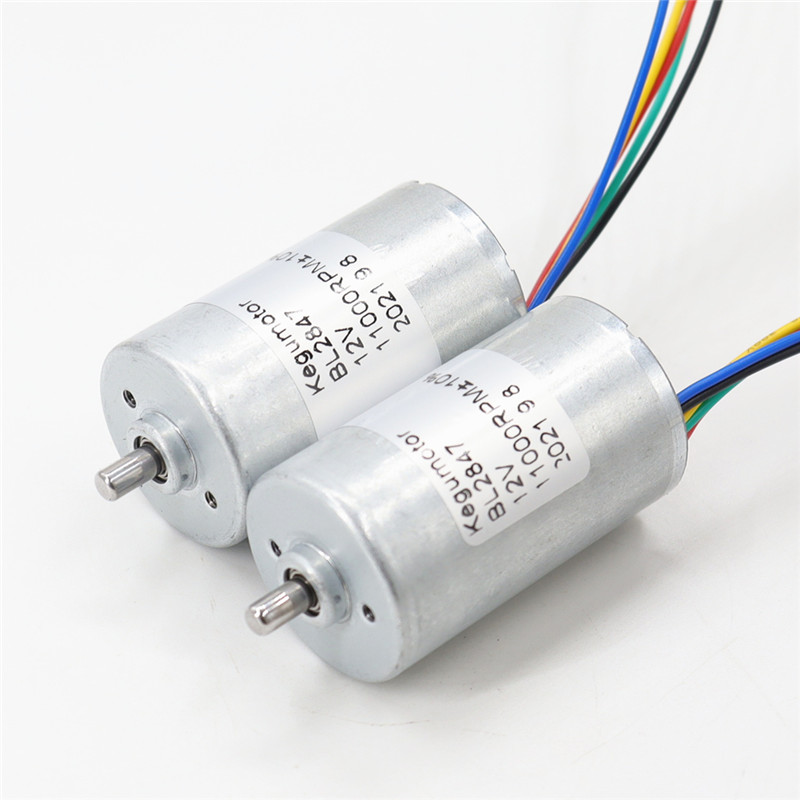

pic of BL2847i B2847M bldc motor
BL2847 Output Power: 1W~30W Weight: 90g (Approx.)
Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL2847i-V01 6~12 12 7170 0.17 122.2 6095 0.903 7.64 814.8 5.059
BL2847i-V02 8~26 18 10833 0.20 147.9 9100 1.087 13.81 924.3 5.746
BL2847i-V03 8~26 24 12370 0.21 173.6 10391 1.113 18.5 1085.1 5.852

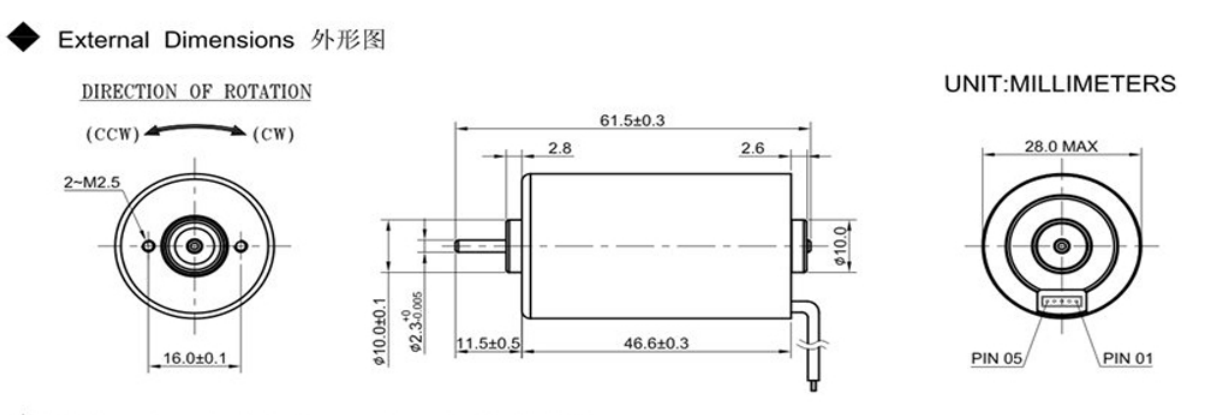

BL2847I BL2847 B2847M Motor drawing:

BL2847I

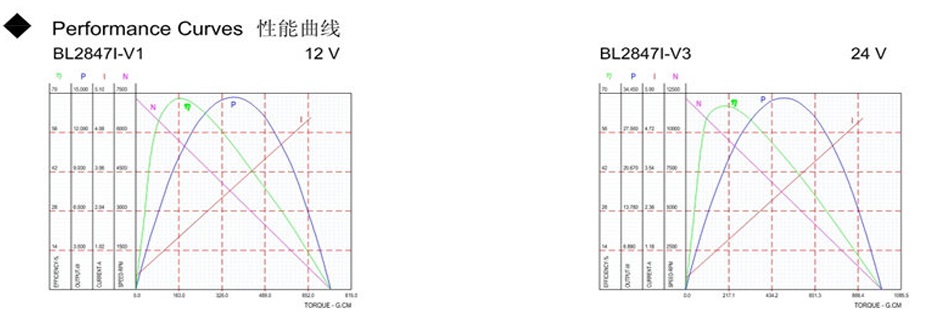

BL2847-V1                       12V BL2847-V3                        24V
BL2847


Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized.
