Ø 10mm Micro DC Gear Motor

  • KG-10FM20 10mm metal gear motor
  • KG-10FM20 10mm metal gear motor
  • KG-10FM20 10mm metal gear motor
  • KG-10FM20 10mm metal gear motor
KG-10FM20 10mm metal gear motorKG-10FM20 10mm metal gear motorKG-10FM20 10mm metal gear motorKG-10FM20 10mm metal gear motor

KG-10FM20 10mm metal gear motor

  • Model:KG-10FM20 10mm metal gear motor
  • Gearbox:10mm metal gearbox
  • Dia:10mm Motor:KFF-M20 dc motor
  • 10mm metal gearbox, Kegu motor
  • Product description: 10mm dc gear motor,10mm metal gearbox,10mm gear motor,10mm gearbox,10mm spur gearbox,10mm dc gear motor with encoder,spur metal gear box,micro metal gearbox,gear motor,Kegu motor
  • INQUIRY

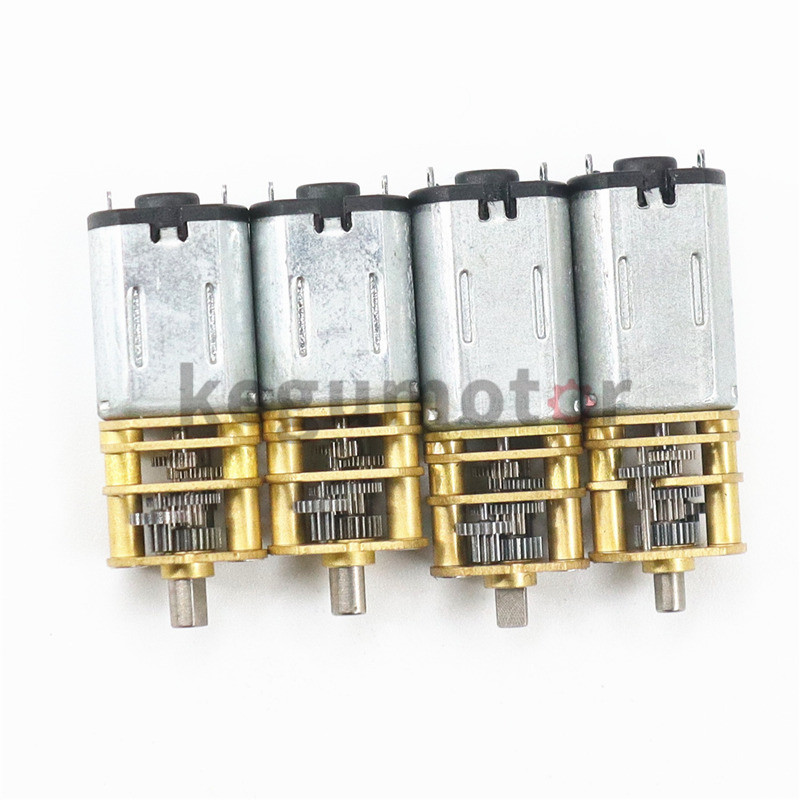

GM10-M20VA10mm small metal spur gear dc motor
Model:KG-10FM20 GM10-M20
MOTOR: FF-M20
Gear: metal spur gear
10mm Gearbox educer plus M10 and M20 motor
10mmgear motor provide 0.1Kg.cm torque and more reliable
Brand: Kegu Motor
Product description:GM10-M1010mm metal spur gear dc motor small dc motor, 10mm gear dc motor, small dc motor, smart lock dc gear motor
Application:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: 3Doodler ,Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

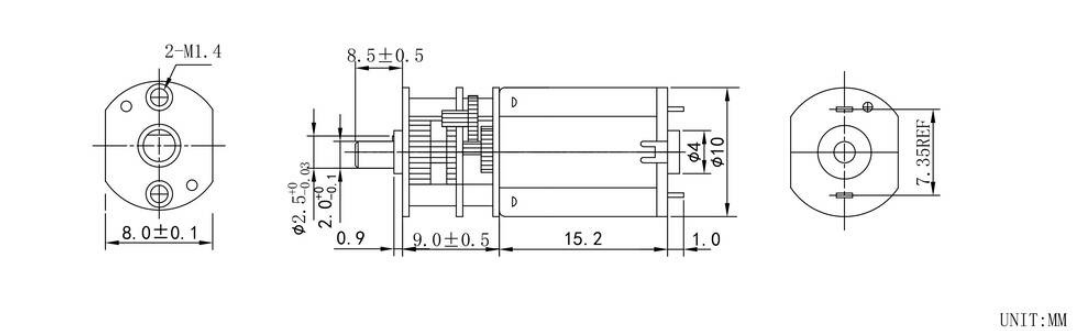

Drawing of 10mm gear motor


Motor Technical Data

Motor Model Rated Voltage No-load Speed No-load Current Rated speed Rated torque Rated current Output power Stall Torque Stall Current
VDC r/min mA rpm g.cm mA W g.cm mA
KFF-M20VA-09120 3.0 15700 40 13500 1.0 100 0.14 7.0 0.50

Gear MotorTechnical Data

Gearbox with motor:GM10-M20-09120
Reduction ratio 100 250
Length mm 9 9
No-load speed  rpm 150 60
Rated speed rpm 130 50
Rated torque  Kg.cm 0.06 0.15
Max.momentary tolerance torque   kg.cm 0.3 0.3
Gearbox with motor:GM10-M20-10100
Reduction ratio 100 250
Length mm 9 9
No-load speed  rpm 160 65
Rated speed rpm 130 50
Rated torque  Kg.cm 0.1 0.25
Max.momentary tolerance torque   kg.cm 0.3 0.3
Gearbox with motor: GM10-M20-07170
Reduction ratio 10 250
Length mm 9 9
No-load speed rpm 80 30
Rated speed rpm 55 22
Rated torque kg.cm 0.06 0.15
Max.momentary tolerance torque   kg.cm 0.3 0.3

Notice:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
