Ø 12mm Micro DC Gear Motor

  • KG-12FN20 12mm metal gear motor
  • KG-12FN20 12mm metal gear motor
  • KG-12FN20 12mm metal gear motor
  • KG-12FN20 12mm metal gear motor
  • KG-12FN20 12mm metal gear motor
KG-12FN20 12mm metal gear motorKG-12FN20 12mm metal gear motorKG-12FN20 12mm metal gear motorKG-12FN20 12mm metal gear motorKG-12FN20 12mm metal gear motor

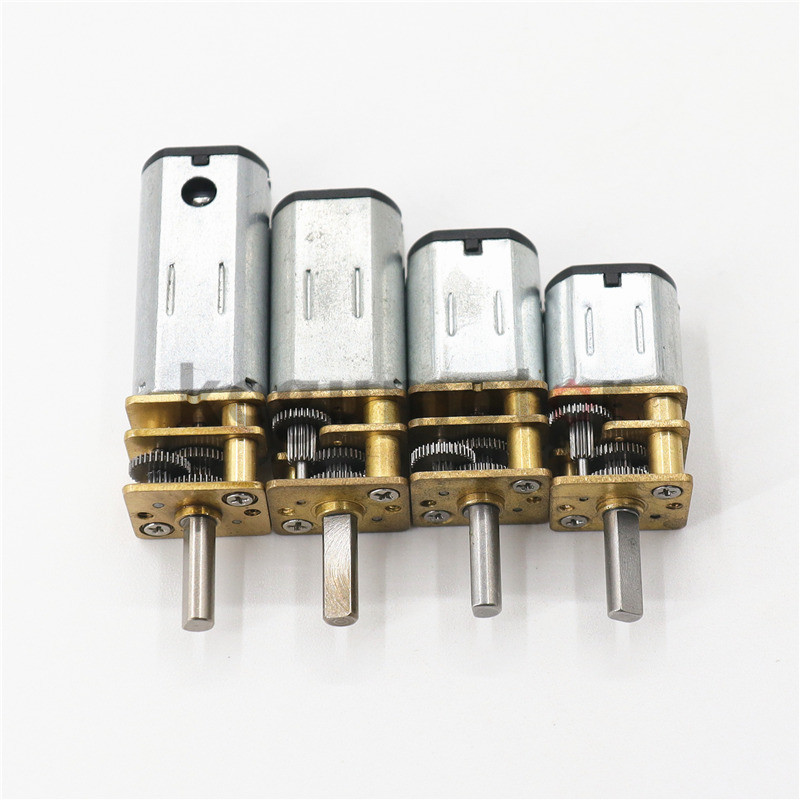

KG-12FN20 12mm metal gear motor

  • Model: KG-12FN20 12mm metal gear motor
  • Gearbox:12mm metal gearbox
  • Dia:12mm Motor:KFF-N20 dc motor
  • 12mm metal gearbox, Kegu motor
  • Product description: 12mm dc gear motor,GM12-N20VA,GM12-N20,12FN20,12mm metal gearbox,GM12-N20,12mm gear motor,12mm gearbox,12mm spur gearbox,12mm dc gear motor with encoder,spur metal gear box,micro metal gearbox,gear mo
  • INQUIRY

Model:KG-12FN20 GM12-N20VA

N20 12mm gear motor

Diameter:12mm
Length:24,27mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.12mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match encoder, 3ppr

5.Reduction Ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、422、1000

    Aplication:

    Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

    Household Appliances: Hair Curler

    Financial Medical Equipment: Projector

    Industrial Equipment: Air Switch

    Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

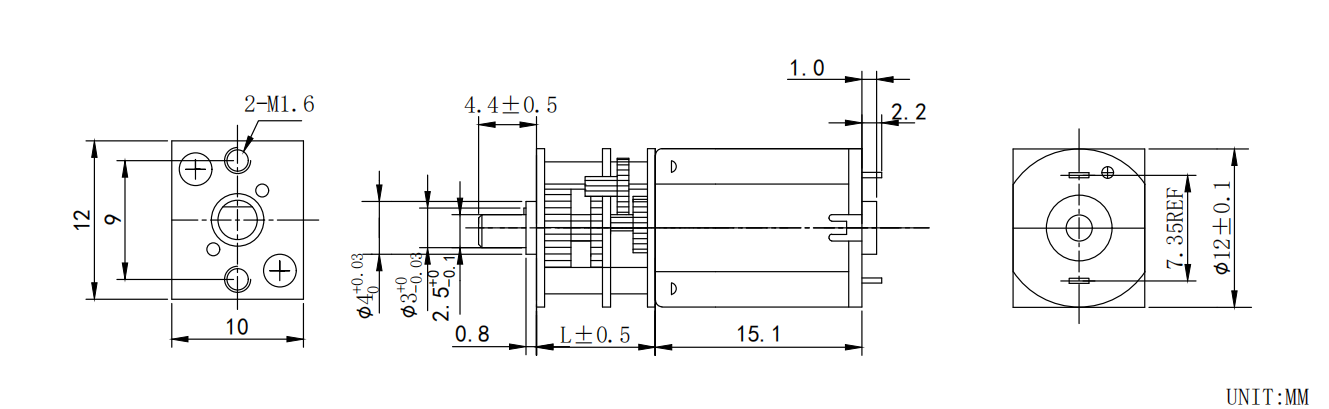

Drawing of 12mm gear motor


12MM Metal Gearbox Datasheet:

Number of stages

2

4

5

7

Reduction ratio

3,5,10

17,20,30,36,50,63,100

110,150,210,250,298,380,422

1000

Gearbox length “L”mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%


12MM Metal Gearmotor Datasheet:

Motor model

Rated   Volt.

No load

At Max Eff Load

Stall

Current

Speed

Current

Speed

Torque

Output  power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

KG-12FN20-100-S1

 3.0

≤50

100

≤185

80

120

0.2

≥480

≥350

KG-12FN20-100-S2

 3.0

≤80

150

≤280

124

180

0.4

≥720

≥520

KG-12FN20-100-S3

 3.0

≤110

200

≤370

155

240

0.6

≥960

≥700

KG-12FN20-100-S4

 6.0

≤25

100

≤95

80

120

0.2

≥480

≥160

KG-12FN20-100-S5

 6.0

≤40

150

≤145

124

180

0.4

≥720

≥250

KG-12FN20-100-S6

 6.0

≤60

200

≤190

155

240

0.6

≥960

≥320

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

A small-sized DC gearmotor is an attractive choice for your application when you are looking for an impressive torque or low-speed rating within strict size requirements. In these applications, you can choose spur geared motors without hesitation as they are characterised by compact size, higher efficiency, and low noise level. In particular, consider the following factors when choosing a geared motor smaller than 12mm diameter for your application.

Shen Zhen Ke Gu Technology Co.,ltd is a ISO 9001 designer and manufacturer of DC gearmotors with a specialism in sub 12mm diameter motors can be customized.

12mm Micro DC Gearmotor N20 Type , N20 gear motor is excellent for speed control, it is widely used in hotel locks, intelligent locks, equipment, etc.
