Ø 10mm plastic planetary gear motor

  • KG-10PM10-G 10mm plastic planetary gear motor
  • KG-10PM10-G 10mm plastic planetary gear motor
  • KG-10PM10-G 10mm plastic planetary gear motor
  • KG-10PM10-G 10mm plastic planetary gear motor
  • KG-10PM10-G 10mm plastic planetary gear motor
KG-10PM10-G 10mm plastic planetary gear motorKG-10PM10-G 10mm plastic planetary gear motorKG-10PM10-G 10mm plastic planetary gear motorKG-10PM10-G 10mm plastic planetary gear motorKG-10PM10-G 10mm plastic planetary gear motor

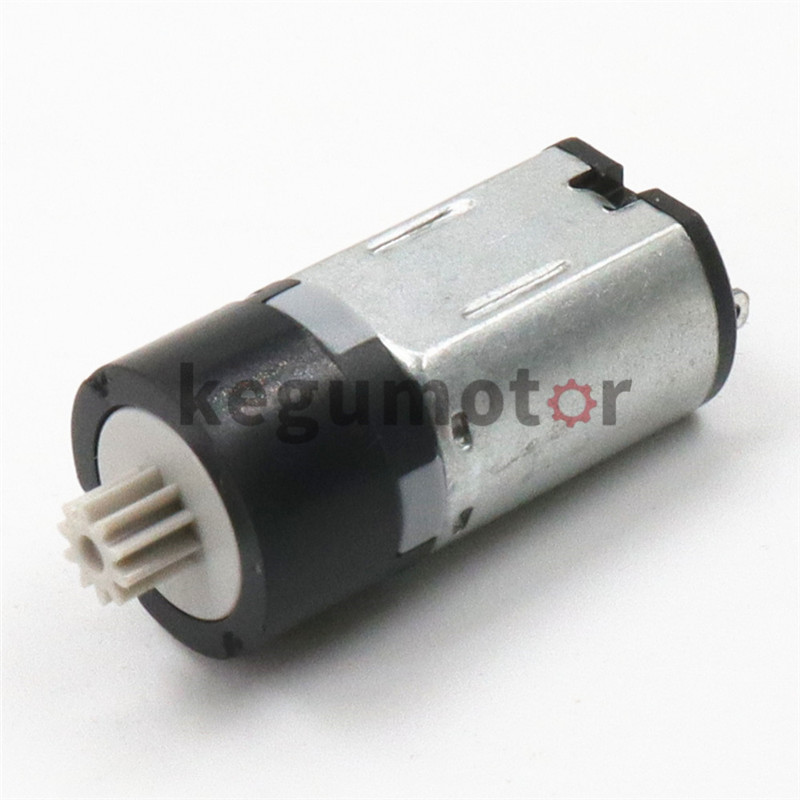

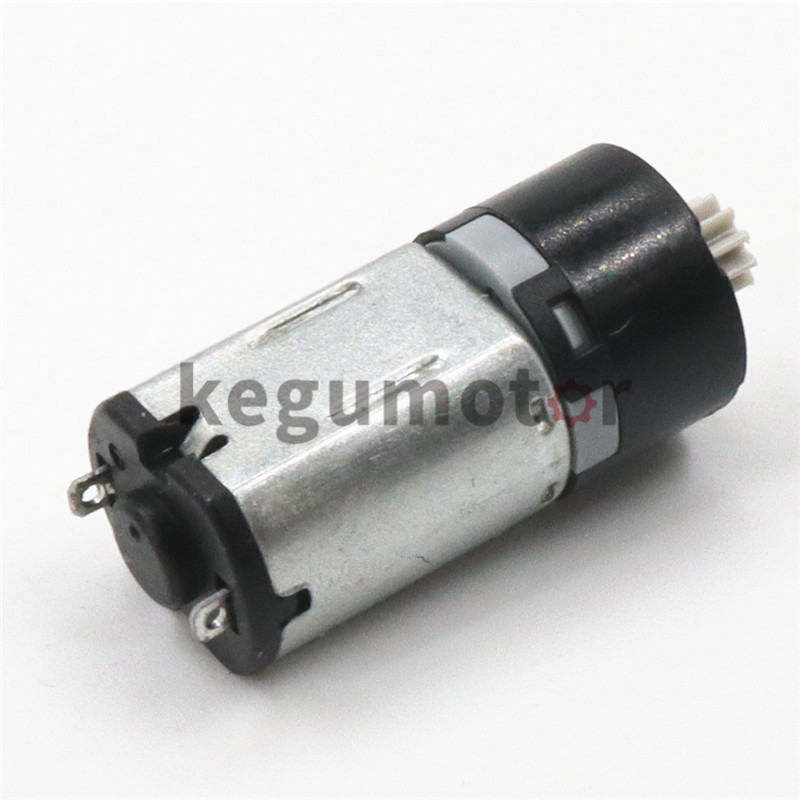

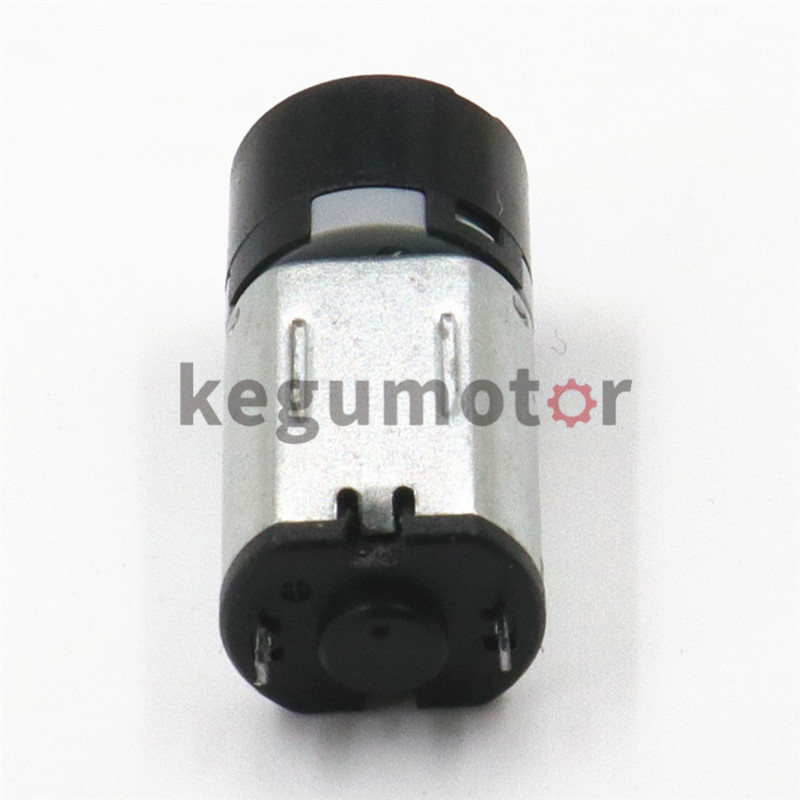

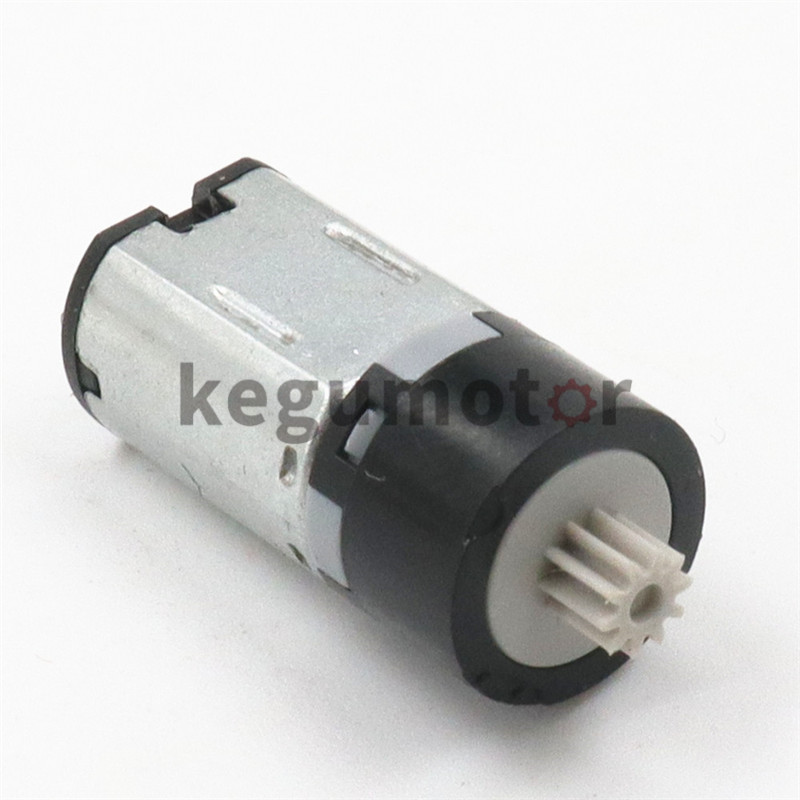

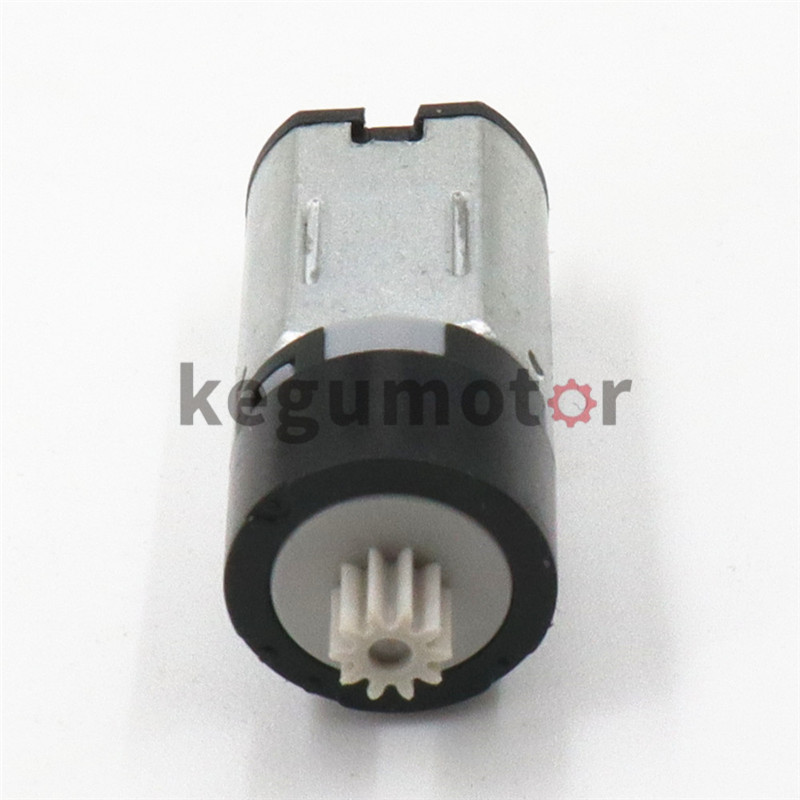

KG-10PM10-G 10mm plastic planetary gear motor

  • Model: KG-10PM10-G 10mm plastic planetary gear motor
  • Gearbox:10mm planetary gearbox
  • Voltage: 1.5~12V
  • Brand:Kegu Motor
  • Product description: Kegu Motor company produces and sells 10MM planetary gear motor and brushless motor planetary gearbox products,Reduction ratio:1/171;. Appreance dimension: 10mm diameter,19.5mm body length. Geared Mot
  • INQUIRY

mini 10mm planetary reduction gearbox motor

10mm plastic gear motor

1. Rated Voltage: 3.0-6V

2. No Load Speed: 40-150 rpm
3. No Load Current: 40 mA
4. Rated Load Speed: 35-130 rpm

5. Rated Load Current: 100 mA

10mm Planetar Gearmotors with M10 M20 gear motor, DC 3V-6V Mini 10MM Planetary Gear Reducer Motor Coreless gearmotor For Robot.

Whenever you need accurately controlled motion, you should consider the 10mm geared motor. Its planetary gearbox with superb quality

Application:

Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Household Appliances: Hair Curler

Financial Medical Equipment: 3Doodler ,Projector

Industrial Equipment: Air Switch

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

Drawing of 10mm plastic planetary gearbox

10mm planetary gear motor

10MM Planetary Gearmotor Data Sheet :

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min mA r/min mA mN.m g.cm w mN.m g.cm mA
KG-10PM10-G-01 2.0-4.0 3.0 50 35 38 65

6.12

60 0.1 20.4 200 160
KG-10PM10-G-02 2.0-4.0 3.0 120 40 89 110

2.94

30 0.2 17.6 180 350
KG-10PM10-G-03 1.0-3.0 1.5 45 32 40 70

8.67

85 0.2 17.37 165 160
KG-10PM10-G-04
2.0-4.0 3.0 65 35 45 70 5.1 50 0.1 25.2 250 180
KG-10PM10-G-05
1.0-3.0
3.0 100 45 75 100 2.85 28 0.1 16.3 160 330
KG-10PM10-G-06
1.5-4.5 4.5 122 90 100 350 7.6 75 0.2 20.3 200 1100

Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

We Provide Our Customers With High Precision 10MM Planetary Gearmotors,Voltage : 1~12V.

Reduction ratio:1/171;. Appreance dimension: 10mm diameter,19.5mm body length. Geared Motor Specifications can be provided.
