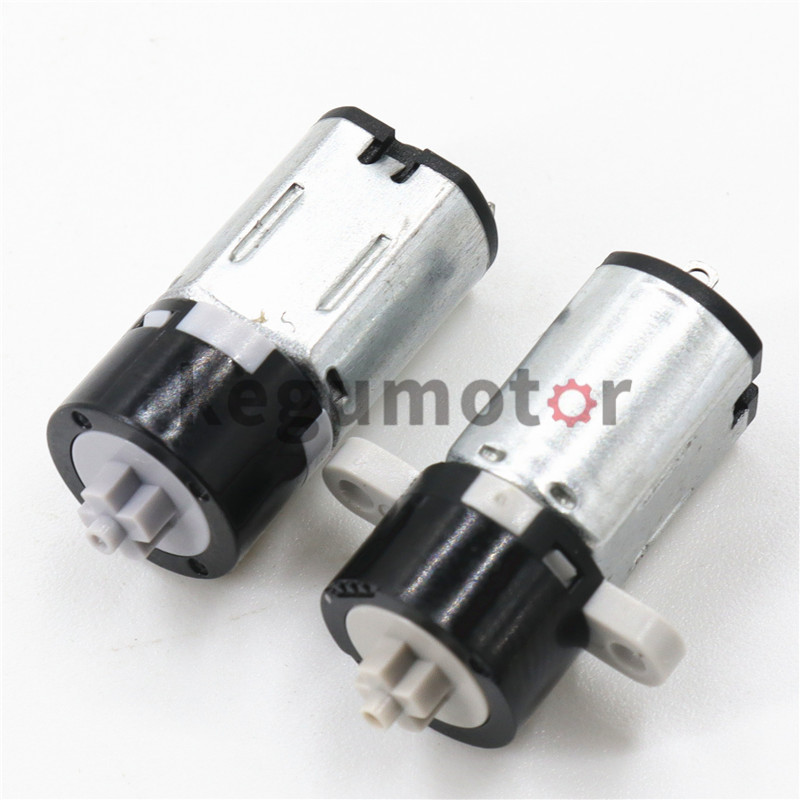

Ø 10mm plastic planetary gear motor

  • KG-10PM10-L 10mm 2.5v plastic gear motor
  • KG-10PM10-L 10mm 2.5v plastic gear motor
  • KG-10PM10-L 10mm 2.5v plastic gear motor
  • KG-10PM10-L 10mm 2.5v plastic gear motor
  • KG-10PM10-L 10mm 2.5v plastic gear motor
KG-10PM10-L 10mm 2.5v plastic gear motorKG-10PM10-L 10mm 2.5v plastic gear motorKG-10PM10-L 10mm 2.5v plastic gear motorKG-10PM10-L 10mm 2.5v plastic gear motorKG-10PM10-L 10mm 2.5v plastic gear motor

KG-10PM10-L 10mm 2.5v plastic gear motor

  • Model: KG-10PM10-L 10mm 2.5v plastic gear motor
  • Gearbox:10mm plastic planetary gearbox
  • Voltage: 1.5~12V
  • Brand:Kegu Motor
  • Product description: Plastic standard planetary gearbox is composed of 1-4 grade POM plastic planetary gear structure, with low transmission noise, a little higher durability, diameter from 6-32mm, transmission ratio from
  • INQUIRY

mini 10mm planetary reduction gearbox motor,mini M10 Motor Micro 10mm Planetary Gear Motor Slow Speed Reducer DC 2.5V-5V

10mm gear motor 3v

Specification:

Planetary gearbox outer diameter: 10 MM

Motor size: 8 *10*12.8 MM (M10 motor)

Geared motor height: 19.8 MM (motor + gear box)

Output shaft: Gear with an outer diameter of 5.35 MM (11 teeth)

Reduction ratio: 1:171

Weight: 4g

1. Rated Voltage: 3.0-6V

2. No Load Speed: 40-150 rpm
3. No Load Current: 40 mA
4. Rated Load Speed: 35-130 rpm

5. Rated Load Current: 100 mA


Application:

Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Household Appliances: Hair Curler

Financial Medical Equipment: 3Doodler ,Projector

Industrial Equipment: Air Switch

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

Drawing of 10mm plastic gearbox

KG-10PM10-L 10mm planetary gear motor


10MM Planetary Gearmotor Data Sheet :

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min mA r/min mA mN.m g.cm w mN.m g.cm mA
KG-10PM10-L-01 2.0-4.0 3.0 50 35 38 65

6.12

60 0.1 20.4 200 160
KG-10PM10-L-02 2.0-4.0 3.0 120 40 89 110

2.94

30 0.2 17.6 180 350
KG-10PM10-L-03 1.0-3.0 1.5 45 32 40 70

8.67

85 0.2 17.37 165 160
KG-10PM10-L-04
2.0-4.0 3.0 65 35 45 70 5.1 50 0.1 25.2 250 180
KG-10PM10-L-05
1.0-3.0
3.0 100 45 75 100 2.85 28 0.1 16.3 160 330
KG-10PM10-L-06
1.5-4.5 4.5 122 90 100 350 7.6 75 0.2 20.3 200 1100

Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

Get powerful 10mm dc planetary gear motor for your electricals at kegumotor.com.

Find a wide range of 10mm dc planetary gear motor to suit your your needs from trusted suppliers, at competitive prices.

We can provide Micro planetary gear motor DC3V-5V 68RPM 10mm gear motor for DIY robot arm motor ~ with fast shipping and top-rated customer service.
