Product Type: DC Brushed Motor
Product model: KG-16A030
Rated voltage: 3-24 (V)
Rated speed: 5-2500 (RPM)
Rated torque: 0.005-0.4 (NM)
Rated current: 0.1-0.5 (A)
Rated power: 0.1-4 (W)
Efficiency: 80 (%)
Dimensions: φ16 (mm)
Aplication:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

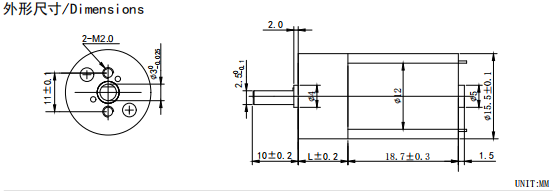

Drawing of 16mm spur gear motor
Gear ratio and length L of gearbox
|
Number of stages |
3 |
4 |
5 |
6 |
7 |
|
|
Gear ratio |
11 |
24 |
58 |
120 |
360 |
|
|
16.7 |
28.8 |
72 |
200 |
500 |
||
|
|
33.3 |
83.3 |
250 |
600 |
||
|
|
37.5 |
86.4 |
300 |
750 |
||
|
|
43.2 |
100 |
450 |
900 |
||
|
|
50 |
150 |
|
1350 |
||
|
Length of gearbox L(mm） |
11.3 |
12.8 |
14.3 |
16.5 |
18 |
|
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-16A030-11 |
12 |
1200 |
0.05 |
815 |
0.14 |
0.005 |
0.42 |
0.015 |
0.3 |
|
KG-16A030-37.5 |
3 |
185 |
0.08 |
160 |
0.17 |
0.006 |
0.1 |
0.004 |
0.45 |
|
KG-16A030-50 |
6 |
250 |
0.08 |
200 |
0.25 |
0.012 |
0.25 |
0.098 |
0.7 |
|
KG-16A030-72 |
5 |
200 |
0.12 |
145 |
0.3 |
0.02 |
0.3 |
0.098 |
0.65 |
|
KG-16A030-100 |
3 |
70 |
0.06 |
52 |
0.17 |
0.029 |
0.16 |
0.078 |
0.45 |
|
KG-16A030-120 |
6 |
120 |
0.1 |
95 |
0.3 |
0.05 |
0.5 |
0.23 |
1.0 |
|
KG-16A030-150 |
6 |
100 |
0.1 |
80 |
0.3 |
0.156 |
1.34 |
0.39 |
2.5 |
|
KG-16A030-200 |
6 |
60 |
0.08 |
45 |
0.25 |
0.054 |
0.25 |
0.29 |
0.7 |
