Ø 13mm Micro DC Gear Motor

  • KG-13A050 13mm metal gear motor
  • KG-13A050 13mm metal gear motor
  • KG-13A050 13mm metal gear motor
  • KG-13A050 13mm metal gear motor
KG-13A050 13mm metal gear motorKG-13A050 13mm metal gear motorKG-13A050 13mm metal gear motorKG-13A050 13mm metal gear motor

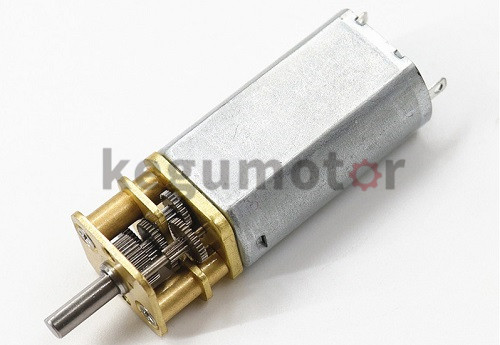

KG-13A050 13mm metal gear motor

  • Model:KG-13A050 13mm metal gear motor
  • Gearbox:13mm metal gearbox
  • Dia:13mm Motor:KFF-050 dc motor
  • 13mm metal gearbox, Kegu motor
  • Product description: 13mm DC Spur Gear Motor,13mm dc gear motor,13mm metal gearbox,GM13-030,13mm gear motor,13mm gearbox,13mm spur gearbox,13mm dc gear motor with encoder,spur metal gear box,micro metal gearbox,gear moto
  • INQUIRY
  • Model: GM13-050
  • Type: Carbon Brushed
  • Gearhead: cubic metal gear
  • Feature: 13mm gear motor
  • Product description:13mm ff 030 Micro Spur Geared DC Motor spur gear dc gear motor dc gearhead motor
  • micro dc gearbox metal gear gear box reducer motor


Drawing of 13mm dc spur gear motor


Gear Box Data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Bearable Maximum Instant Torque
g.cm
11 2 3/1 7/1 10/1 300 600
4 20/1 30/1 35/1 50/1 63/1 86/1 500 1000
5 115/1 150/1 210/1 250/1 360/1 800 1600


Spur Geared Motor Data:

MODEL REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm W g.cm A
GM13-050-150-0374 150/1 2.0~4.0 3 74 0.11 60 0.46 610 0.38 3130 1.9
GM13-050-70-12200 70/1 5.0~12.0 12 200 0.046 160 0.19 420 0.69 2160 0.8
GM13-050-210-0638 210/1 3.0~7.0 6 38 0.09 31 0.37 1400 0.45 7320 1.52
GM13-050-50-06240 50/1 3.0~7.0 6 240 0.07 192 0.3 300 0.59 1520 1.3
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
