small size planetary reduction gearbox motor
1.match dc motor FF-050
2.D type shaft at Ø3*L11.5mm
3.metal gears

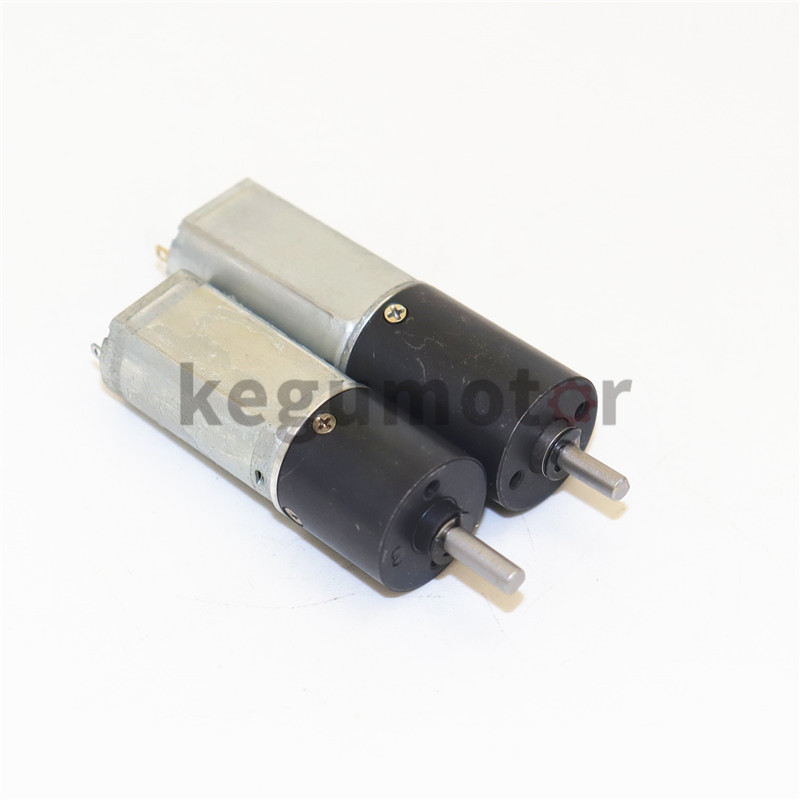

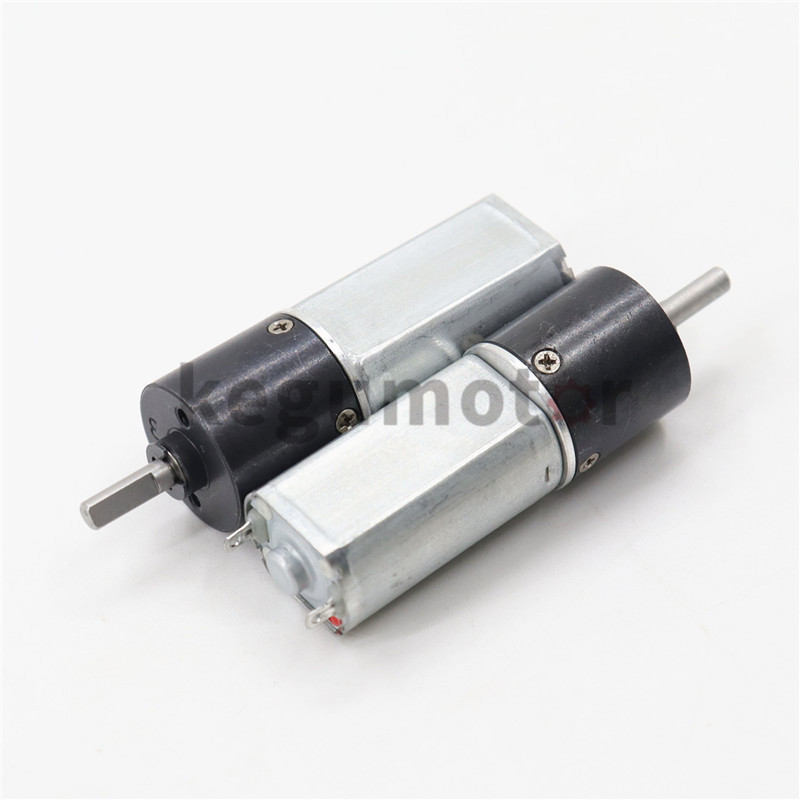

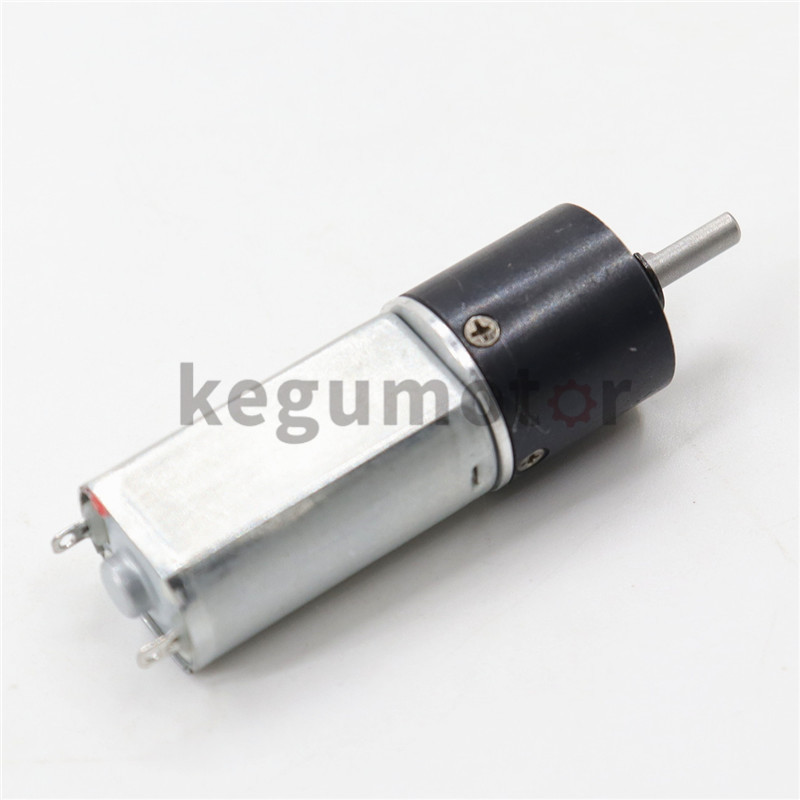

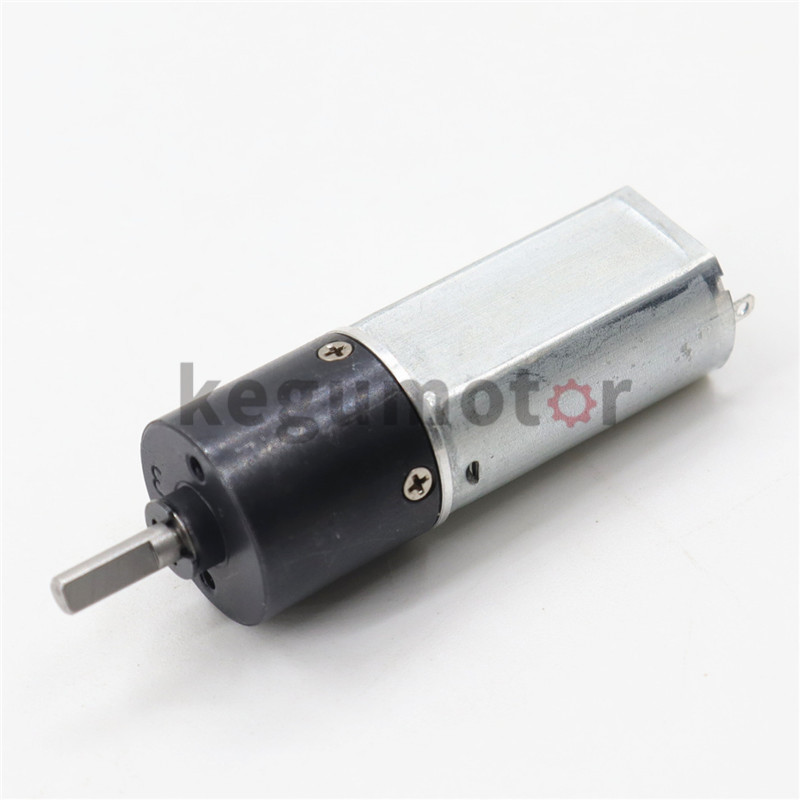

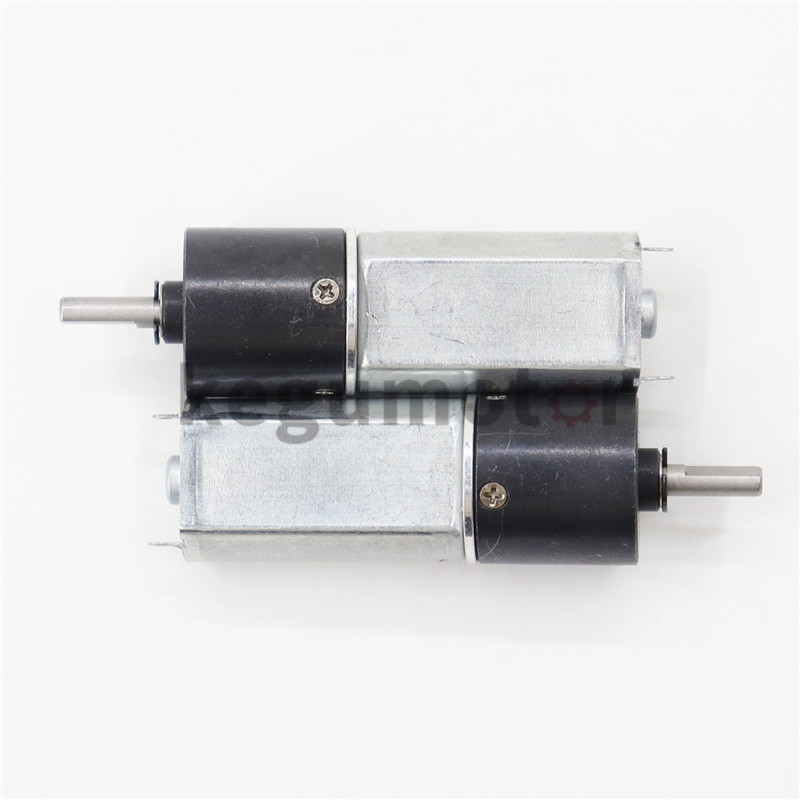

mini 16mm planetary reduction gearbox motor
large torque,long life,low noise
1) Model number: KG-16P050-6V
2) Brand name: Kegu Motor
3) Output power: less than 1.5w
4) Dia Ø16× total length (40.6~55)mm, exclude output shaft length
5) Typical applications: Laminator, Auto-actuator, Micro CNC equipment, Playstation, Air diffuser, Washing Machine, ATM, Vendor machine, Water softener, Safe box, Face tissue,
Robotics, Advertising board, Disinfection cabinet, Water storage tank, Mulch applicator, Move-camera, Remote control toys, Card machine, Hair roller,
Mover machine, Medical equipment, Wind energy equipment, Printer, Stage lighting, Car accessories, Juicer, Press, Currency detector, TV bracket,
Water IC card, Water quality analyzer, Blinds, Massager, Fish tank cleaner, Fingerprint lock

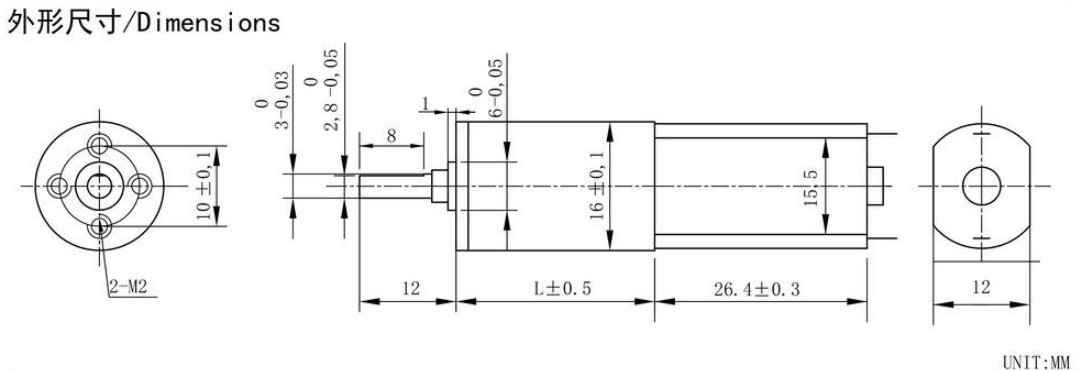

Drawing of 16mm planetary gear motor
Parameter data
The following parameters are for reference only, we can do according to customer's requirements, customization parameters
16MM Planetary Gear Motor,PG16-050
|
MODEL |
VOLTAGE |
NO- LOAD |
AT MAXIMUM EFFICIENCY |
STALL TORQUE |
RATIO |
LENGTH OF GEAR BOX(L) |
MATCH THE MOTOR |
LENGTH OF MOTOR(L1) |
|||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||||||
|
V |
r/min |
A |
r/min |
A |
mN.m |
Kg.cm |
W |
mN.m |
Kg.cm |
A |
|
mm |
|
mm |
|
|
KG-16P050-4 |
6V |
1400 |
0.09 |
1130 |
0,13 |
1.6 |
0.02 |
0.45 |
5.6 |
0.07 |
0.65 |
4 |
38.4 |
KFF/K-050 |
26.9 |
|
KG-16P050-16 |
6V |
350 |
0.09 |
285 |
0,13 |
5.1 |
0.05 |
0.45 |
17.9 |
0.18 |
0.65 |
16 |
41.7 |
KFF/K-050 |
26.9 |
|
KG-16P050-24 |
6V |
235 |
0.09 |
190 |
0.13 |
7.5 |
0.20 |
0.45 |
26.3 |
0.70 |
0.65 |
24 |
41.7 |
KFF/K-050 |
26.9 |
|
KG-16P050-64 |
6V |
90 |
0.10 |
75 |
0.14 |
13.2 |
0.14 |
0.45 |
46.2 |
0.49 |
0.65 |
64 |
45 |
KFF/K-050 |
26.9 |
|
KG-16P050-96 |
6V |
55 |
0.10 |
50 |
0.14 |
19.9 |
0.20 |
0.45 |
69.7 |
0.70 |
0.65 |
96 |
45 |
KFF/K-050 |
26.9 |
|
KG-16P050-256 |
6V |
22 |
0.10 |
18 |
0.14 |
39.7 |
0.41 |
0.45 |
139.0 |
1.44 |
0.65 |
256 |
48.3 |
KFF/K-050 |
26.9 |
|
KG-16P050-384 |
6V |
15 |
0.10 |
12 |
0.14 |
60.0 |
0.61 |
0.45 |
210.0 |
2.14 |
0.65 |
384 |
48.3 |
KFF/K-050 |
26.9 |
|
KG-16P050-576 |
6V |
9 |
0.10 |
8 |
0.14 |
89.0 |
0.91 |
0.45 |
311.5 |
0.46 |
0.65 |
576 |
48.3 |
KFF/K-050 |
26.9 |
|
KG-16P050-864 |
6V |
6 |
0.12 |
5 |
0.15 |
134.0 |
1.37 |
0.45 |
469.0 |
4.80 |
0.65 |
864 |
48.3 |
KFF/K-050 |
26.9 |
|
KG-16P050-1296 |
6V |
4 |
0.12 |
3 |
0.15 |
196.0 |
2.00 |
0.45 |
686.0 |
7.00 |
0.65 |
1296 |
48.3 |
KFF/K-050 | |
