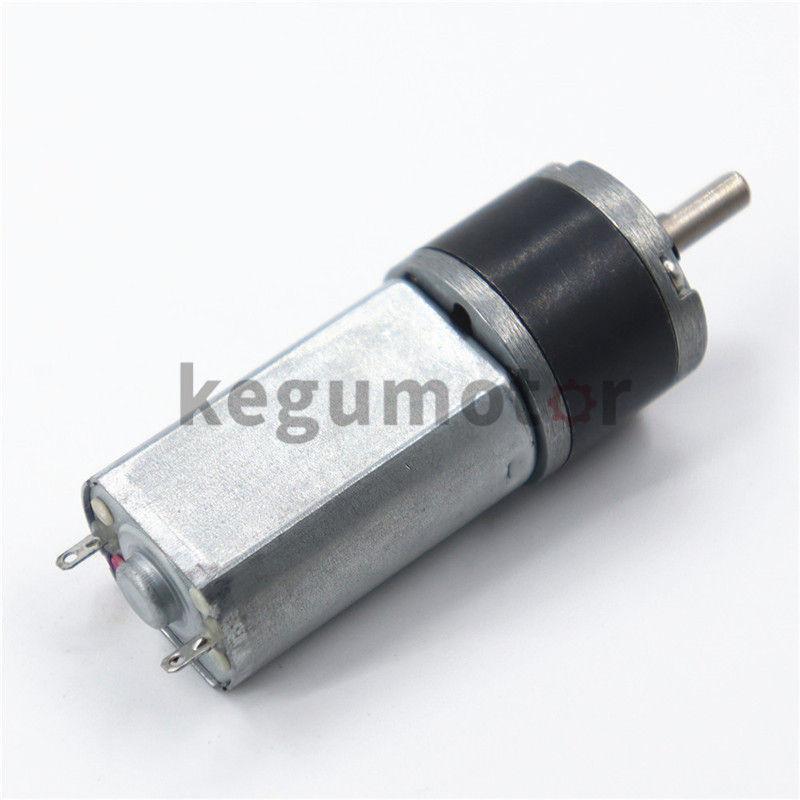

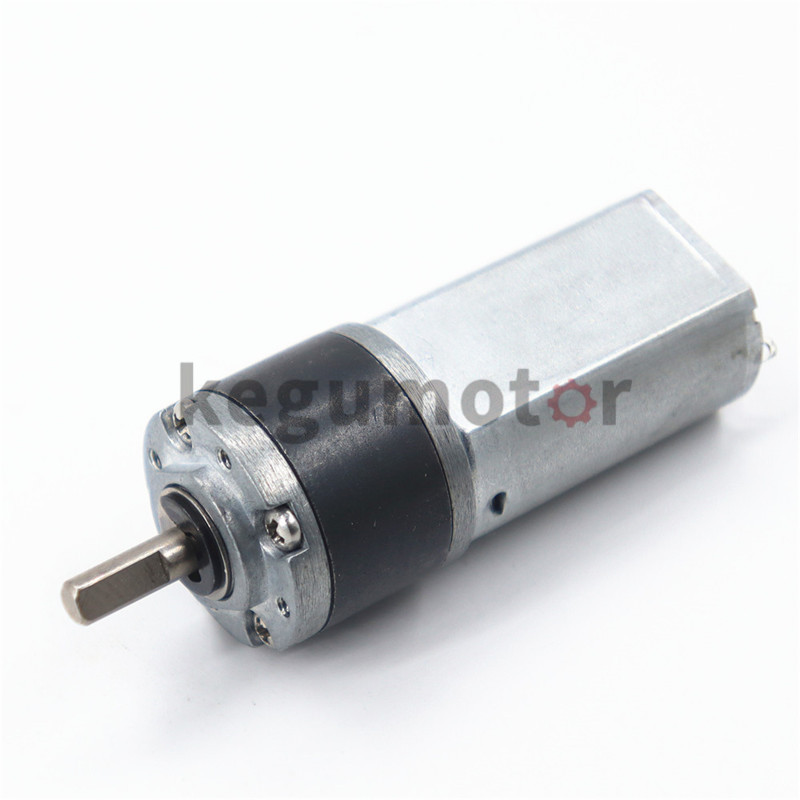

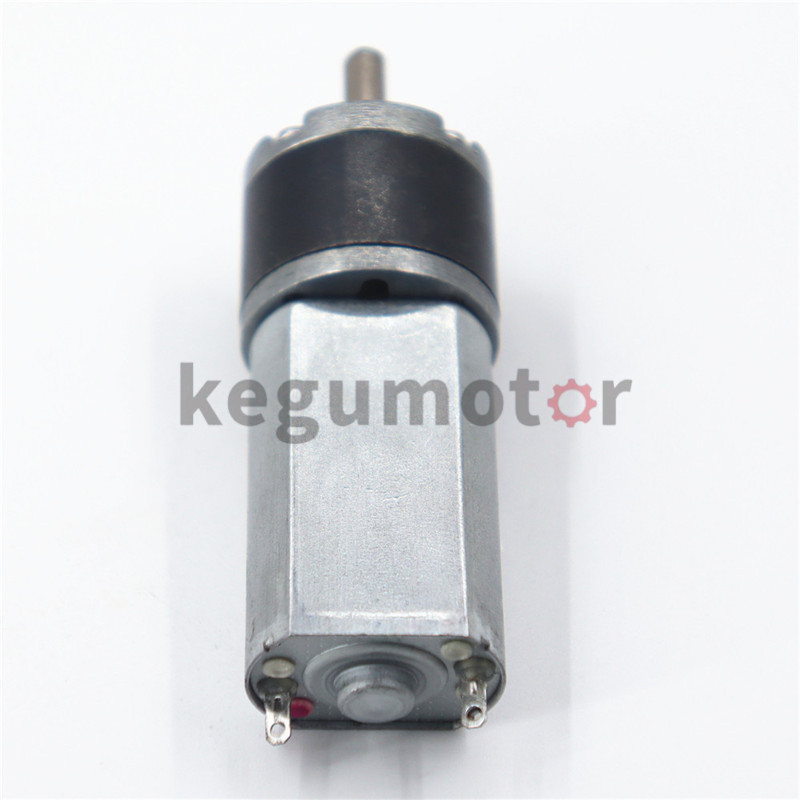

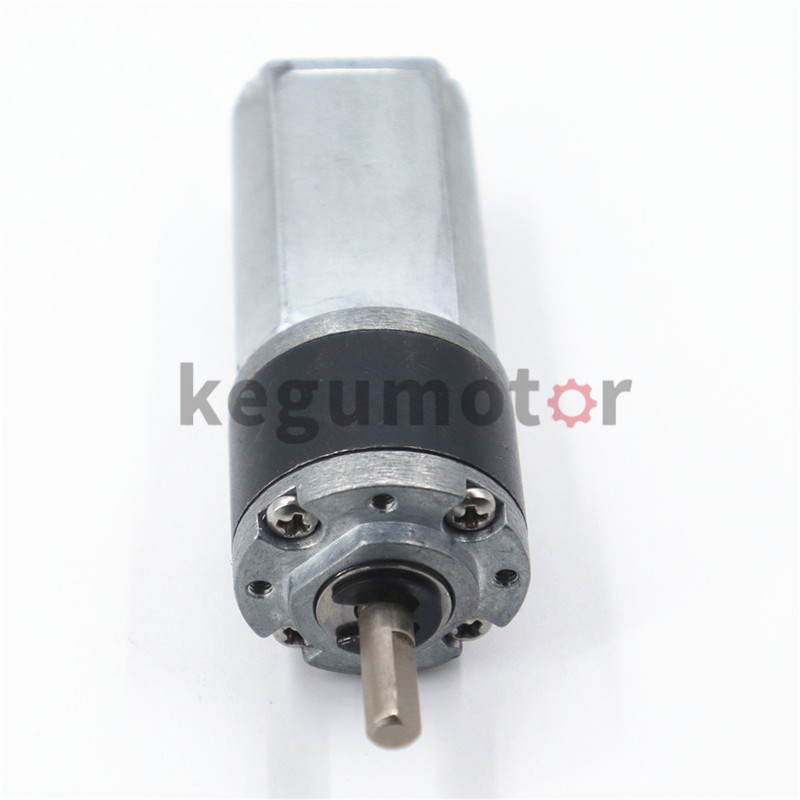

mini 22mm planetary reduction gearbox motor
large torque,long life,low noise
1) Model number: KG-22P180-6V
2) Brand name: Kegu Motor
3) Output power: less than 1.5w
4) Dia Ø22× total length (48.9~56.1)mm, exclude output shaft length

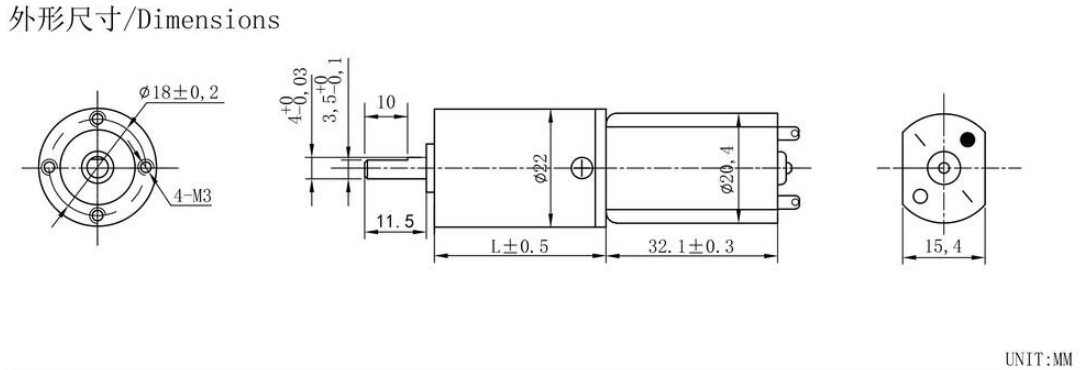

Drawing of 22mm planetary gear motor
Data Sheet
|
MODEL |
VOLTAGE |
NO- LOAD |
AT MAXIMUM EFFICIENCY |
STALL TORQUE |
GEAR RATIO |
LENGTH OF GEAR BOX(L) |
MATCH THE MOTOR |
LENGTH OF MOTOR(L1) |
|||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||||||
|
V |
r/min |
A |
r/min |
A |
mN.m |
Kg.cm |
W |
mN.m |
Kg.cm |
A |
|
mm |
|
mm |
|
|
KG-22P180-22.6 |
12 |
270 |
0.08 |
237 |
0.13 |
17,2 |
0.17 |
1.05 |
60.2 |
0.60 |
0.85 |
22.6 |
16.9 |
KFF/K-180 |
32 |
|
KG-22P180-64 |
12 |
102 |
0.09 |
90 |
0.13 |
30.2 |
0.31 |
1.05 |
105,7 |
1.09 |
0.85 |
64 |
20.5 |
KFF/K-180 |
32 |
|
KG-22P180-256 |
12 |
24 |
0.09 |
22 |
0.13 |
90.6 |
0.91 |
1.05 |
317,1 |
3,19 |
0.85 |
256 |
24.1 |
KFF/K-180 |
32 |
|
KG-22P180-864 |
12 |
7 |
0.09 |
6 |
0.13 |
306.0 |
3.11 |
1.05 |
1071 |
10.89 |
0.85 |
864 |
24.1 |
KFF/K-180 |
32 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
