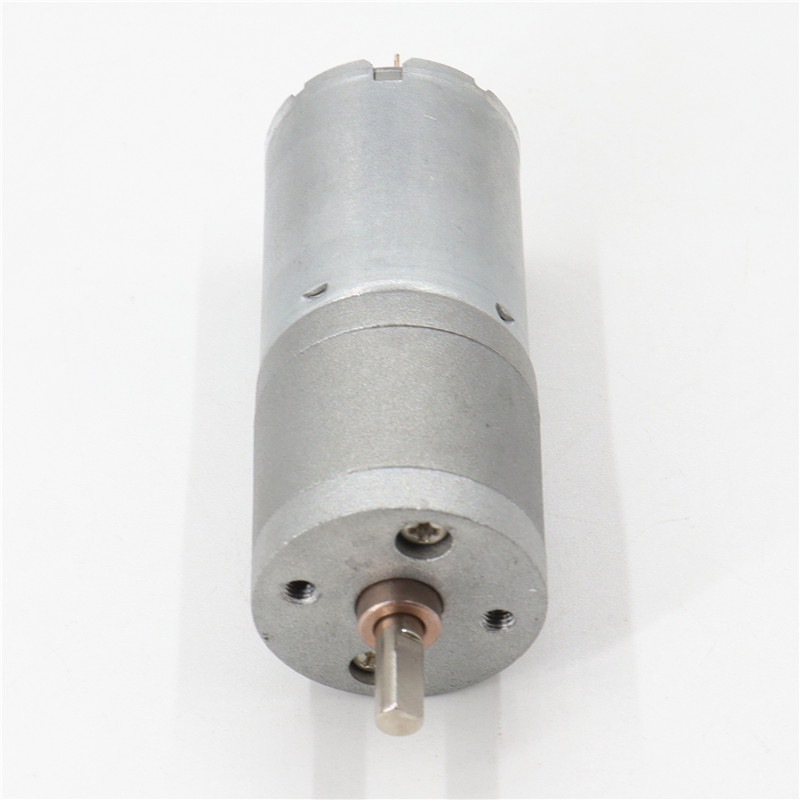

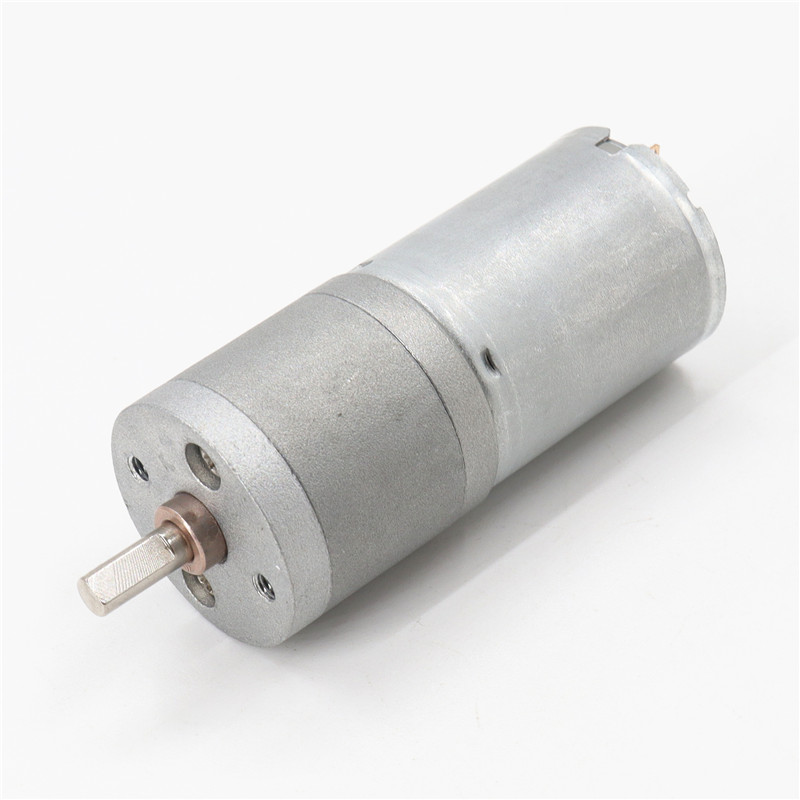

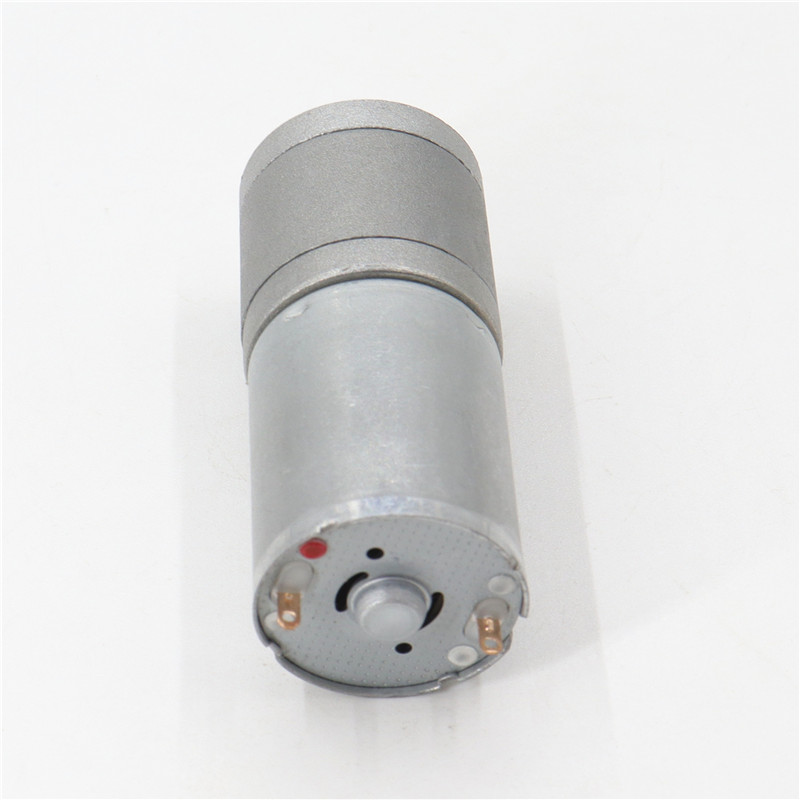

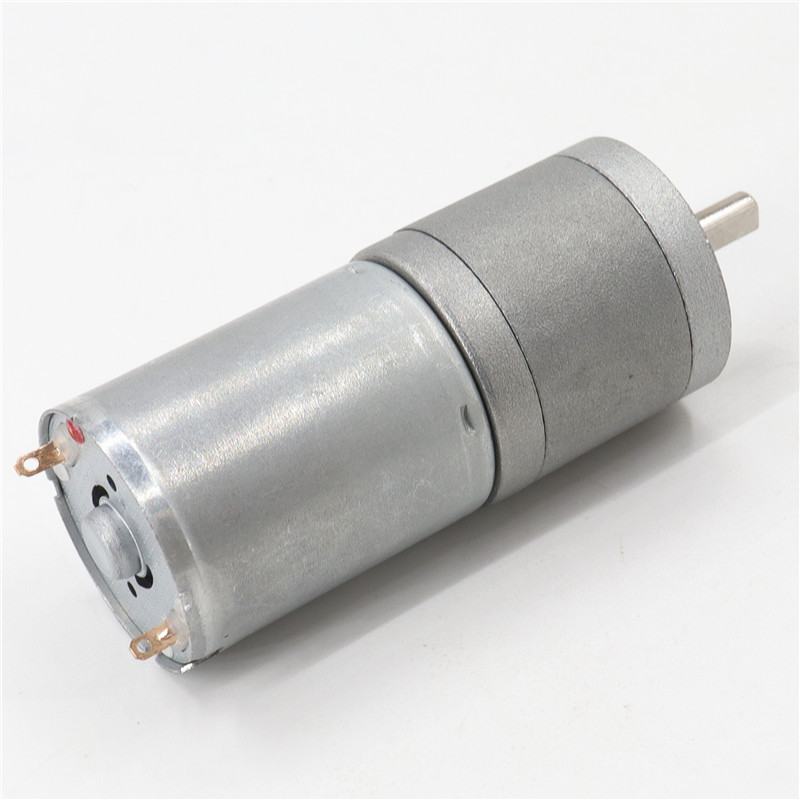

Product model: KG-25A370
Rated voltage: 3-24 (V)
Rated speed: 3-1500 (RPM)
Rated torque: 0.01-1 (NM)
Rated current: 0.1-1 (A)
Rated power: 0.1-6 (W)
Efficiency: 80 (%)
Dimensions: φ25 (mm)
Aplication:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

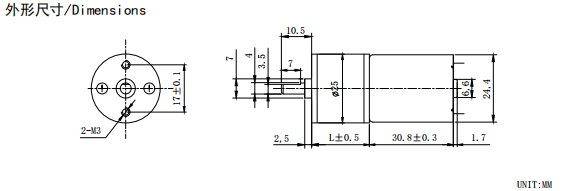

Drawing of 25mm dc spur gear motor
Gear ratio and length L of gearbox
|
Number of stages |
3 |
4 |
5 |
6 |
7 |
8 |
|
Gear ratio |
4.4 |
16 |
35.5 |
59 |
130 |
286 |
|
10 |
21 |
46.9 |
78 |
172 |
378 |
|
|
|
|
|
103 |
226 |
500 |
|
|
Length of gearbox L(mm） |
19 |
19 |
21 |
23 |
25 |
27 |
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-25A370-10 |
12 |
565 |
0.1 |
450 |
0.3 |
0.034 |
1.65 |
0.15 |
1.0 |
|
KG-25A370-21 |
12 |
560 |
0.2 |
450 |
1.0 |
0.098 |
4.7 |
0.49 |
4.0 |
|
KG-25A370-35.5 |
12 |
250 |
0.08 |
210 |
1.2 |
0.09 |
2.2 |
0.58 |
2.9 |
|
KG-25A370-46.9 |
6 |
130 |
0.08 |
100 |
0.4 |
0.09 |
1.0 |
0.63 |
2.0 |
|
KG-25A370-78 |
24 |
165 |
0.12 |
140 |
0.4 |
0.29 |
4.4 |
1.47 |
1.9 |
|
KG-25A370-103 |
6 |
55 |
0.08 |
45 |
0.4 |
0.195 |
0.95 |
1.22 |
2.0 |
|
KG-25A370-130 |
12 |
66 |
0.09 |
58 |
1.2 |
0.29 |
1.82 |
1.47 |
2.5 |
|
KG-25A370-172 |
12 |
28 |
0.04 |
22.5 |
0.1 |
0.29 |
0.7 |
1.47 |
0.3 |
|
KG-25A370-226 |
6 |
26 |
0.08 |
20 |
0.35 |
0.44 |
0.9 |
1.47 |
2.0 |
|
KG-25A370-378 |
6 |
16 |
0.08 |
12 |
0.35 |
0.68 |
0.85 |
1.47 |
2.0 |
|
KG-25A370-500 |
6 |
12 |
0.08 |
10 |
0.35 |
0.78 |
0.85 |
1.47 |
2.0 |
