Ø 37mm Micro DC Gear Motor

KG-37B528 37mm metal gear motor

Model: KG-37B528 37mm metal gear motor
Gearbox: 37mm metal gearbox
Dia：37mm Motor：KRF-528 dc motor
37mm metal gearbox, Kegu motor
Product description: 37mm DC Spur Gear Motor,37mm dc gear motor,37mm metal gearbox,GM37-528,37B528,37mm gear motor,37mm gearbox,37mm spur gearbox,37mm dc gear motor with encoder,spur metal gear box,micro metal gearbox,gea
INQUIRY

37mm metal gear motor 12V

Product model: KG-37B528

Rated voltage: 3-24 (V)

Rated speed: 3-200 (RPM)

Rated torque: 0.01-2 (NM)

Rated current: 0.03-1.0 (A)

Rated power: 0.1-10 (W)

Efficiency: 80 (%)

Dimensions: φ37 (mm)

Application:

Household Appliances:Electric curtain，Intergrated cooker，Coffee maker, Intelligent closestool,Sweeping robot, Dish-washing Machine,Cooker hood, Electric lock.

Hair Care：Hair Curler, Massager, Electric Hair Clipper

Office Equipment:Shredder, Printer, Projector, Counting Machine

Medical Equipment：Massage chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair

Industrial Equipment: Water，electrical and gas valve, Air switch, Pump, Automatic door, Automatic lubrication equipment.

Business Equipment:Vending machines, Parking locks, ATM machines, Stage lights.

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

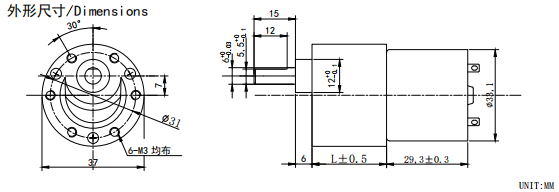

Drawing of 37mm dc spur gear motor

Gear ratio and length L of gearbox

Number of stages	2	3	4	5	6
Gear ratio	6	16.7	45	110	330
	10	23.3	50	121	350
		30	60	135	405
			70	150	420
			90	180	450
			100	210	490
				250	540
				270	630
				300	810
Length of gearbox L(mm）	19	21.5	24	26.5	29

SPECIFICATIONS：

MODEL	V	NO LOAD		RATED LOAD				STALL
MODEL	V	SPEED rpm	CURRENT A	SPEED rpm	CURRENT A	TORQUE Nm	OUTPUT W	TORQUE Nm	CURRENT A
KG-37B528-10	6	580	0.25	470	0.6	0.029	1.45	0.147	2.2
KG-37B528-30	6	193	0.25	156	0.6	0.88	1.44	0.44	2.2
KG-37B528-50	6	116	0.25	94	0.6	0.13	1.35	0.65	2.2
KG-37B528-70	12	117	0.2	94	0.75	0.38	3.76	1.85	3.2
KG-37B528-90	12	90	0.2	73	0.758	0.49	3.74	2.45	3.2
KG-37B528-150	12	40	0.15	32	0.55	0.49	1.64	2.6	2.5
KG-37B528-180	12	33	0.15	26.5	0.55	0.63	1.76	3.13	2.5
KG-37B528-210	12	28.5	0.15	22.5	0.55	0.73	1.73	3.7	2.5
KG-37B528-270	6	21	0.25	17	0.6	0.63	1.13	3.3	2.2
KG-37B528-490	6	11.5	0.25	9.5	0.6	1.07	1.07	5.8	2.2
KG-37B528-630	6	9	0.25	7	0.6	1.37	1.0	6	2.2
