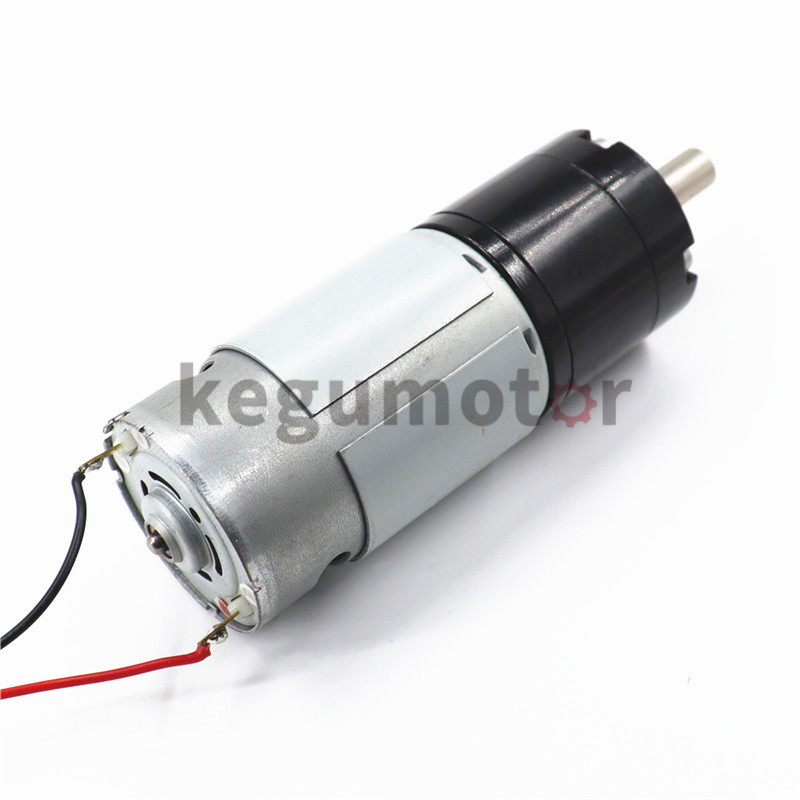

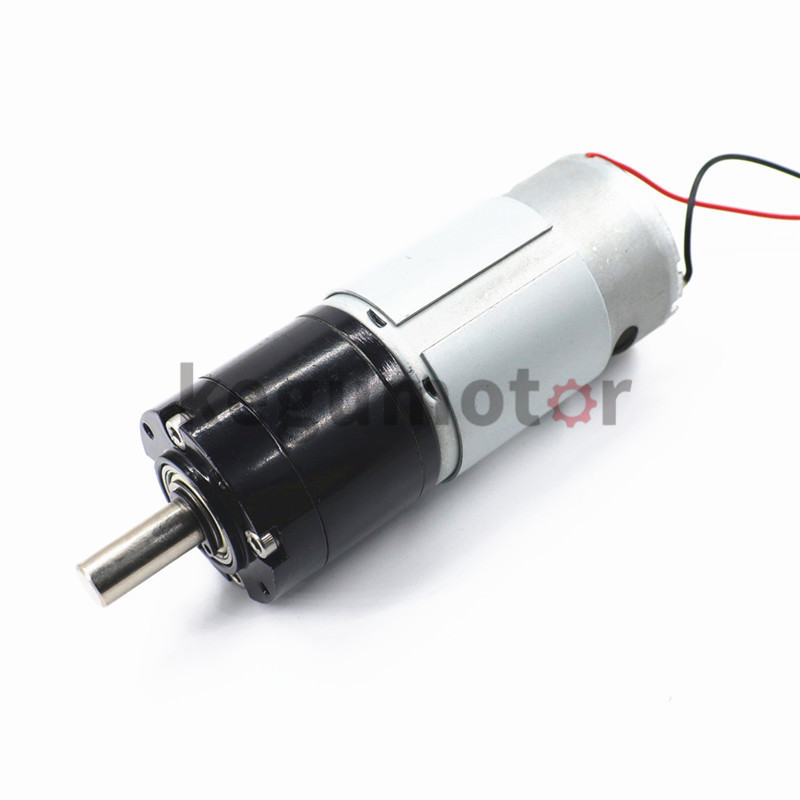

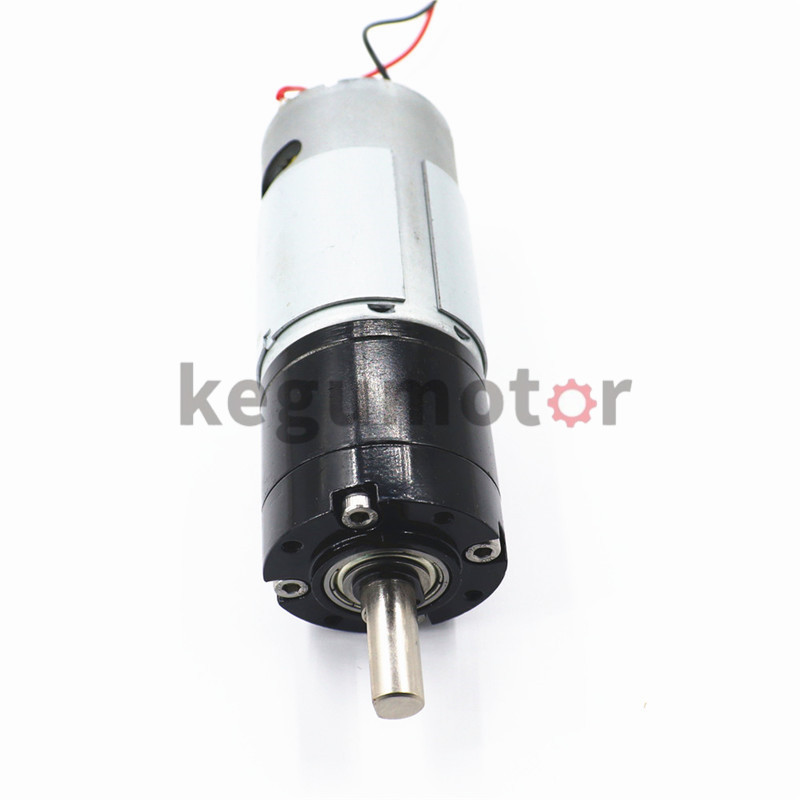

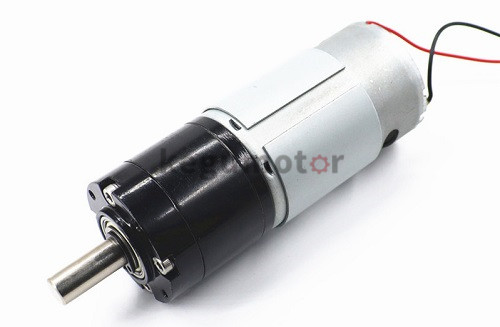

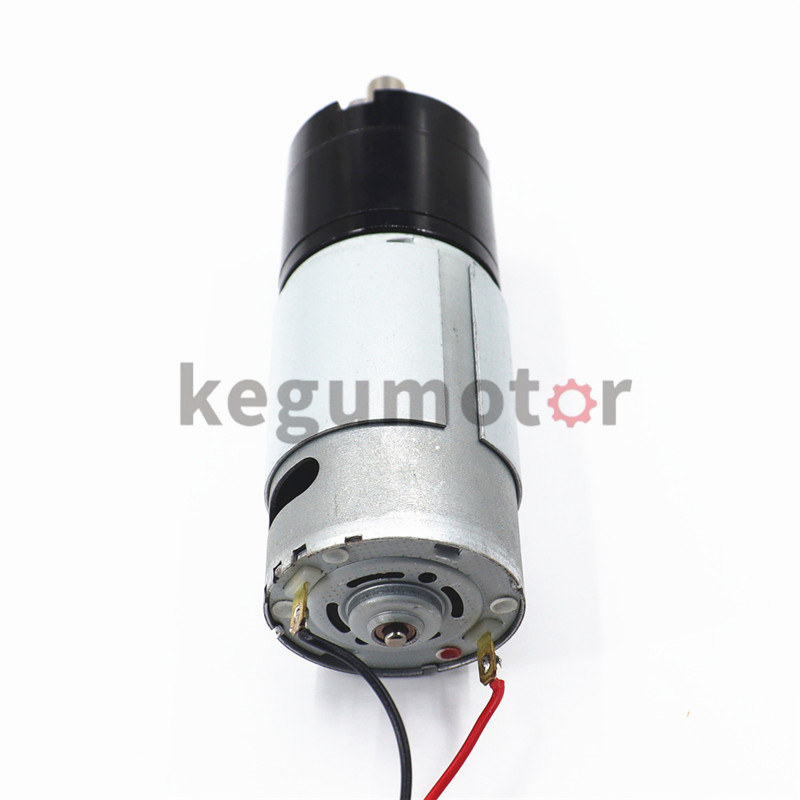

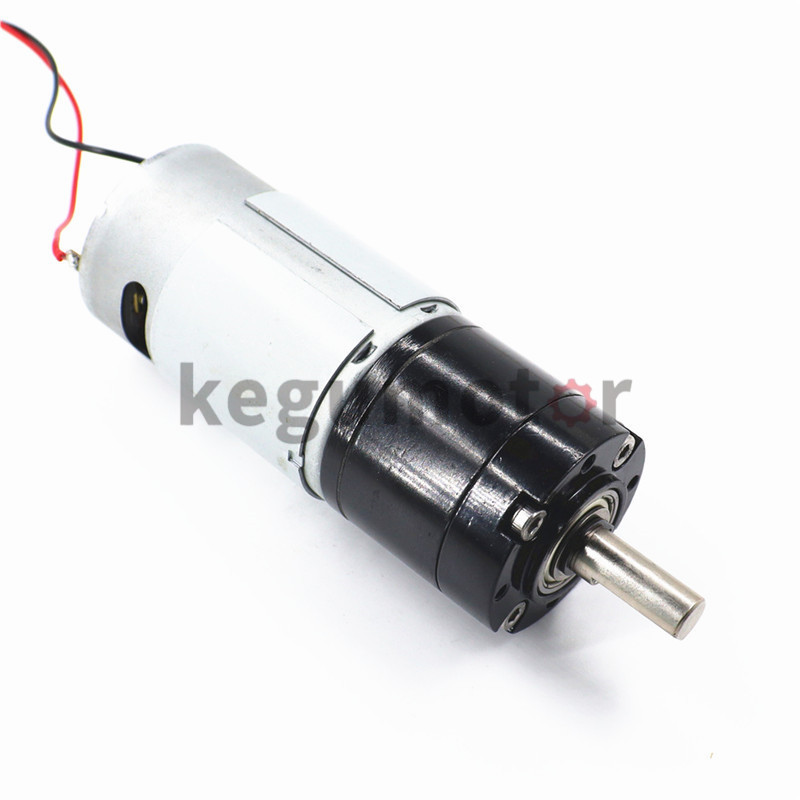

mini 36mm planetary reduction gearbox motor
large torque,long life,low noise
1) Model number: KG-36P555
2) Brand name: Kegu Motor
3) Output power: 15w
4) Dia Ø36× total length (96~102.2)mm, exclude output shaft length
Drawing of 22mm planetary gear motor
Data Sheet
|
MODEL |
VOLTAGE |
NO- LOAD |
AT MAXIMUM EFFICIENCY |
STALL TORQUE |
GEAR RATIO |
LENGTH OF GEAR BOX(L) |
MATCH THE MOTOR |
LENGTH OF MOTOR(L1) |
||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
TORQUE |
CURRENT |
||||||||
|
V |
r/min |
A |
r/min |
A |
mN.m |
Kg.cm |
mN.m |
Kg.cm |
A |
|
mm |
|
mm |
|
|
KG-36P555-4 |
12 |
1097 |
0.43 |
842 |
1.45 |
101.5 |
1.03 |
446.2 |
4.55 |
4.93 |
4 |
39 |
KRS-555 |
57 |
|
KG-36P555-5 |
12 |
877 |
0.43 |
673 |
1.45 |
126.8 |
1.29 |
557.7 |
5.69 |
4.93 |
5 |
39 |
KRS-555 |
57 |
|
KG-36P555-14 |
12 |
313 |
0.43 |
240 |
1.45 |
355.1 |
3.62 |
1561.7 |
15.92 |
4.93 |
14 |
39 |
KRS-555 |
57 |
|
KG-36P555- 19 |
12 |
231 |
0.43 |
177 |
1.45 |
481.9 |
4.91 |
2119.4 |
21.61 |
4.93 |
19 |
39 |
KRS-555 |
57 |
|
KG-36P555- 27 |
12 |
162 |
0.43 |
125 |
1.45 |
684.8 |
6.98 |
3011.8 |
30.71 |
4.93 |
27 |
39 |
KRS-555 |
57 |
|
KG-36P555-51 |
12 |
86 |
0.43 |
66 |
1.45 |
1293.6 |
13.19 |
4527.6 |
46.17 |
4.93 |
51 |
39 |
KRS-555 |
57 |
|
KG-36P555- 71 |
12 |
62 |
0.43 |
47 |
1.45 |
1800.8 |
18.36 |
5402.4 |
55.09 |
4.93 |
71 |
39 |
KRS-555 |
57 |
|
KG-36P555-100 |
12 |
44 |
0.43 |
34 |
1.45 |
2536.4 |
25.86 |
7609.2 |
77.59 |
4.93 |
100 |
39 |
KRS-555 |
57 |
|
KG-36P555-189 |
12 |
23 |
0.43 |
18 |
1.45 |
3046.5 |
31.07 |
9139.5 |
93.20 |
4.93 |
189 |
45.2 |
KRS-555 |
57 |
|
KG-36P555-263 |
12 |
17 |
0.43 |
13 |
1.45 |
3569.3 |
36.40 |
10708.8 |
109.20 |
4.93 |
263 |
45.2 |
KRS-555 |
57 |
