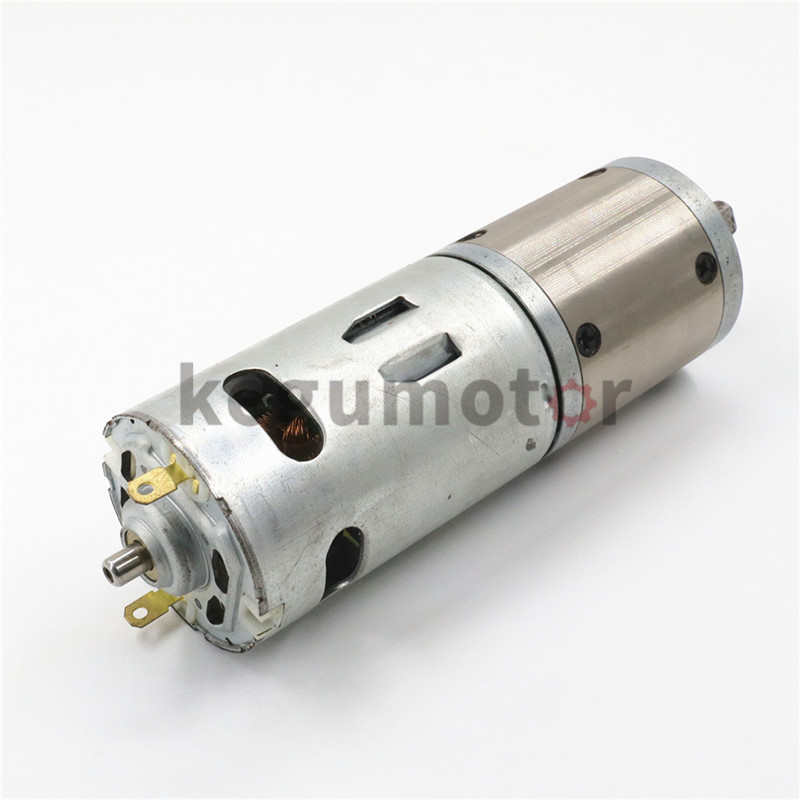

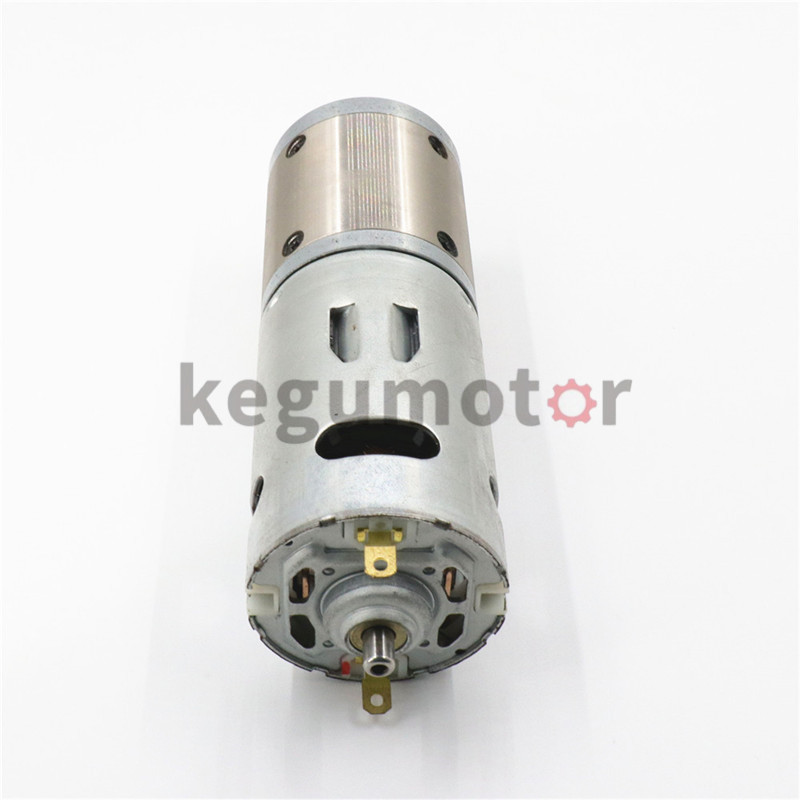

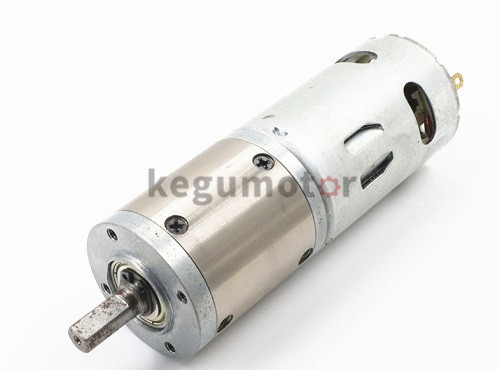

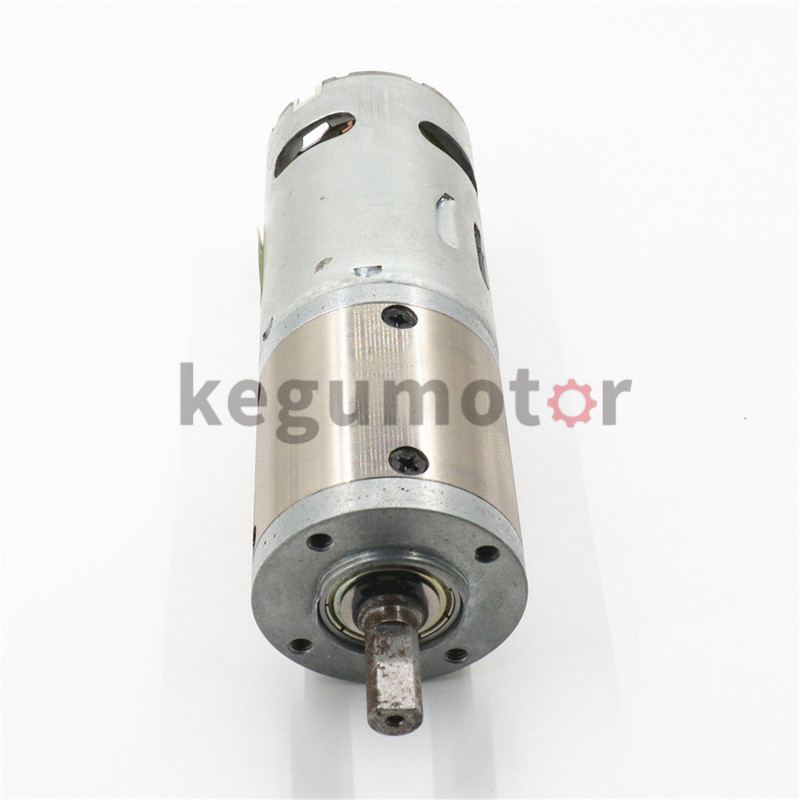

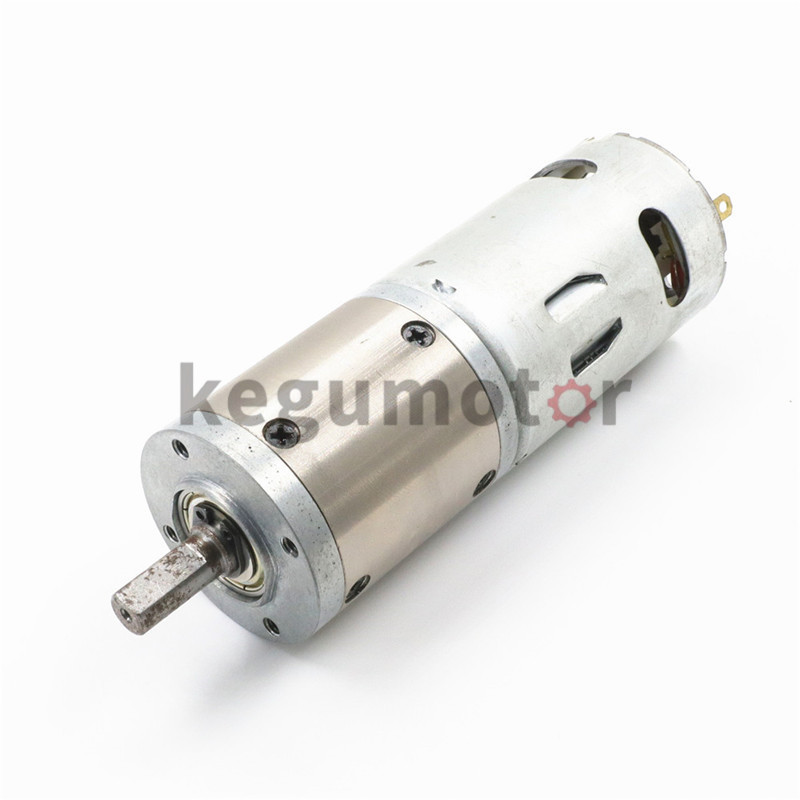

mini 42mm planetary reduction gearbox motor
large torque,long life,low noise
1) Model number: KG-42P555
2) Brand name: Kegu Motor
3) Output power: 25w

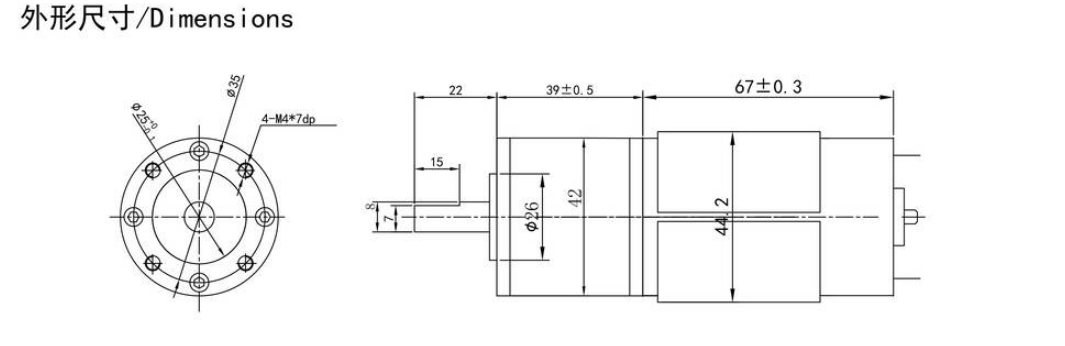

4) Dia Ø42× total length 132mm, exclude output shaft length
Data Sheet
|
MODEL |
VOLTAGE |
NO- LOAD |
AT MAXIMUM EFFICIENCY |
STALL TORQUE |
GEAR RATIO |
LENGTH OF GEAR BOX(L) |
MATCH THE MOTOR |
LENGTH OF MOTOR(L1) |
||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
TORQUE |
CURRENT |
||||||||
|
V |
r/min |
A |
r/min |
A |
mN.m |
Kg.cm |
mN.m |
Kg.cm |
A |
|
mm |
|
mm |
|
|
KG-42P775-104 |
24 |
58 |
0.550 |
48 |
2.63 |
3524.8 |
35.94 |
10574.4 |
107.83 |
12.50 |
104 |
65.5 |
KRS-775 |
66.5 |
|
KG-42P775-120 |
24 |
50 |
0.550 |
42 |
2.63 |
4036.5 |
41.16 |
12109.5 |
123.48 |
12.50 |
120 |
65.5 |
KRS-775 |
66.5 |
|
KG-42P775-139 |
24 |
43 |
0.550 |
36 |
2.63 |
4583.2 |
46.73 |
13749.6 |
140.20 |
12.50 |
139 |
65.5 |
KRS-775 |
66.5 |
|
KG-42P775-158 |
24 |
38 |
0.550 |
32 |
2.63 |
5045.3 |
51.45 |
15135.9 |
154.34 |
12.50 |
158 |
65.5 |
KRS-775 |
66.5 |
