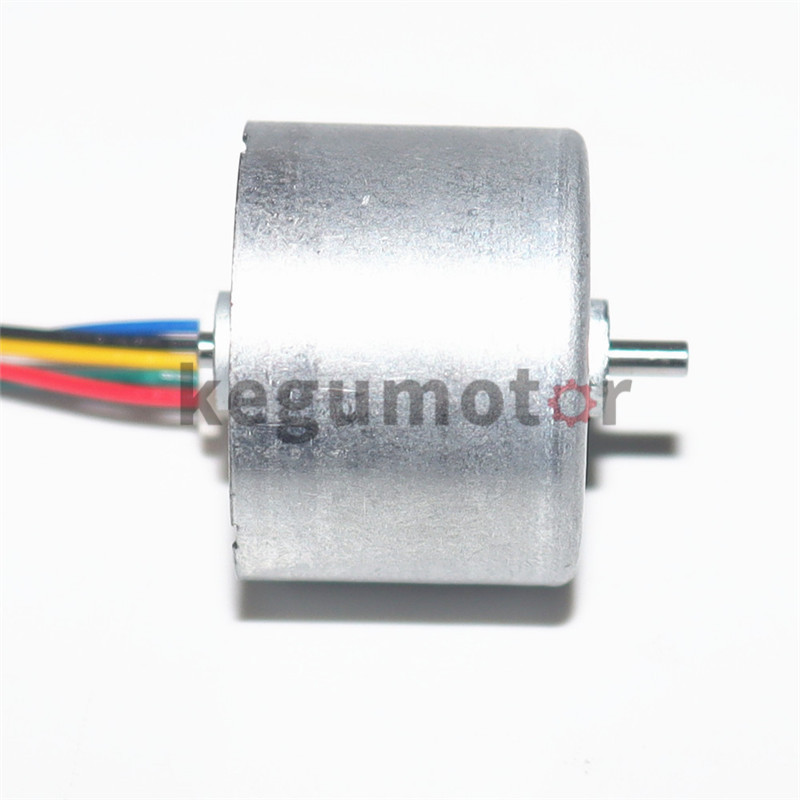

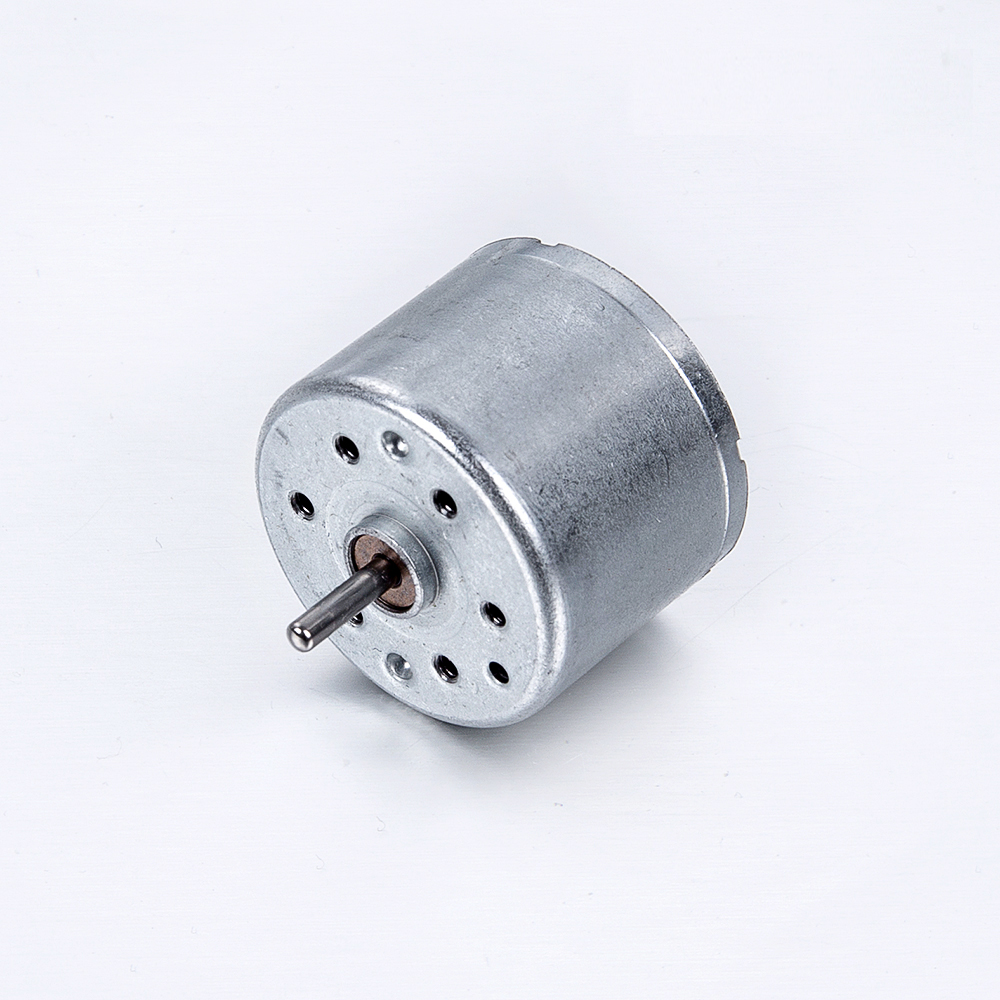

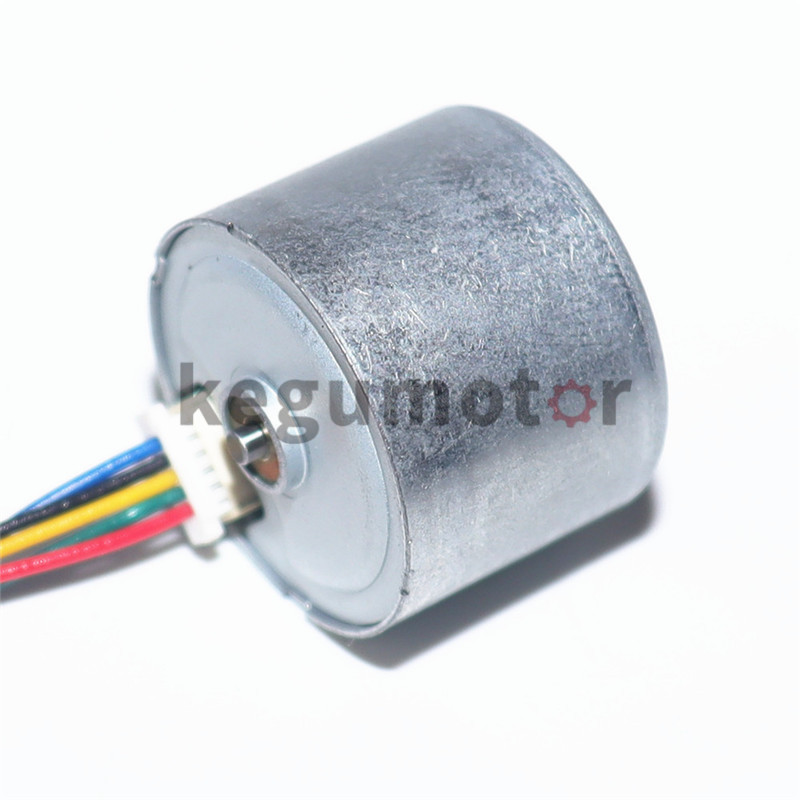

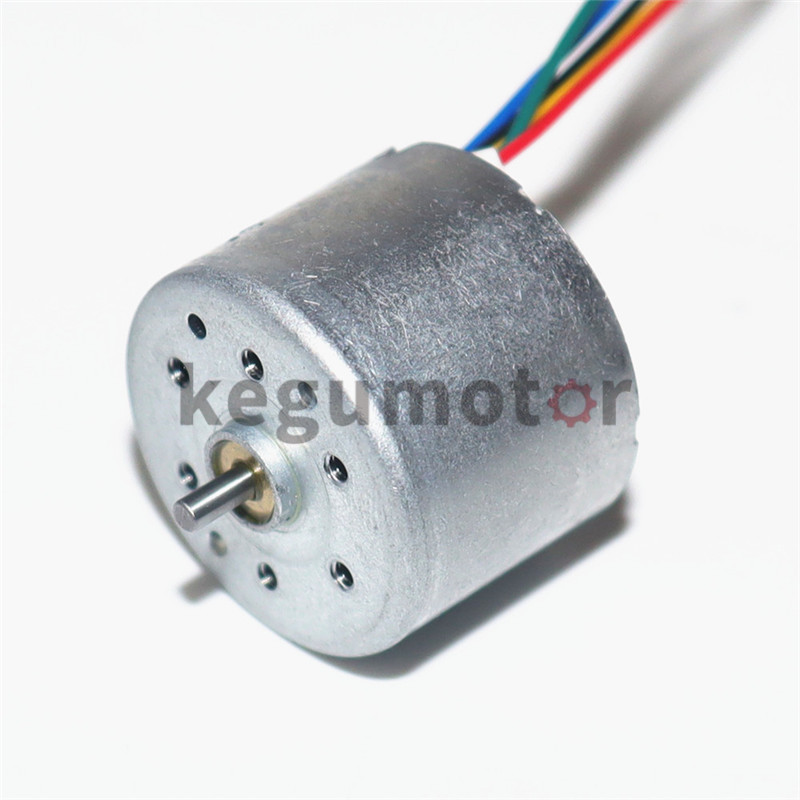

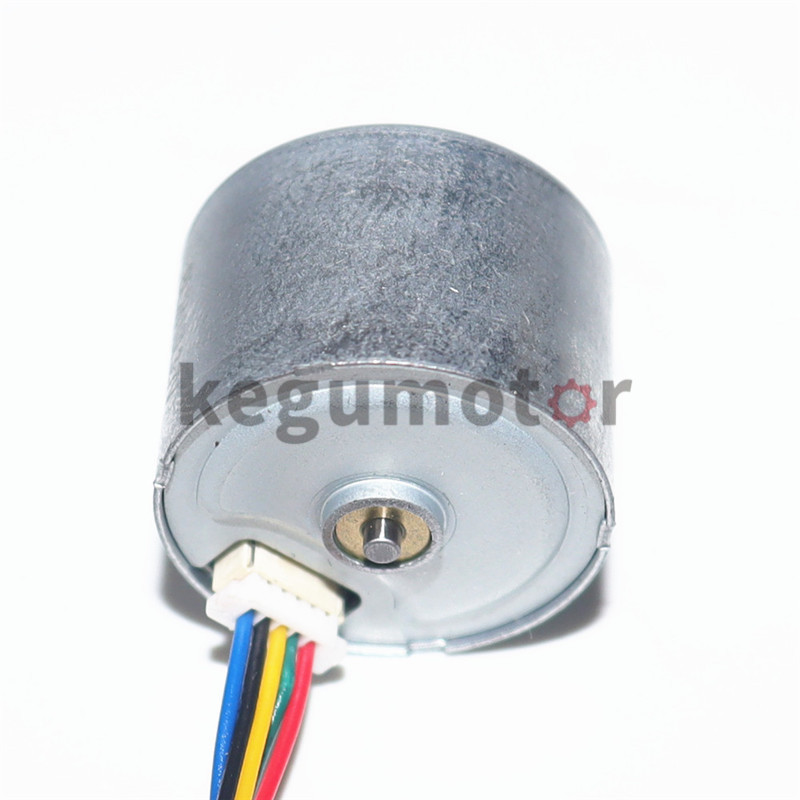

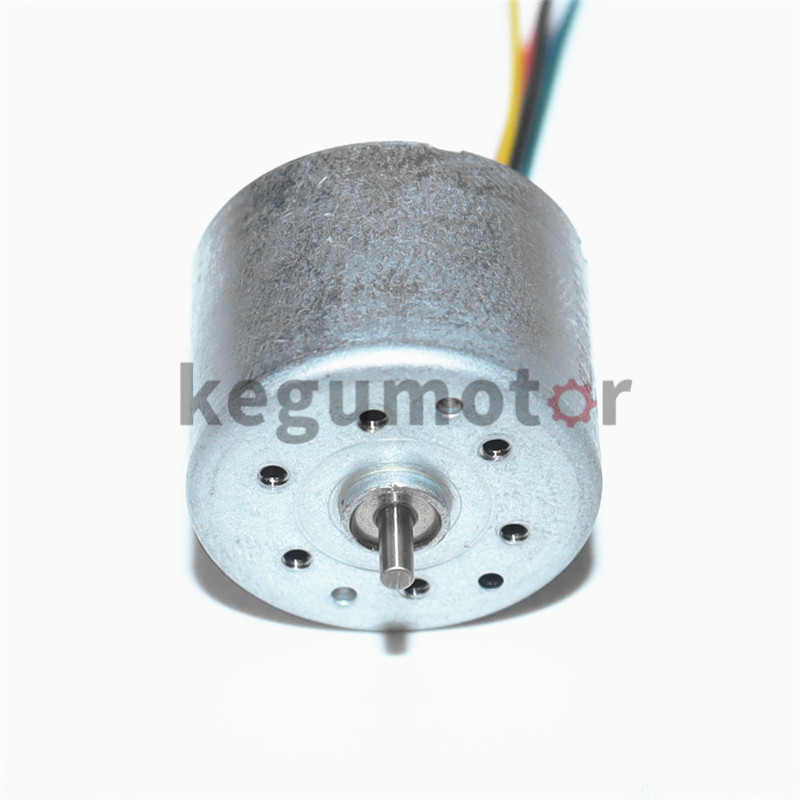

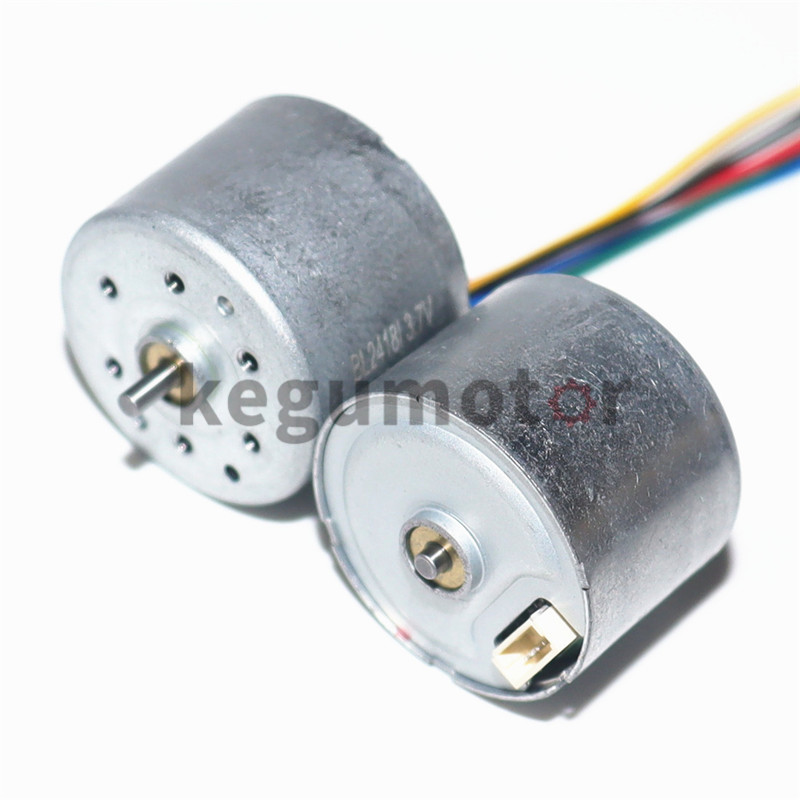

BL2418 BL2418I B2418M 24mm inner rotor bldc brushless dc motor

BL2418i BL2418 B2418M 24mm inner rotor bldc brushless dc motor

Specifications:
Size: φ24.0* 18.0mm
Built-in driver ( built-in driver Controller with hall sensors)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

OD 24mm small bldc brushless dc motor has BL2418 and BL2430 models.

	BL2418	Output Power: 1W~6W	Weight: 30g (Approx.)
	Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps Business Equipment: Printer, Copier, Projector, Scanner, Cash Register, Card Sender Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager, Vibrator

Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
BL2418i-V1	4~9	6	9260	0.21	2.45	7490	0.61	1.93	6.2	1.2
BL2418i-V2	8~16	12	6520	0.08	2.45	4660	0.24	1.2	8.4	0.65
BL2418i-V3	8~26	12	12420	0.127	2.94	9580	0.43	2.96	12.8	1.47
BL2418i-V4	8~26	24	12770	0.065	5.89	9280	0.41	5.72	21.5	1.32
BL2418i-V05	8~26	24	8660	0.055	2.94	6690	0.169	2.06	12.8	0.55

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 5000-50000hrs

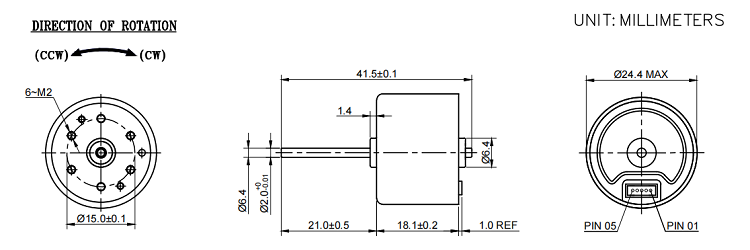

BL2418I BL2418 B2418M Outline Drawing:  Usable machine screw length 1.5mm max from motor mounting surface      Unit: Millimeter

Performance Curve:

BL2418-V2                        12V BL2418-V4                           24V

Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized.
