Ø 24mm Micro BLDC Brushless DC Motor

BL2430 BL2430I B2430M 24mm inner rotor brushless dc motor

BL2430 BL2430I B2430M 24mm inner rotor brushless dc motor

Model: BL2418i BL2430 B2418M
OD: 24mm Body Length: 30mm
Voltage: 6~26V
roduct description：BL2430i BL2430 B2430M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback si
Product description: BL2430 Brushless Motor, BL2430I, BL2430 Motor, BL2430 inner rotor,24mm dc brushless motor, 24mm BLDC motor,BL2430M, B2430M inner rotor brushless motor,Fine quality BL2430 supplier
INQUIRY

BL2430i BL2430 B2430M 24mm inner rotor bldc brushless dc motor Inbuilt controller with hall-effect sensor,

BL2430I B2430M 24mm brushless motor

Size: φ24.0* 30.0mm

Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

BL2418i and BL2430i are OD 24mm brushless dc motor.

BL2430

Output Power: 1W~8W

Weight: 51g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal

Machine

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

Personal Care: Hair Dryer, Electric Shaver, Massager

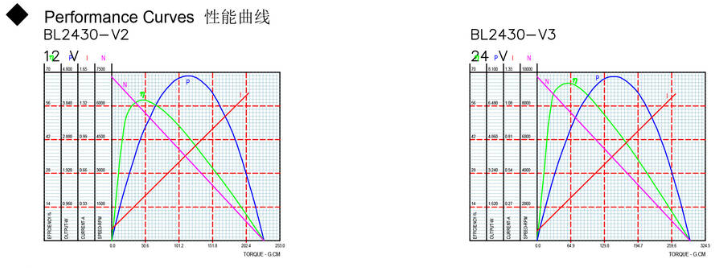

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
BL2430-V1	5~12	6	5380	0.23	3.92	4720	0.61	1.94	13.2	1.5
BL2430-V2	5~12	9	5390	0.11	9.81	3750	0.71	3.85	23.2	1.5
BL2430-V3	8~26	12	8010	0.17	9.32	6150	0.74	6.01	23.5	1.5
BL2430-V4	8~26	24	4570	0.05	6.87	3510	0.18	2.53	29.59	0.64

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

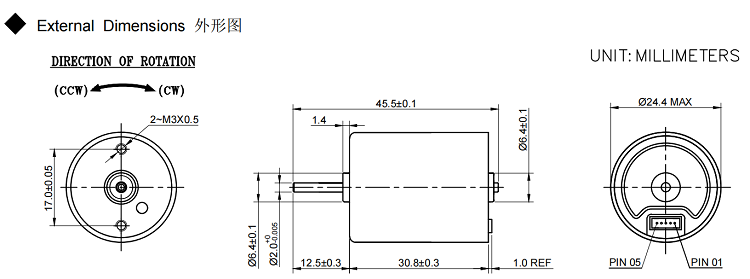

BL2430 BL2430I B2430M Outline Drawing: Usable machine screw length 2.0mm max. from motor mounting surface Unit: Millimeter

BL2430I
