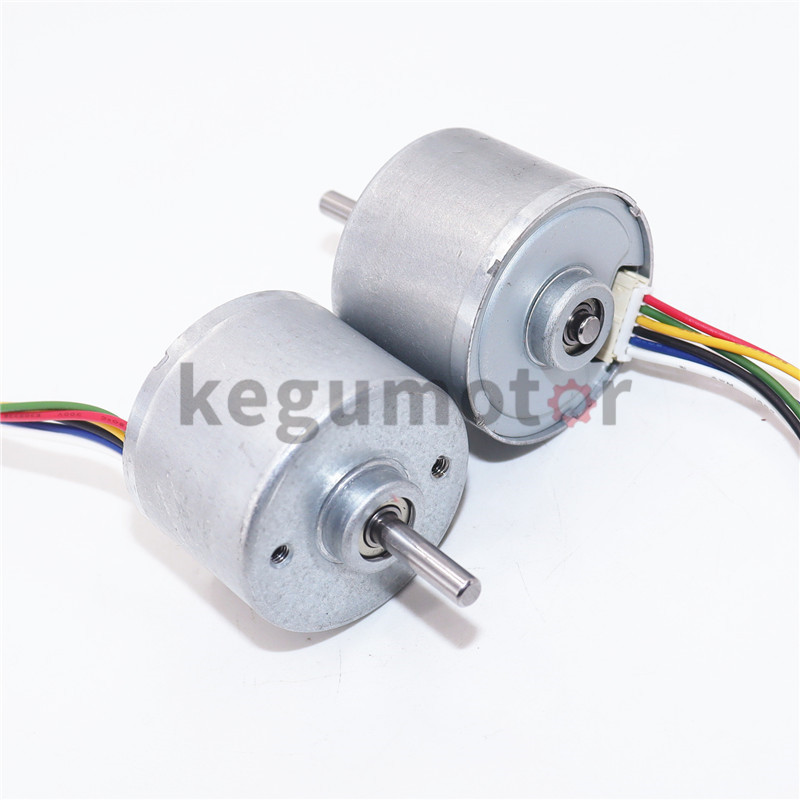

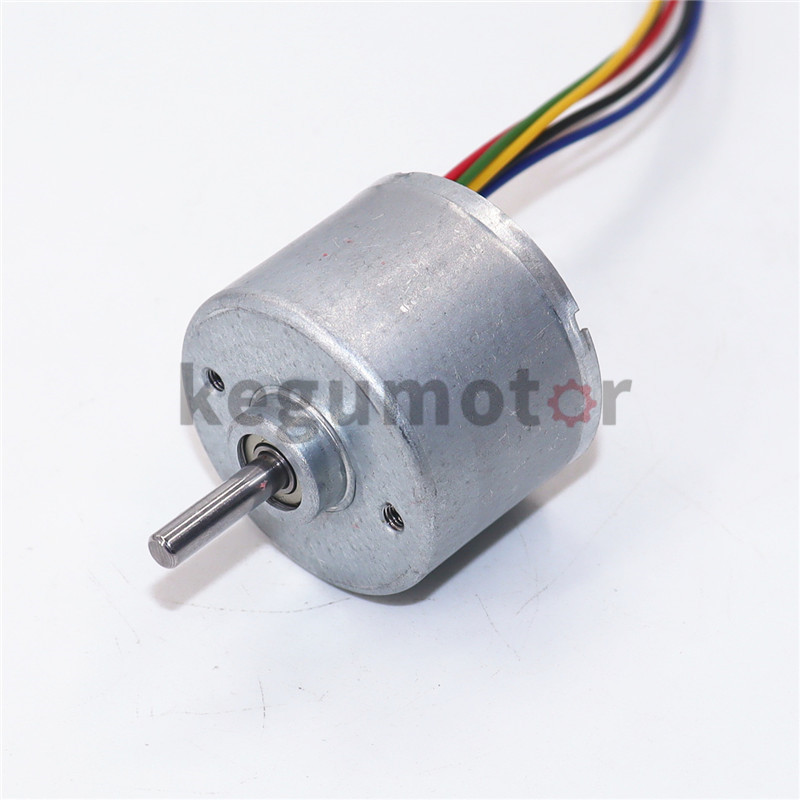

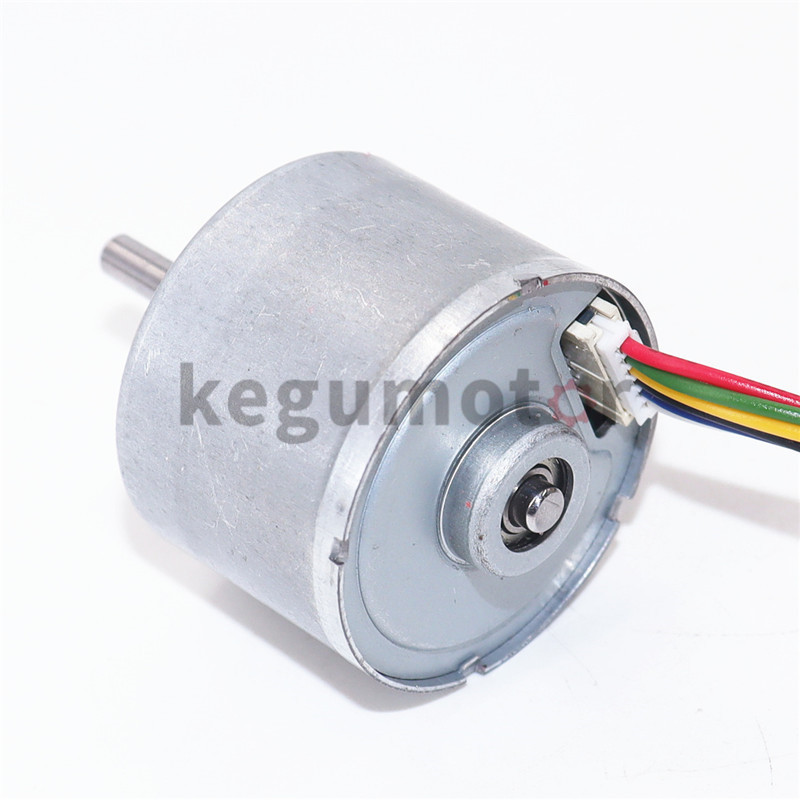

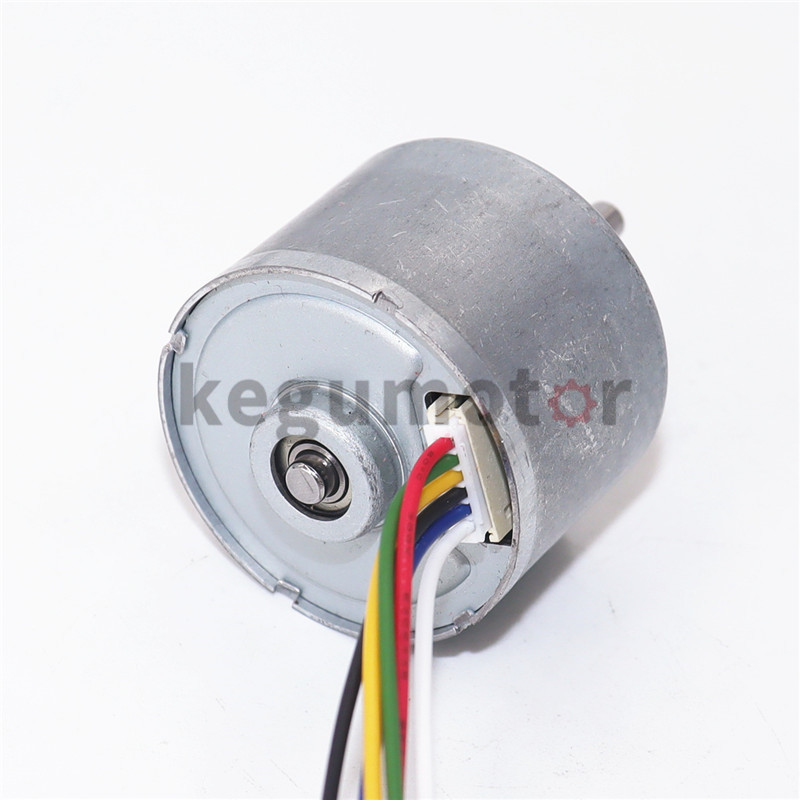

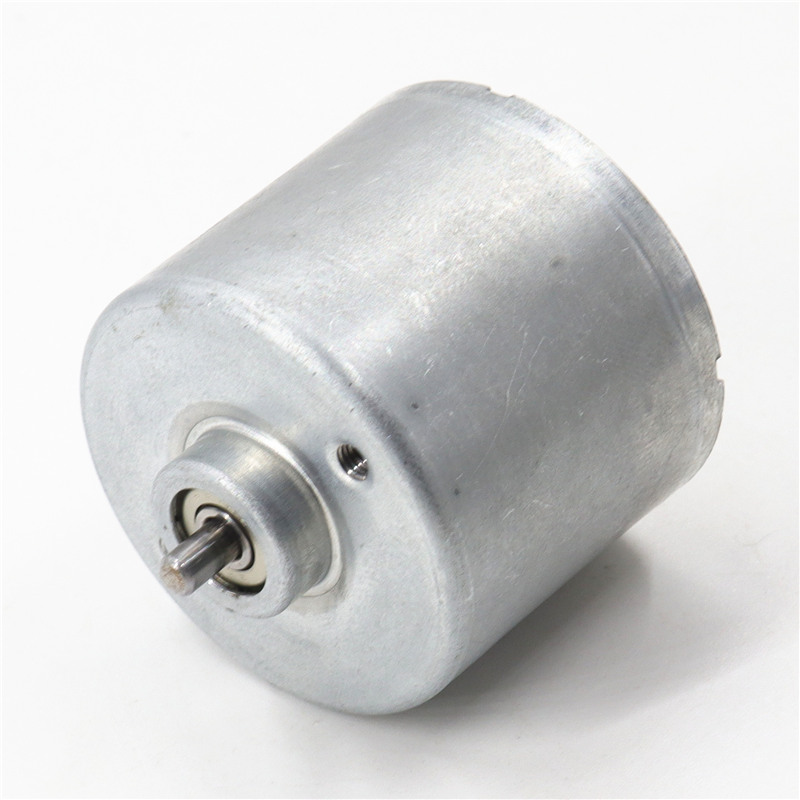

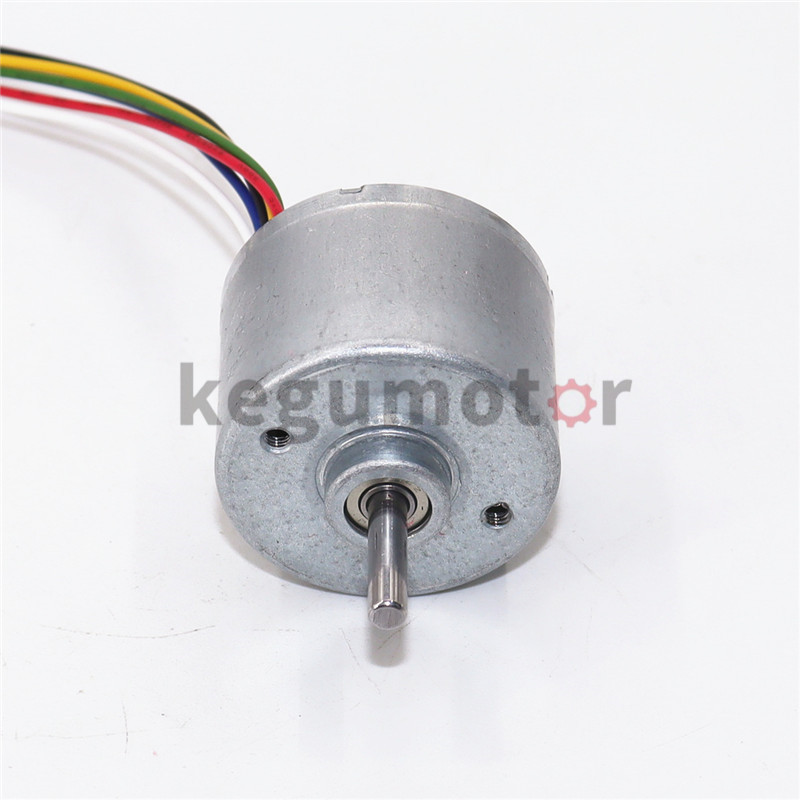

Ø 36mm Micro BLDC Brushless DC Motor

  • BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor
  • BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor
  • BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor
  • BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor
  • BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor
BL3626 BL3626i B3626M 36mm inner rotor brushless dc motorBL3626 BL3626i B3626M 36mm inner rotor brushless dc motorBL3626 BL3626i B3626M 36mm inner rotor brushless dc motorBL3626 BL3626i B3626M 36mm inner rotor brushless dc motorBL3626 BL3626i B3626M 36mm inner rotor brushless dc motor

BL3626 BL3626i B3626M 36mm inner rotor brushless dc motor

  • Model: BL3626i B3626M
  • OD: 36mm Body Length:26mm
  • Voltage: 6~26V
  • Product description:BL3626i B3626M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL3626 Brushless Motor|Kegu Motor, BL3626i, B3626M,BL3626 Motor, BL3626 inner rotor,36mm BLDC Motor,Inbuilt controller with hall-effect sensor,Controller with hall sensor,micro brushless dc motor,bld
  • INQUIRY

BL3626I BL3626 B3626M 36mm inner rotor bldc brushless dc motor

bl3626i b3626m 36mm brushless motor

Specifications:

Size: Ø36.0* 26.0mm

  • Built-in driver (Inbuilt controller with hall-effect sensor)
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC Low noise
  • Long life: 20000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • Customization acceptable
  • Characters:
    1.Small size dc brushless motor with low speed and big torque
    2.Suitable to small diameter, low noise and big torque application
    3.Can equip with Gear Reducer
  • BL3626


    Output Power: 2W~15W Weight: 95g (Approx.)

    bl3626Brushless DC Motor-Typical Application

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

    Industry Equipment: Pump, Portable Screwdriver, Small Compressor

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    Personal Care: Hair Dryer, Electric Shaver, Massager

    Model Voltage(V) No Load Rated Load Stall
    Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
    BL3626-V01 8~16V 12 6027 0.15 96.1 4882 0.638 4.814 506 2.721
    BL3626-V02 8~26V 18 7435 0.124 91 6022 0.504 5.621 478.9 2.121
    BL3626-V03 8~26V 24 8927 0.111 91.3 7231 0.456 6.774 480.8 1.926
    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs


    Notice: Data in this typical specification sheet are for other certain customers.


    Drawing of BL3626i BL3626 B3626M


    Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
