Ø 36mm Micro BLDC Brushless DC Motor

  • BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor
  • BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor
  • BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor
  • BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor
  • BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor
BL3650 BL3650I B3650M 36mm inner rotor brushless dc motorBL3650 BL3650I B3650M 36mm inner rotor brushless dc motorBL3650 BL3650I B3650M 36mm inner rotor brushless dc motorBL3650 BL3650I B3650M 36mm inner rotor brushless dc motorBL3650 BL3650I B3650M 36mm inner rotor brushless dc motor

BL3650 BL3650I B3650M 36mm inner rotor brushless dc motor

  • Model: BL3650i B3650M
  • OD: 36mm Body Length: 50mm
  • Voltage: 6~26V
  • Product description:BL3650i B3650M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL3650 Brushless Motor, BL3650I, B3650M,BL3650 Motor, BL3650 inner rotor,36mm dc brushless motor, 36mm BLDC motor,BL3650M, Fine quality BL3650 supplier,36mm inner rotor brushless dc motor
  • INQUIRY

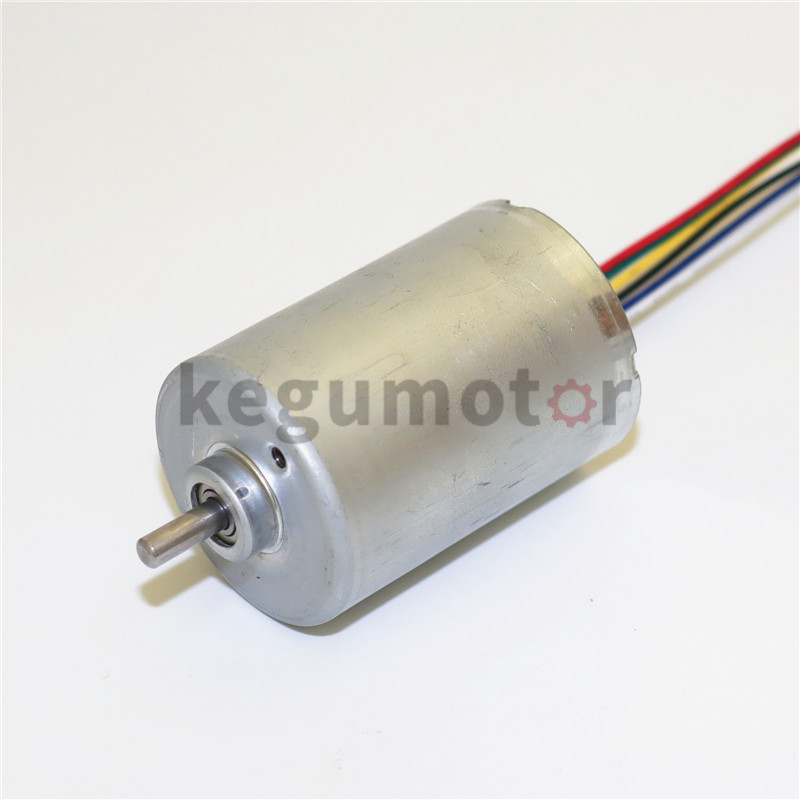

BL3650i BL3650 B3650M 36mm Small BLDC brushless dc motor Controller with hall sensor

bl3650i b3650m 36mm brushless motor

Specifications:

Size: φ36.0* 50.0mm
Built-in driver (Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

BL3626i,BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:

BL3650

inner rotor MICRO BLDC motor

Output Power: 5~40W Weight: 180g (Approx.)

BL3650IBrushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

24v brushless motor    12v brushless motor  18V brushless motor  36mm inner rotor BLDC motor

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL3650I-V1 8~26V 12V 5300 0.46 239.794 4600 1.53 11.35 793.8712 2.5
BL3650I-V2 8~26V 24V 13800 0.32 306.12 11360 1.99 35.69 1058.155 3
BL3650I-V3 8~26V 24V 4327 0.18 459.18 3714 1.01 17.49 3232.627 2.5

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation,

Low noise, Low EMI, Long life 3000-50000hrs

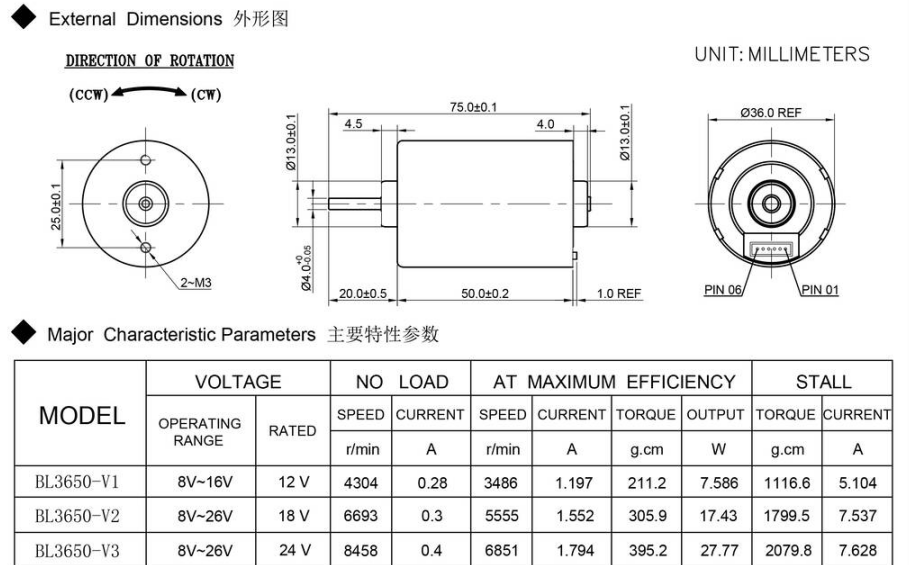

BL3650 BL3650I B3650M Drawing
bl3650i 36mm brushless motor

Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension

can be changed to meet customer specific requirement.
