Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

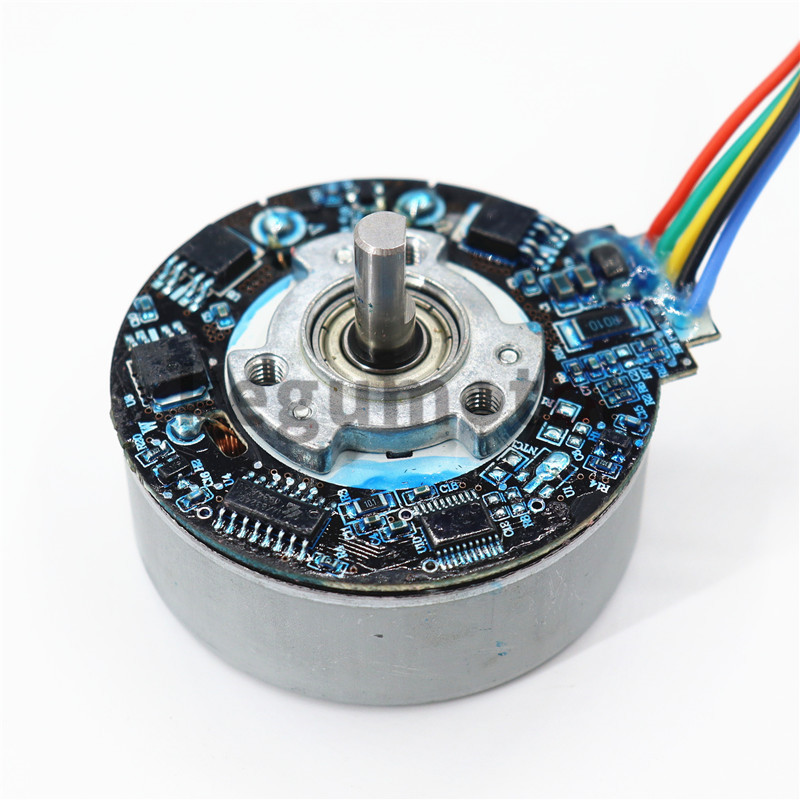

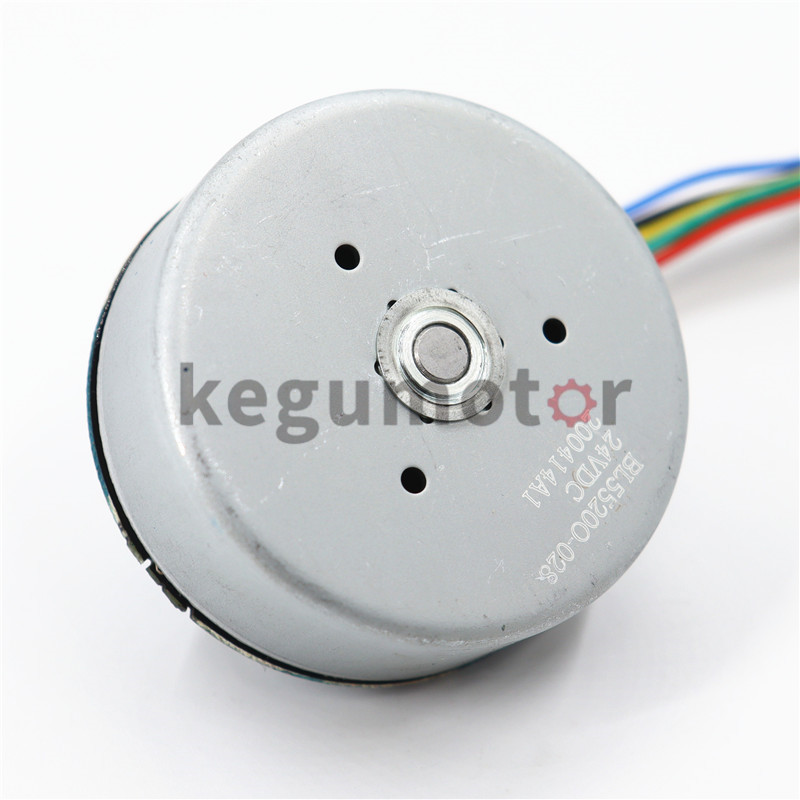

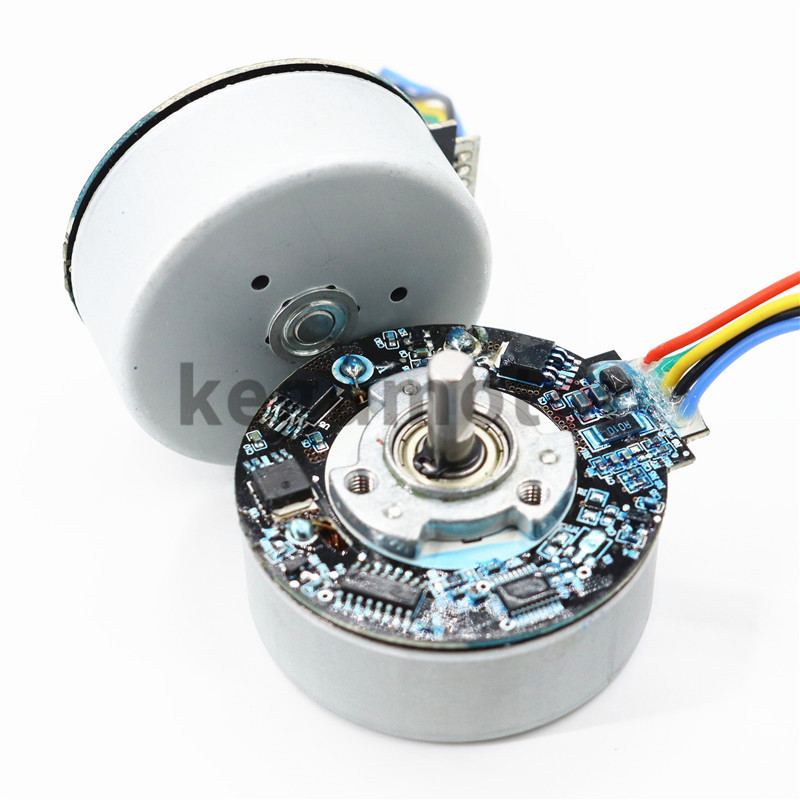

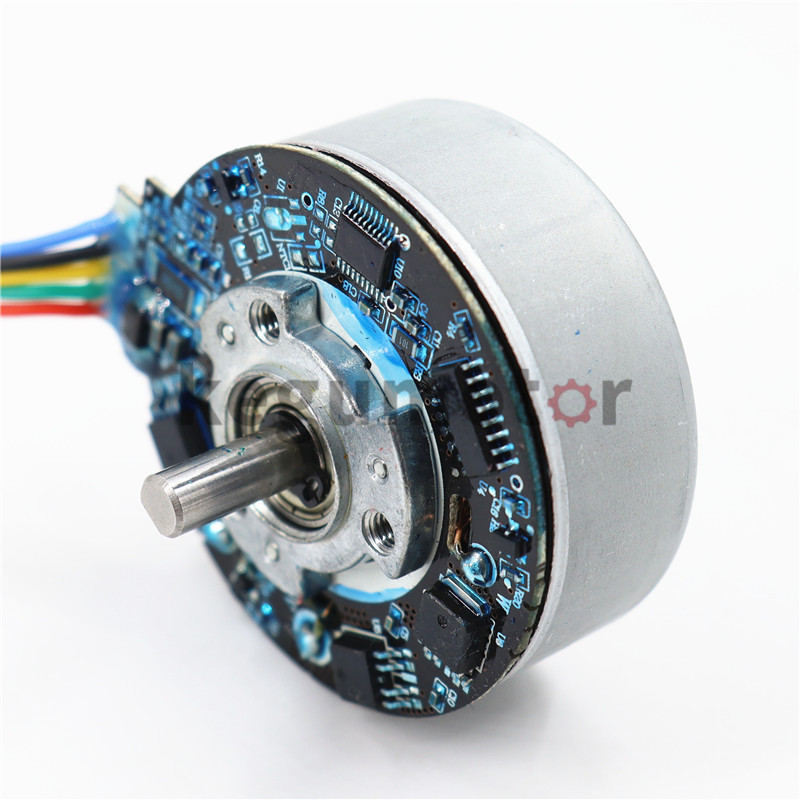

BL5520 24v bldc motor outrunner brushless motor with hall sensor for massage gun

Specifications:

• Size: Ø55.0* 20.0mm

• Built-in driver (Inbuilt controller with hall-effect sensor)

• PWM pulse wide speed range

• Clockwise/counter-clockwise rotation

• FG speed feedback signal

• Low EMC

• Low noise

• Long life: 20000hrs Min.

• Over-current protection

• Over-voltage protection

• Under-voltage protection

• OEM and ODM orders are welcome

• The design can be customized

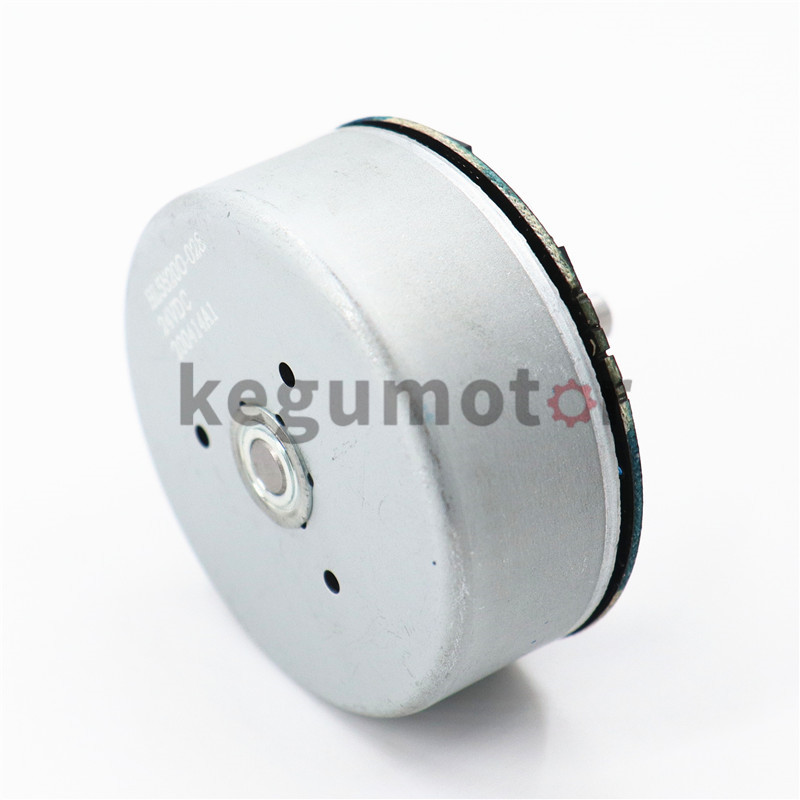

OD 55mm out rotor small bldc brushless dc motor

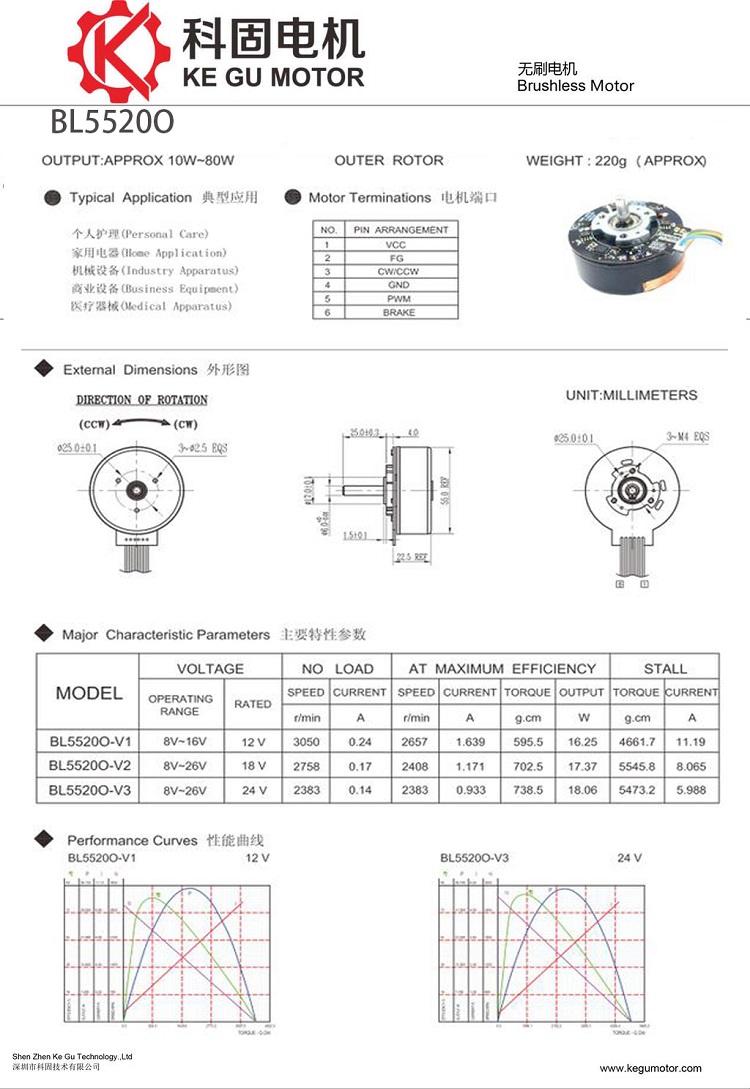

BL5520 BL5520O bldc motor drawing and data sheet:
