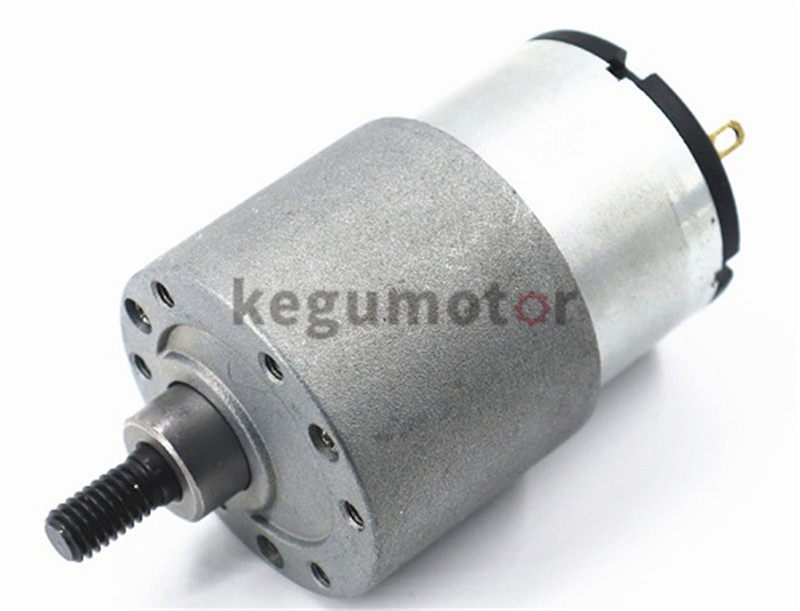

Product model: KG-37B520
Rated voltage: 3-24 (V)
Rated speed: 3-200 (RPM)
Rated torque: 0.01-2 (NM)
Rated current: 0.03-1.0 (A)
Rated power: 0.1-10 (W)
Efficiency: 80 (%)
Dimensions: φ37 (mm)
Application:
Household Appliances:Electric curtain，Intergrated cooker，Coffee maker, Intelligent closestool,Sweeping robot,
Dish-washing Machine,Cooker hood, Electric lock.
Hair Care：Hair Curler, Massager, Electric Hair Clipper
Office Equipment:Shredder, Printer, Projector, Counting Machine
Medical Equipment：Massage chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair
Industrial Equipment: Water，electrical and gas valve, Air switch, Pump, Automatic door, Automatic lubrication equipment.
Business Equipment:Vending machines, Parking locks, ATM machines, Stage lights.
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
Drawing of KG-37B520 37mm dc spur gear motor
Gear ratio and length L of gearbox
Number of stages
2
3
4
5
6
Gear ratio
6
16.7
45
110
330
10
23.3
50
121
350
30
60
135
405
70
150
420
90
180
450
100
210
490
250
540
270
630
300
810
Length of gearbox L(mm）
19
21.5
24
26.5
29
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-37B520-10 |
12 |
1100 |
0.3 |
865 |
1.0 |
0.04 |
4.4 |
0.19 |
3.7 |
|
KG-37B520-30 |
12 |
280 |
0.1 |
230 |
0.6 |
0.14 |
3.5 |
0.78 |
2.6 |
|
KG-37B520-50 |
6 |
152 |
0.17 |
125 |
0.85 |
0.14 |
1.9 |
0.78 |
3.5 |
|
KG-37B520-90 |
12 |
60 |
0.06 |
48 |
0.32 |
0.39 |
2.0 |
1.75 |
1.5 |
|
KG-37B520-110 |
12 |
50 |
0.1 |
40 |
0.22 |
0.195 |
0.82 |
1.22 |
1.05 |
|
KG-37B520-150 |
24 |
20 |
0.03 |
16 |
0.06 |
0.085 |
0.13 |
0.49 |
0.1 |
|
KG-37B520-270 |
12 |
11 |
0.035 |
9 |
0.1 |
0.58 |
0.5 |
2.94 |
0.4 |
|
KG-37B520-350 |
12 |
15.5 |
0.1 |
13 |
0.22 |
0.58 |
0.8 |
3.5 |
1.05 |
|
KG-37B520-490 |
24 |
12 |
0.05 |
11 |
0.1 |
0.98 |
1.2 |
3.9 |
0.7 |
|
KG-37B520-630 |
12 |
5 |
0.04 |
4 |
0.11 |
0.98 |
0.4 |
4.8 |
0.52 |
|
KG-37B520-810 |
24 |
4 |
0.02 |
3 |
0.04 |
0.39 |
0.12 |
2.5 |
0.1 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
