Micro Worm Gear Motor

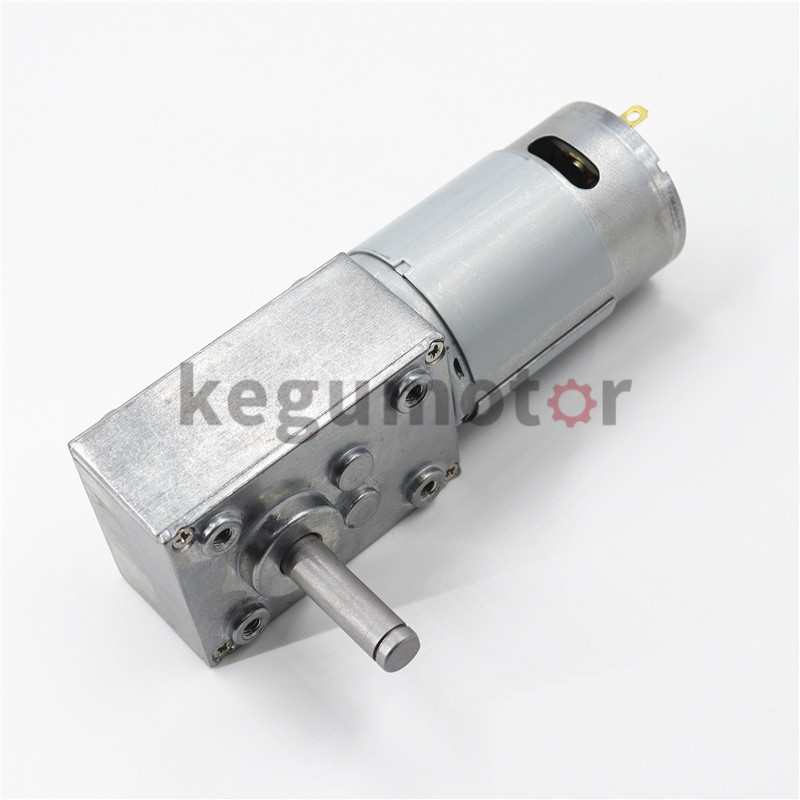

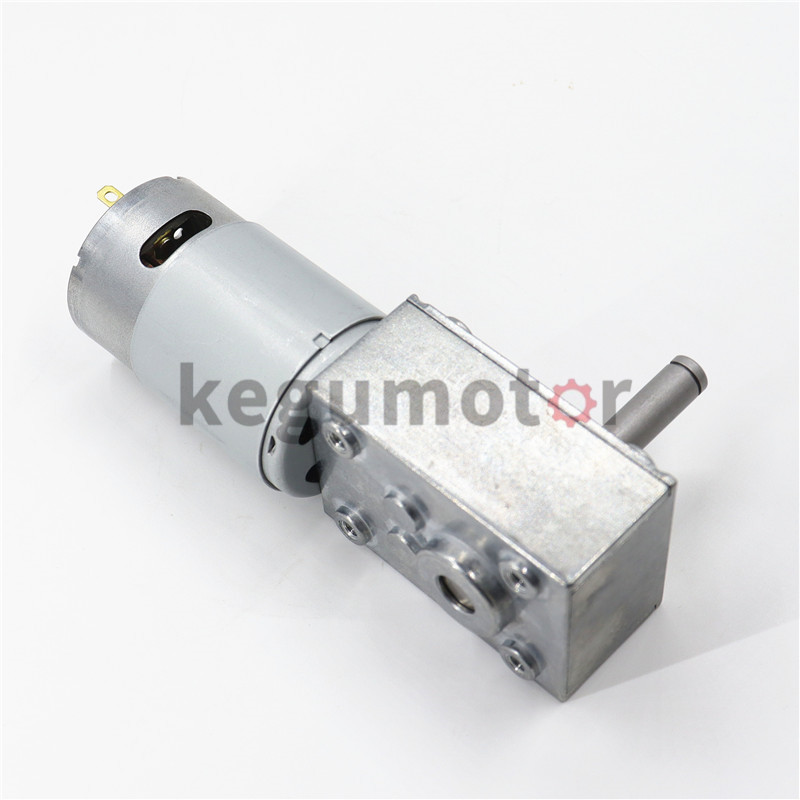

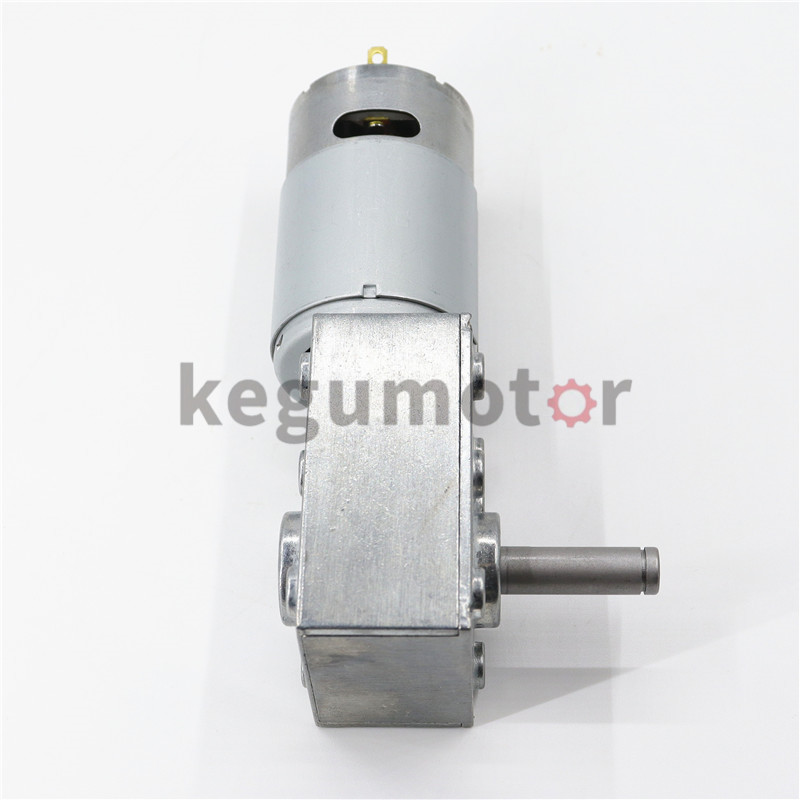

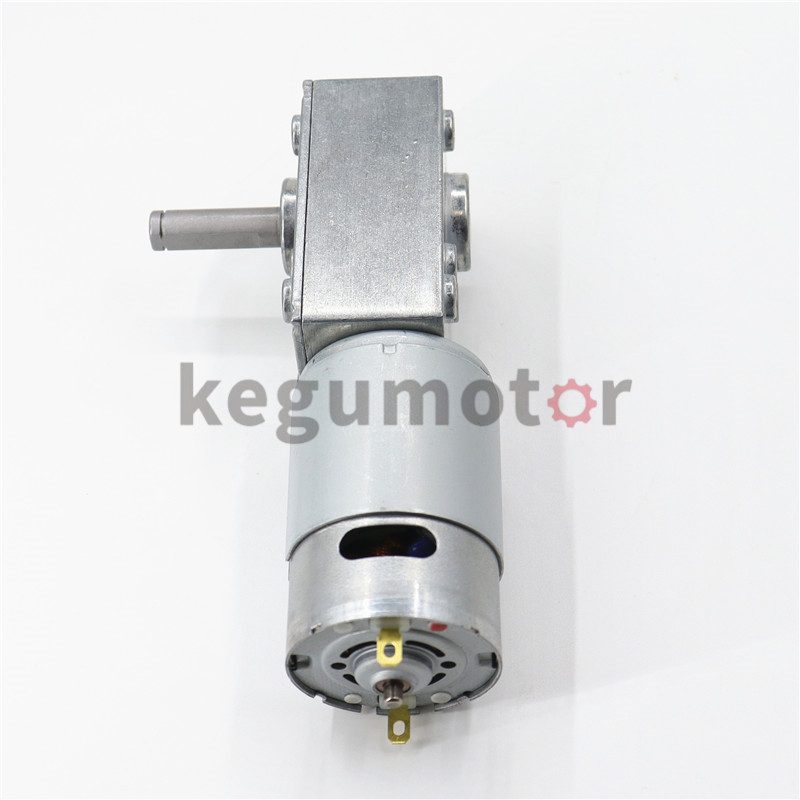

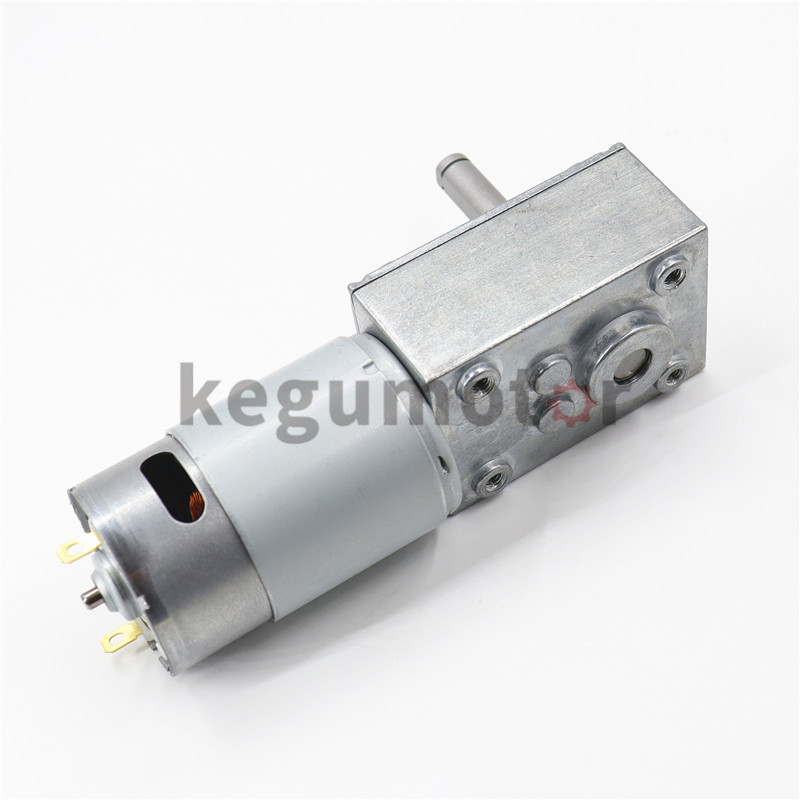

KG-5840Z555 dc worm gear motor

Model:KG-5840Z555 dc worm gear motor
Gearbox:58mm worm gearbox
Dia：58mm Motor：KRS-555 dc motor
Brand:Kegu Motor
Product description: 5840-555 small square worm gearbox carbon brush dc motor|Kegu motor, dc worm gear motor, worm gear drive,worm gear motor,worm gear reducer, small worm gear motor,worm gearbox, micro worm gearbox,40mm
INQUIRY

5840-555 small square worm gearbox carbon brush dc motor

58mm worm gear motor

Diameter:Motor 36mm

Length:58+57mm

Characters:
1.Small size dc gear motor with low speed and big torque
2.40*58mm gear motor provide 2.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr

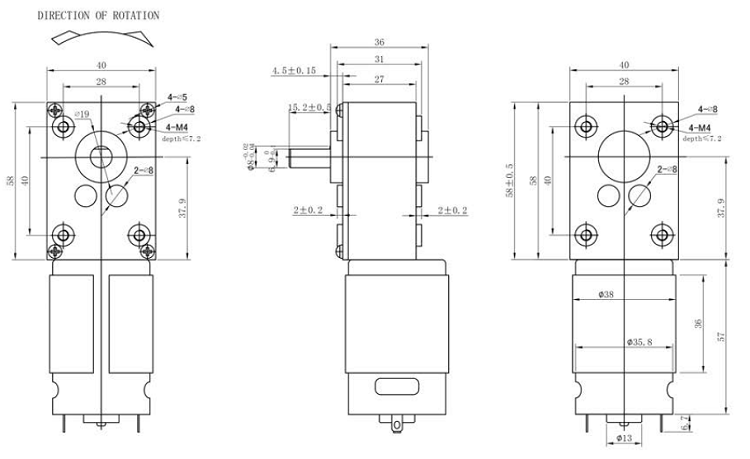

Drawing of KG-5840Z555 wrom gear motor

58MM WORM GEAR MOTOR

Application:

Household Appliances:Electric curtain，Intergrated cooker，Coffee maker, Intelligent closestool,Sweeping robot, Dish-washing Machine,Cooker hood, Electric lock.

Hair Care：Hair Curler, Massager, Electric Hair Clipper

Office Equipment:Shredder, Printer, Projector, Counting Machine

Medical Equipment：Massage chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair

Industrial Equipment: Water，electrical and gas valve, Air switch, Pump, Automatic door, Automatic lubrication equipment.

Business Equipment:Vending machines, Parking locks, ATM machines, Stage lights.

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

Data Sheet

MODEL	VOLTAGE	NO- LOAD		AT MAXIMUM EFFICIENCY				STALL TORQUE			GEAR RATIO	LENGTH OF GEAR BOX(L)	MATCH THE MOTOR	LENGTH OF MOTOR(L1)
	VOLTAGE	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT	GEAR RATIO	LENGTH OF GEAR BOX(L)	MATCH THE MOTOR	LENGTH OF MOTOR(L1)
	V	r/min	A	r/min	A	mN.m	Kg.cm	mN.m	Kg.cm	A		mm		mm
KG-5840Z555-54	12	272	0.1	237	0.3	1400	1.45	1100.0	11.80	1.90	54	58.2	KRS-555	57
KG-5840Z555-326	24	15	0.1	14.0	0.5	1960.0	20.0	4900.0	50.0	2.10	326	58.2	KRS-555	57
