KG-1218FN20 12mm worm gear motor

  • Model: KG-1218FN20 12mm worm gear motor
  • Gearbox:12mm wrom gearbox
  • Voltage: 1.5~12V
  • Brand:Kegu Motor
  • Product description: All metal machining hobbing process, high torque, low power consumption, low noise, smooth transmission, no resonance. Customized reduction ratio and output shaft. Kegumotor provide 12mm DC Worm Gear
  • INQUIRY

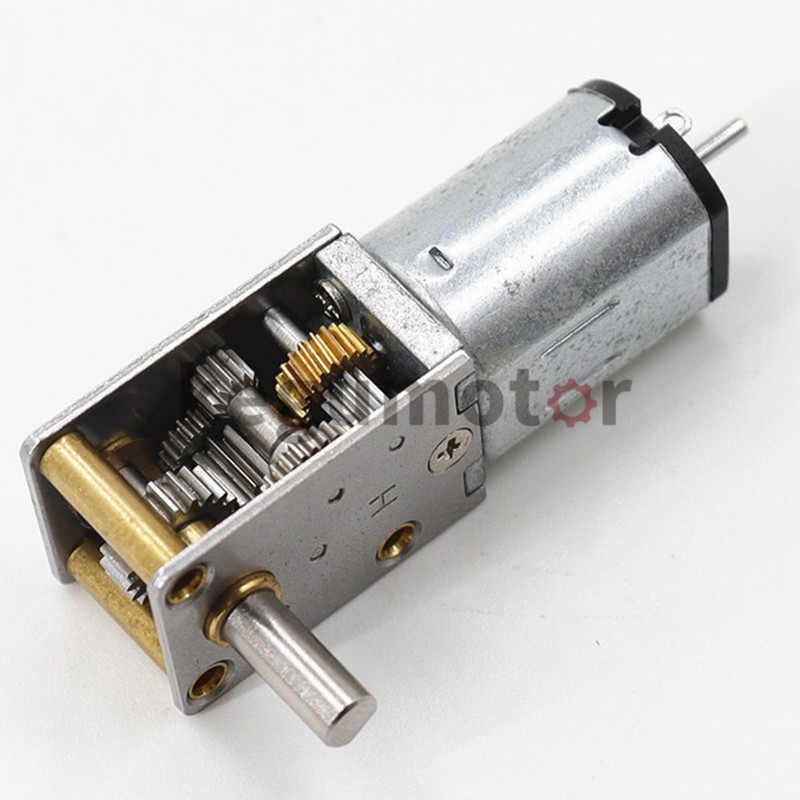

12mm small square worm gearbox carbon brush dc motor

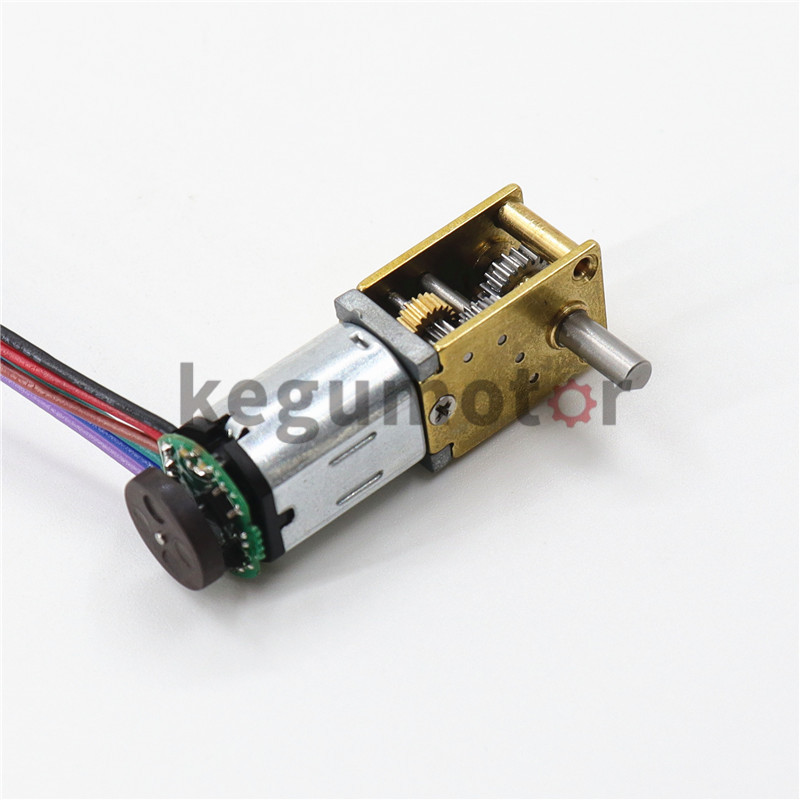

12mm worm gear motor12mm worm gear motor with encoder


Key Features:

1. Bi-direction;
2. Metal Brush And Carbon Brush DC Motor;
3. Spur Gears;
4. Zinc Die Cast Gear Case;
5. Sleeve Bronze Bushings

This worm gear motor is assembled by a FF-N20 brushed dc motor with a worm gear(worm gearbox reducer)

Model:KG-1218FN20
Diameter:Motor 12mm
Length:18+15.5mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.12*18mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,3ppr
5.Reduction Ratio: 26、79、138、236、603

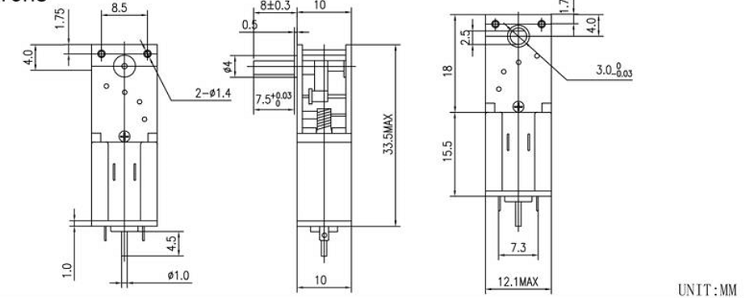

Drawing of KG-1218FN20 12mm worm gear motor


Worm gear reducer data:


Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
