1.5V 3.0V 6mm micro coreless plastic planetary geared motor for Automatic camera monito

Voltage(V):1.5V-12VOutput Power:0.01WSpeed of Revolution:50RPM



Samples:1.5V-12V , 0.01W , 50RPM


Overview
Quick Details
Warranty: 3months-1year
Place of Origin: Guangdong, China
Brand Name: kegumotor
Model Number: KG-06P10
Usage: Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Smart Lock
Certification: RoHS, ce
Type: GEAR MOTOR
Torque: 15g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 700rpm
Continuous Current(A): 0.01A
Efficiency:IE 1
Supply Ability
Supply Ability60000 Piece/Pieces per Day
Packaging & Delivery
Packaging DetailsStandard carton,1000pcs/carton.Can be customized per requirements.PortShenzhen/HongkongPicture Example:
Lead Time:
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 20 To be negotiated
Product Description
6mm plastic planetary gearbox with 0610 micro dc motor
Coreless 6mm DC motor plastic gear 12v electric motor for door-lock
6mm plastic gear motor
Volt
2.5v
No Load Speed
104rpm
Rated Speed
56rpm
Rated Torque
15g.cm
Application
Robot , door lock , toy, cabinet lock
6mm planeteary gear motor
SPECIFICATION:

1. Voltage: DC 1.5V
2. No load speed: 45±10%rpm
3. No load current: 0.032A
4. Diameter 6mm, length 20mm, shaft dia 1.5mm
5. Material: plastic gear and metal DC motor
6. Weight: 4g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)

  • Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock
6mm gear motor

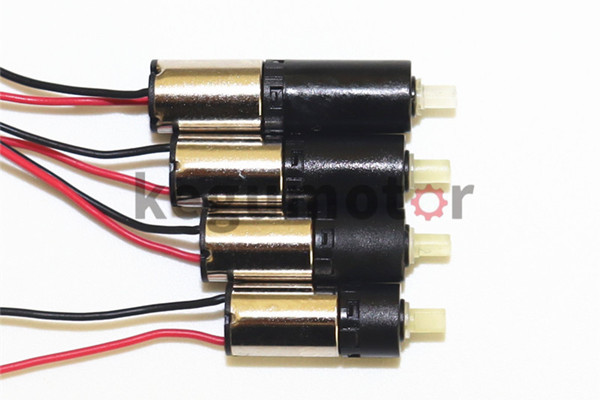

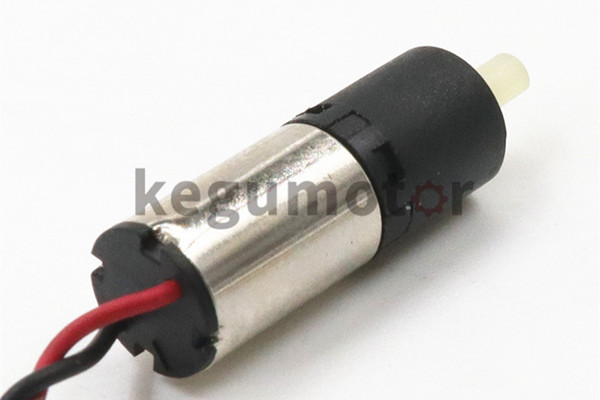

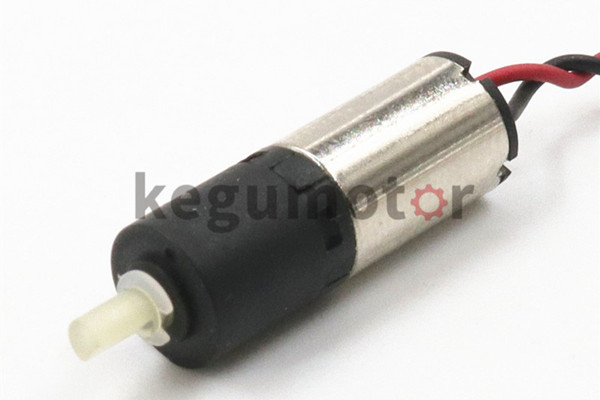

Detailed Images
This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.The control system of various locks and fingerprint lock can be controlled by mobile APP.


Size Information
Drawing of 6mm plastic planetary gear motor
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
