Ø 12mm Micro DC Gear Motor

  • KG-12FN50 12mm 6v metal gear motor
  • KG-12FN50 12mm 6v metal gear motor
  • KG-12FN50 12mm 6v metal gear motor
  • KG-12FN50 12mm 6v metal gear motor
  • KG-12FN50 12mm 6v metal gear motor
KG-12FN50 12mm 6v metal gear motorKG-12FN50 12mm 6v metal gear motorKG-12FN50 12mm 6v metal gear motorKG-12FN50 12mm 6v metal gear motorKG-12FN50 12mm 6v metal gear motor

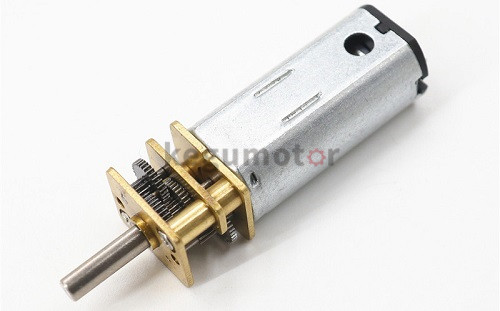

KG-12FN50 12mm 6v metal gear motor

  • Model: KG-12FN50 12mm 6v metal gear motor
  • Gearbox:12mm metal gearbox
  • Voltage: 1.5~12V
  • Brand:Kegu Motor
  • Product description: Shen Zhen Ke Gu Technology Company produces and sells 12mm metal gear motor,10mm gear motor,12mm spur gear motor,12mm dc motor,12mm metal gearbox and electric motors with metal gearboxes. Rated voltag
  • INQUIRY

n50 12mm metal gear motor

Product description

Model:KG-12FN50

Diameter:12mm

Length:34.1mm

Characters:
1.Small size dc gear motor with low speed and big torque
2.12mm gear motor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder, 3ppr
5.Reduction Ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、1000

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-12V

2. No Load Speed: 6-1000 rpm

3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm

5. Rated Load Current: 160 mA

Drawing of 12mm 6v micro metal dc gear motor


Performance of 12mm 6v micro metal dc gear motor

above specifications are subject to change without notice, just for reference and customizable according to requirements.
