Ø 13mm Micro DC Gear Motor

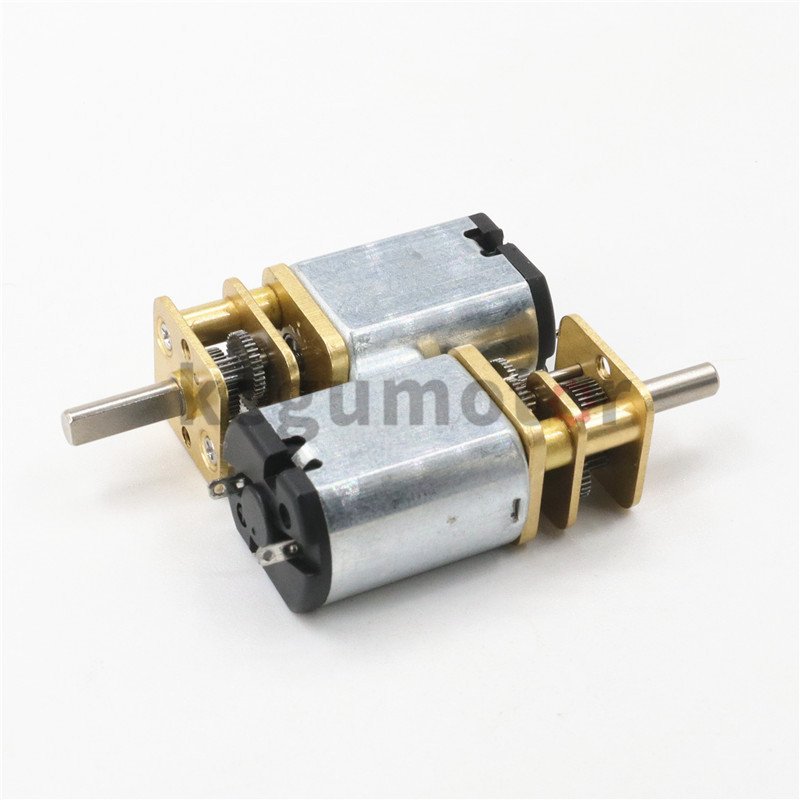

  • KG-13A030 13mm metal gear motor
KG-13A030 13mm metal gear motor

KG-13A030 13mm metal gear motor

  • Model:KG-13A030 13mm metal gear motor
  • Gearbox:13mm metal gearbox
  • Dia:13mm Motor:KFF-030 dc motor
  • 13mm metal gearbox, Kegu motor
  • Product description: 13mm dc gear motor,13mm metal gearbox,GM13-030,13mm gear motor,13mm gearbox,13mm spur gearbox,13mm dc gear motor with encoder,spur metal gear box,micro metal gearbox,gear motor,Kegu motor
  • INQUIRY


  • Model: GM13-030
  • Type: Carbon Brushed
  • Gearhead: cubic metal gear
  • Feature: 13mm gear motor
  • Product description:13mm ff 030 Micro Spur Geared DC Motor spur gear dc gear motor dc gearhead motor micro dc gearbox metal gear gear box reducer motor



Drawing of 13mm dc spur gear motor




Gear Box Data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Bearable Maximum Instant Torque
g.cm
11 2 3/1 7/1 10/1 300 600
4 20/1 30/1 35/1 50/1 63/1 86/1 500 1000
5 115/1 150/1 210/1 250/1 360/1 800 1600


Spur Geared Motor Data:

MODEL REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm W g.cm A
GM13-030-35-03485 35/1 2.0~4.0 3 485 0.16 380 0.51 130 0.51 590 2.1
GM13-030-250-0370 250/1 2.4~4.0 3 70 0.13 57 0.54 690 0.4 3750 2.4
GM13-030-210-0968 210/1 3.0~9.0 9 68 0.03 54 0.11 570 0.32 2700 0.42
