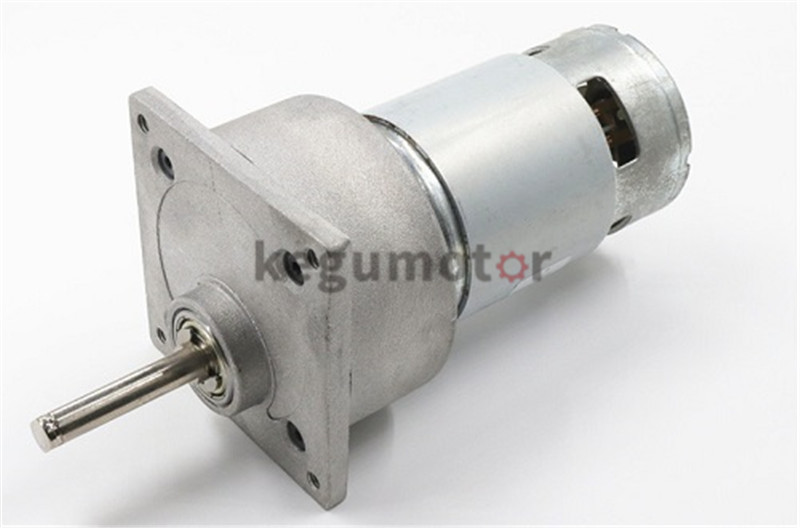

Ø 60mm Micro DC Gear Motor

KG-60B775 60mm 12V 24V metal gear motor

Model: KG-60B775 60mm 12V 24V metal gear motor
Gearbox:60mm metal gearbox
Voltage: 6~26V
Brand:Kegu Motor
Product description: Kegumotor company produces and sells 60MM metal gearboxes and DC motor,60mm spur gearboxes, rated voltage: 12-24 V, no-load speed: 150-571 rpm, and can be customized products.
INQUIRY

60mm gear motor

Model:KG-60B775

Type: Carbon Brushed
Gearhead: cubic metal gear
Feature:60mm gear motor
Product description：60mm RS-775 Micro Spur Geared DC Motor spur gear dc gear motor with encoder

micro dc gearbox metal gear gear box reducer motor

Aplication:

Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Household Appliances: Hair Curler

Financial Medical Equipment: Projector

Industrial Equipment: Air Switch

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

Drawing of 60mm dc spur gear motor

kg-60b775 drawing

Data Sheet

MODEL	V	NO LOAD		RATED LOAD				STALL
MODEL	V	SPEED rpm	CURRENT A	SPEED rpm	CURRENT A	TORQUE Nm	OUTPUT W	TORQUE Nm	CURRENT A
KG-60B775-28	12	178	0.55	150	2.95	0.96	19.8	1.65	15.6
KG-60B775-92	12	54.2	0.55	45.6	2.95	2.36	19.8	5.1	15.6
KG-60B775-28	24	71.4	0.10	60.7	0.36	0.51	3.85	1.55	1.85
KG-60B775-92	24	30.0	0.10	18.5	0.36	1.07	3.85	4.1	1.85
