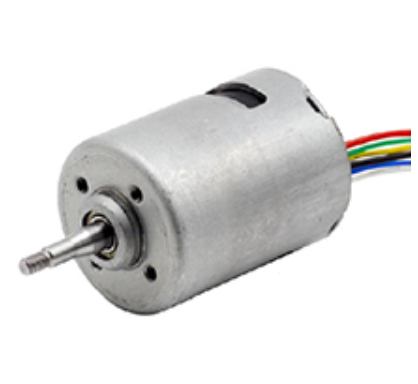

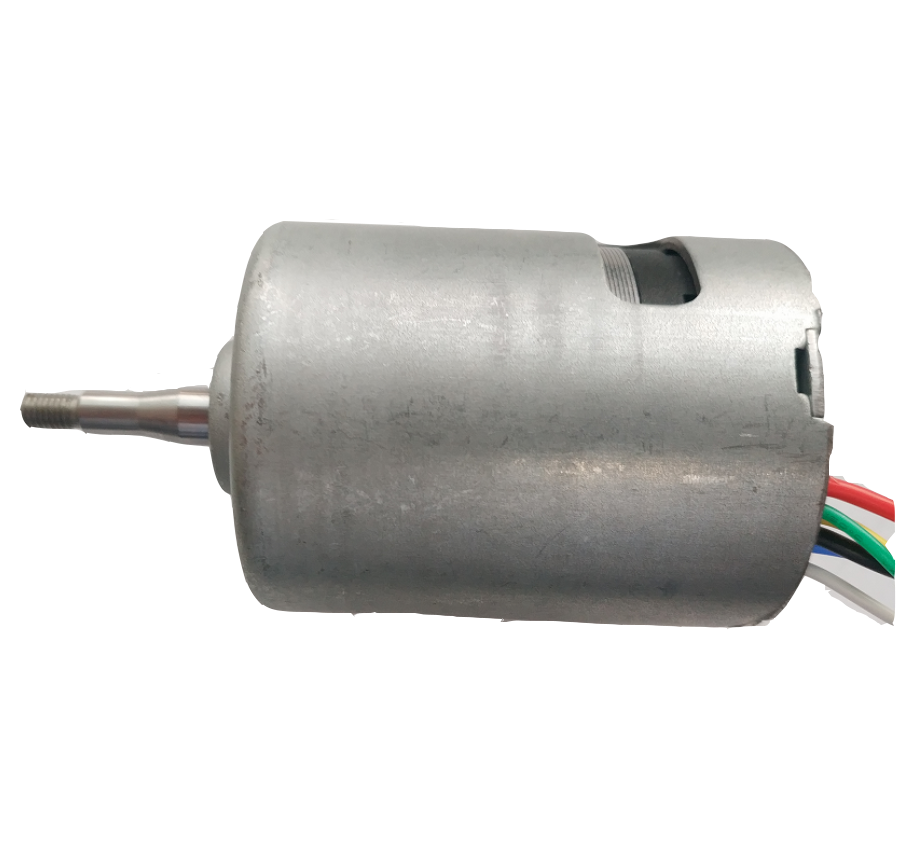

Ø 52mm Micro BLDC Brushless DC Motor

BL5265 B5265I B5265M 52mm 18v inner rotor brushless dc motor

Model: BL5265 B5265I B5265M
OD: 52mm Body Length: 65mm
Voltage: 6~26V
Brand:Kegu Motor
Product description: Kegu Motor provide OD Diameter 52mm Small Inner Rotor Brushless DC BLDC Motor,BL5265I,BL5265,B5265M,small power bldc motor,brushless motor data sheet, 52mm bldc motor can plus gearbox,12V bldc specifi
INQUIRY

BL5265I BL5265 B5265M 52mm inner rotor bldc brushless dc motor Inbuilt controller with hall-effect sensor

Size: φ52.0* 65.0mm

Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

BL5265

Output Power: 20W~110W

Weight: 600g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal

Machine

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

Personal Care: Hair Dryer, Electric Shaver, Massager

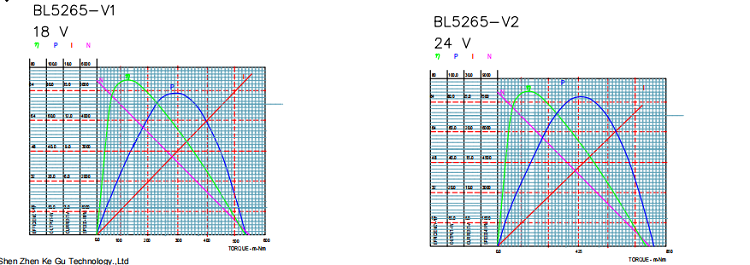

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (g.cm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (g.cm)	Current (A)
BL5265-V1	8v-26v	18	5380	0.545	814.3	4589	3.123	39.9	5482.1	17.8
BL5265-V2	8v-26v	24	7930	0.71	1195.2	6771	4.14	83.1	8180.4	24.19
BL5265-V3	8v-26v	18	4920	0.54	849.1	3976	3.16	34.7	4568.1	11.73

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

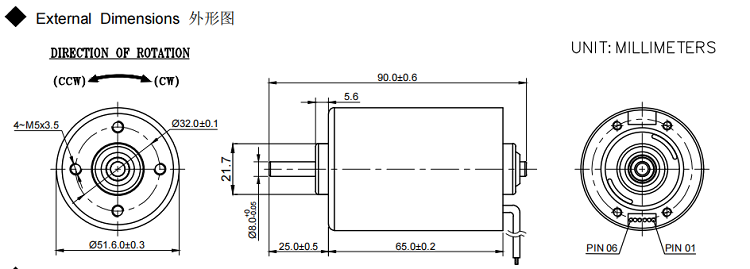

BL5265 BL5265I B5265M Outline Drawing: Usable machine screw length 3.5mm max. from motor mounting surface Unit: Millimeter
