Ø 12mm Micro DC Gear Motor

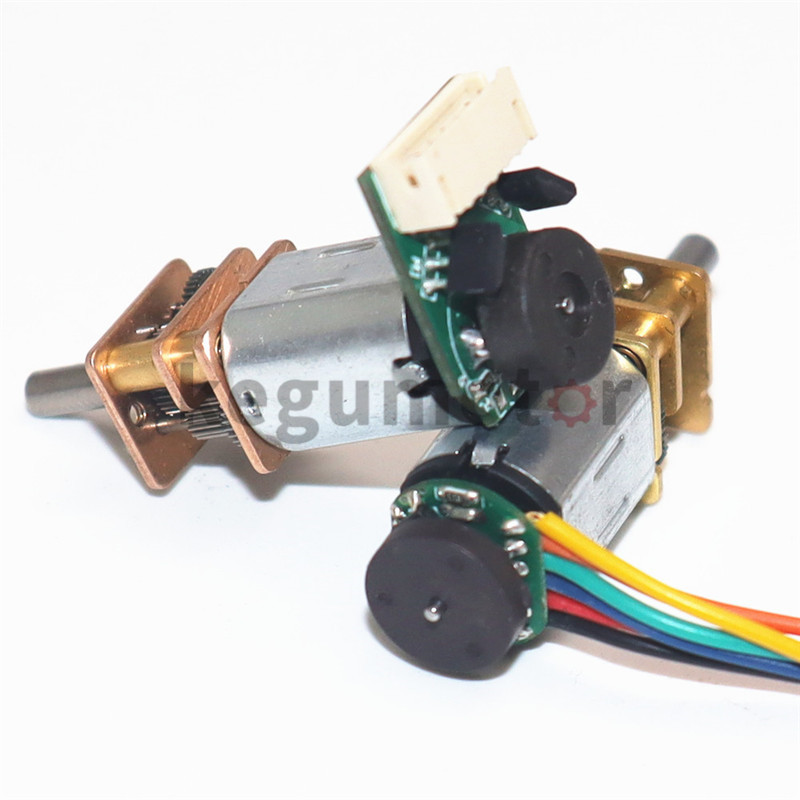

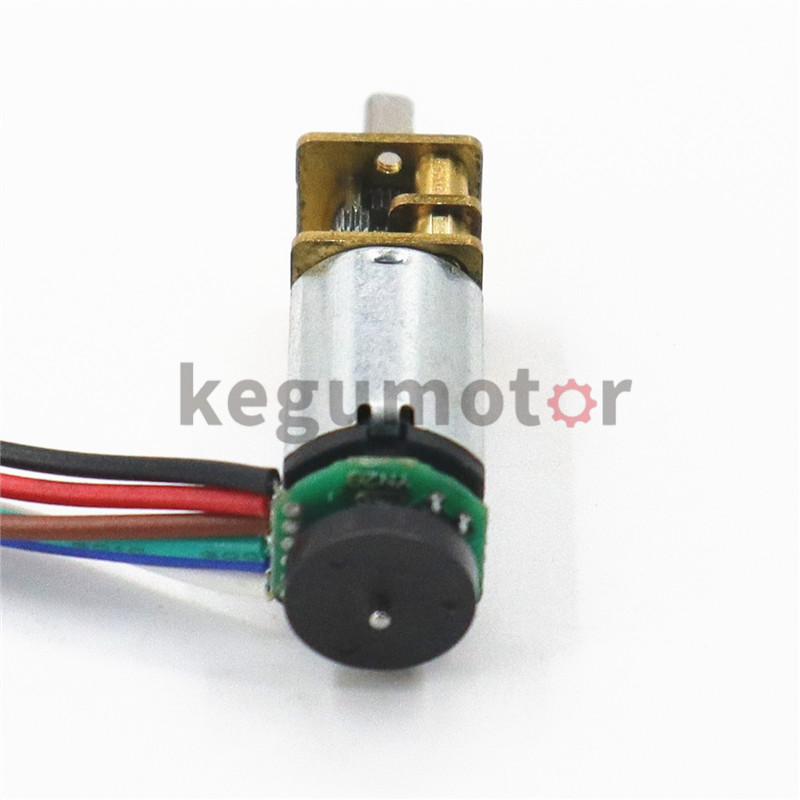

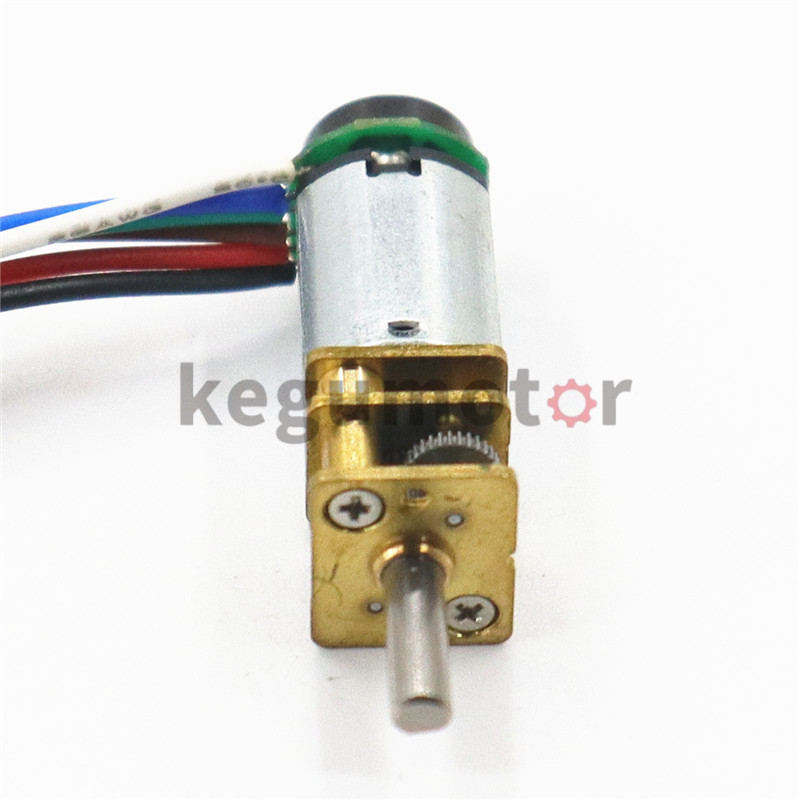

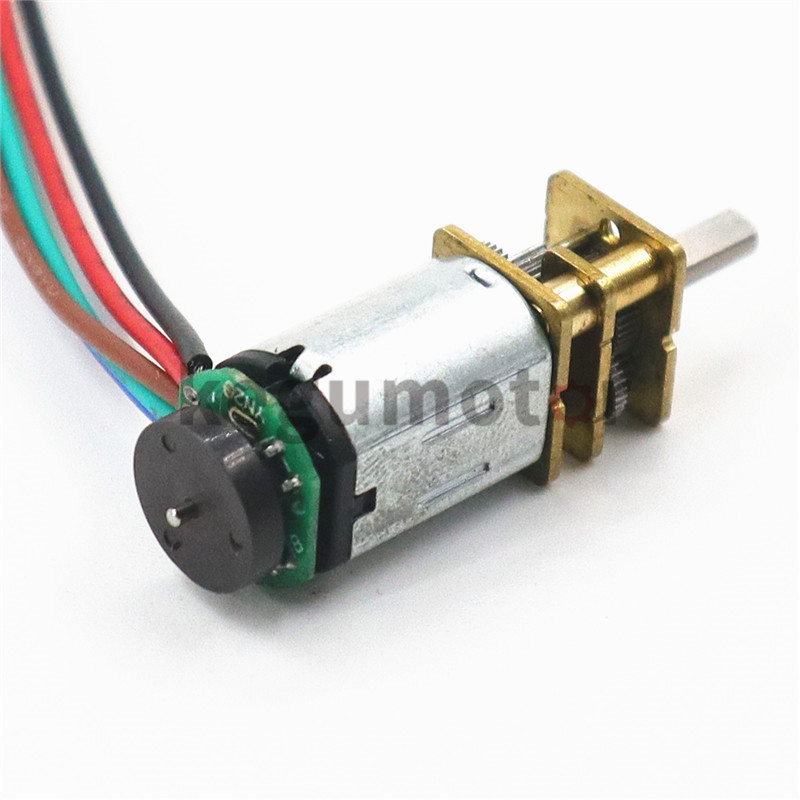

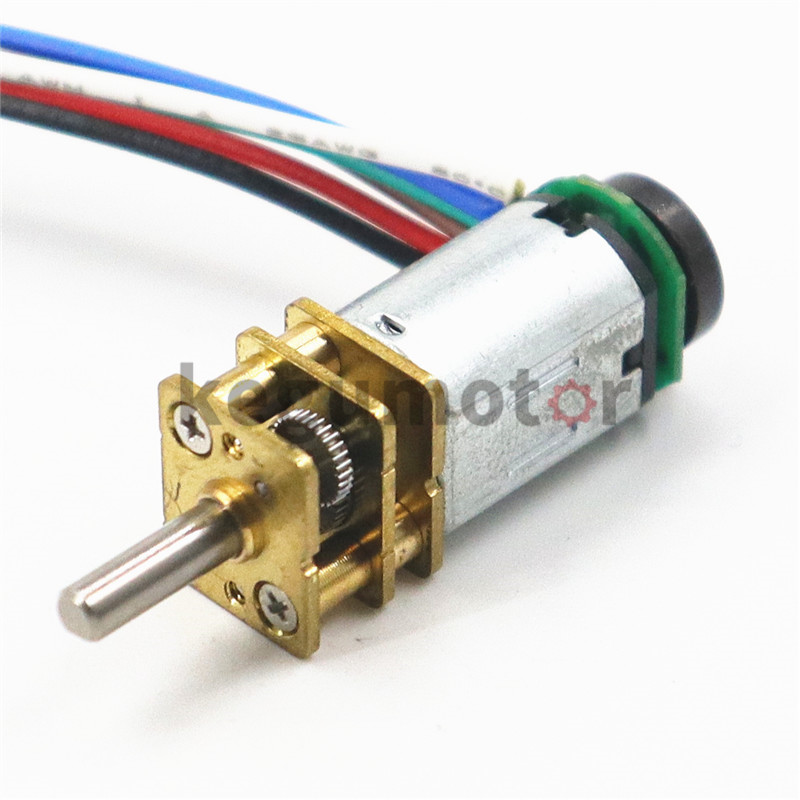

KG-12FN20 12mm metal gear motor with encoder

KG-12FN20 12mm metal gear motor with encoder

Model:KG-12FN20-EN 12mm metal gear motor with encoder
Gearbox:12mm metal gearbox
Dia：12mm Motor：KFF-N20 dc motor
12mm metal gearbox, Kegu motor
Product description: 12mm dc gear motor with encoder,GM12-N20VA-EN,GM12-N20-EN,12FN20-EN,12mm metal gearbox,GM12-N20,12mm gear motor,12mm gearbox with encoder,12mm spur gearbox,12mm dc gear motor with encoder,spur metal g
INQUIRY

N20 12mm gear motor with encoder

Model:KG-12FN20-ENGM12-N20VA-EN

Diameter:12mm
Length:24,27mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.12mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match encoder, 3ppr

5.Reduction Ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、422、1000

Application:

Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Household Appliances: Hair Curler

Financial Medical Equipment: 3Doodler ,Projector

Industrial Equipment: Air Switch

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

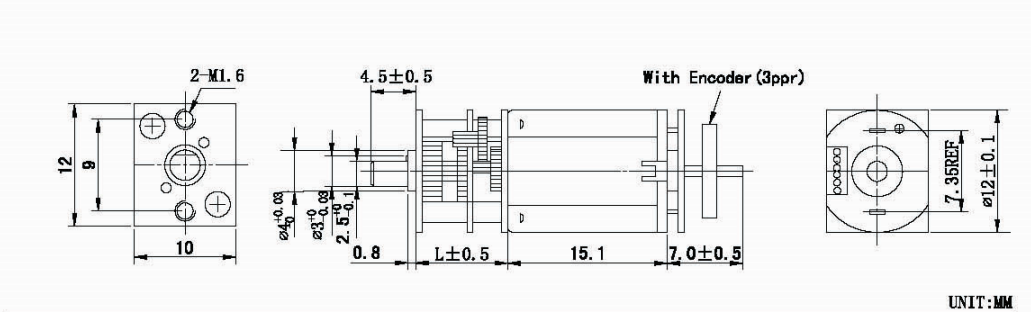

Drawing of 12mm gear motor

Gearbox Data:

Number of stages	2	4	5	7
Reduction ratio	3,5,10	17,20,30,36,50,63,100	110,150,210,250,298,380,422	1000
Gearbox length “L”mm	9	9	9	12
Breaking torque(kgf.cm)	0.6	0.9	1.2	2
Gearbox efficiency	81%	65%	59%	48%

Motor Data:

Motor model	Rated Volt.	No load		At Max Eff Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
KG-12GN20-EN-S1	3	≤50	10000	≤185	8000	2	0.2	≥8	≥350
KG-12GN20-EN-S2	3	≤80	15000	≤280	12400	3	0.4	≥12	≥520
KG-12GN20-EN-S3	3	≤110	20000	≤370	15500	4	0.6	≥16	≥700
KG-12GN20-EN-S4	6	≤25	10000	≤95	8000	2	0.2	≥8	≥160
KG-12GN20-EN-S5	6	≤40	15000	≤145	12400	3	0.4	≥12	≥250
KG-12GN20-EN-S6	6	≤60	20000	≤190	15500	4	0.6	≥16	≥320
