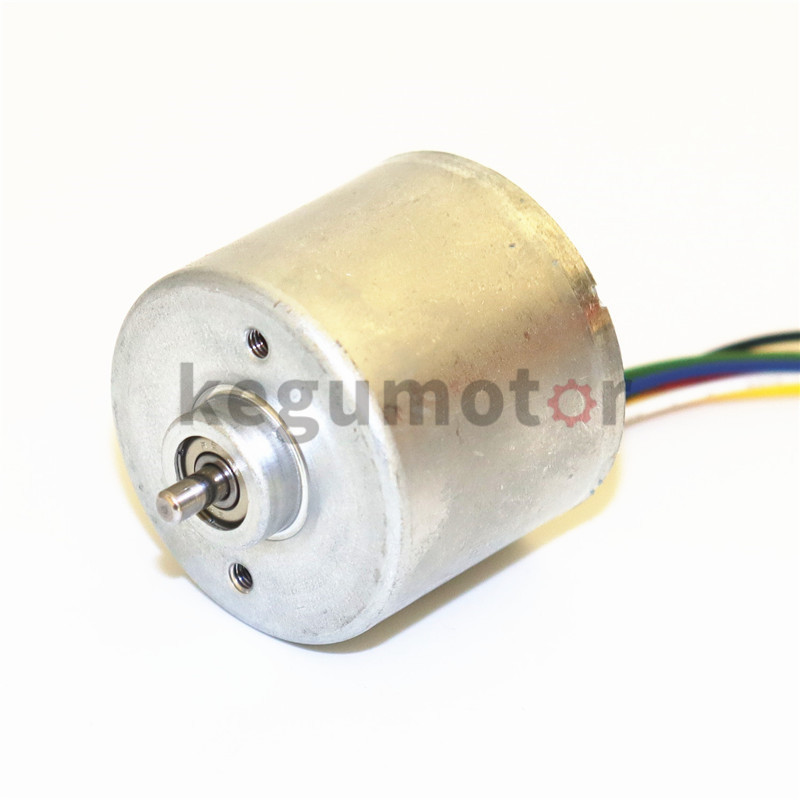

Our BL3630I BL3630 12V 24mm bldc motor specification and data sheet

Kegu Motor developed OD 36mm BLDC brushless dc motor series has bl3625i BL3626i,BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:

We show the BL3630I 36mm bldc motor data sheet and application for you,

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

Motor size: 36m diameter, 30mm length, 4.0mm shaft

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

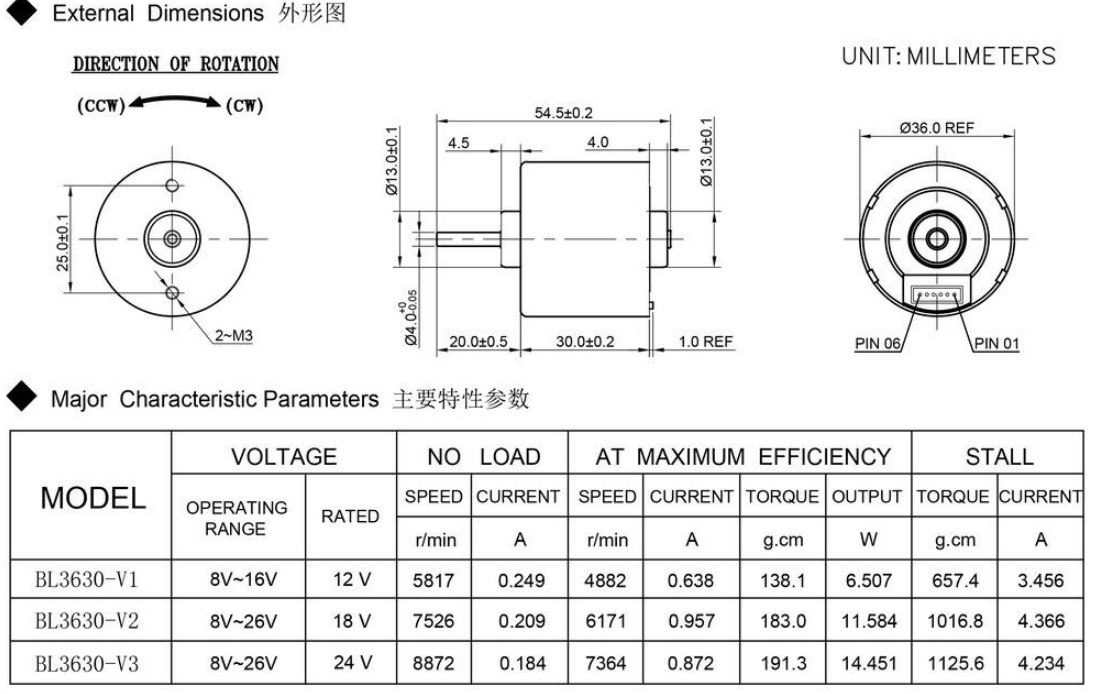

Below is drawing for your reference, if you need specification, please contact us or send email, TEL：0755-27801762 Email：sales@kegumotor.com
